32P, 19 Tooth, 24T C1 Spline Servo Mount Gear (Acetyl)

SKU:
$4.14

Finally a way to drive gears using servos! Our patented 32 pitch gears are designed to attach directly to the output spline of a servo. These gears work great in combination with our hub mounted gears to drive axles or build pan and tilt mechanisms. Manufactured from Acetyl.

20° Pressure Angle
Width = 1/8” (.125”)

Tech Tips:

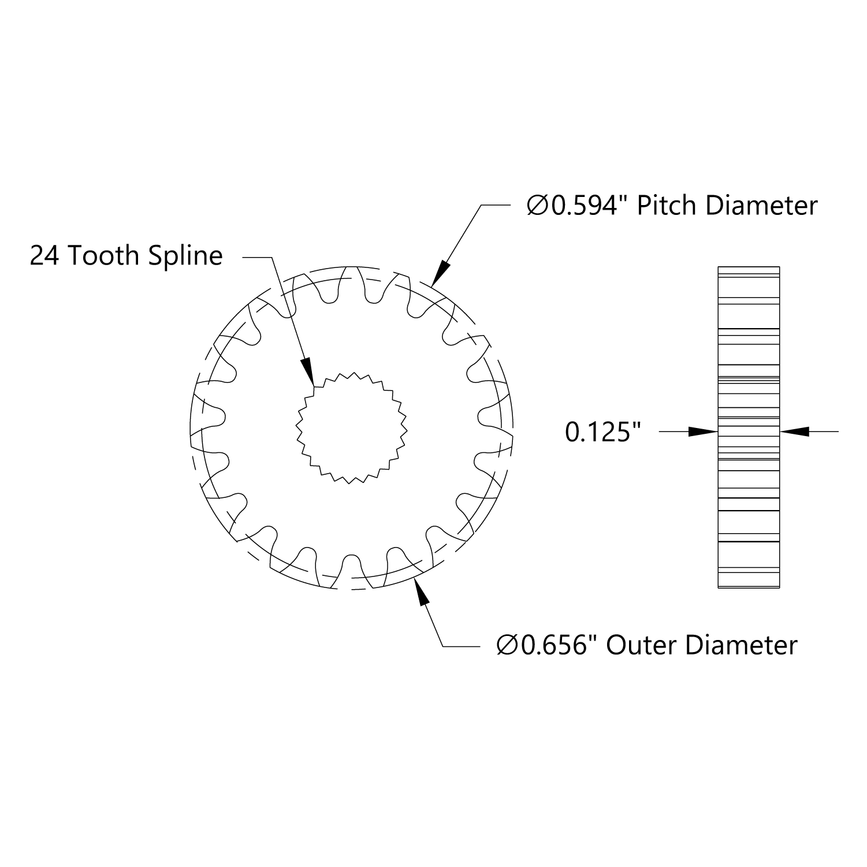

Specs

# of teeth 19T
Material Acetal
Bore C24T Spline
Pressure Angle 20°
