3411 Series 5mm HTD Pitch Aluminum Hub Mount Timing Belt Pulley (14mm Bore, 24 Tooth)

SKU:
$12.99

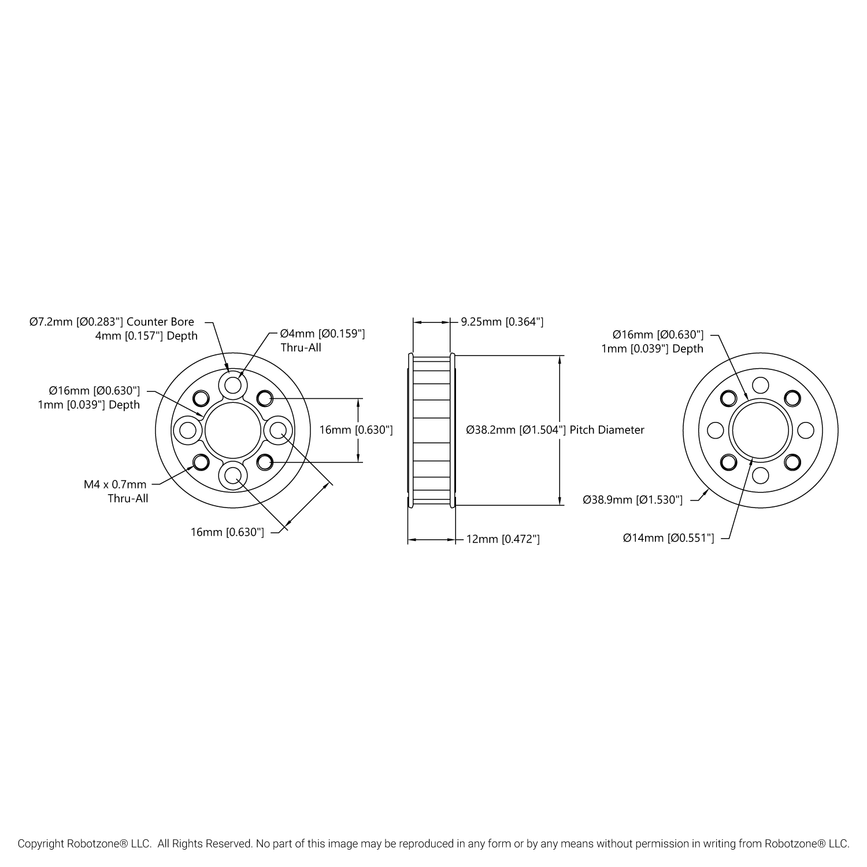

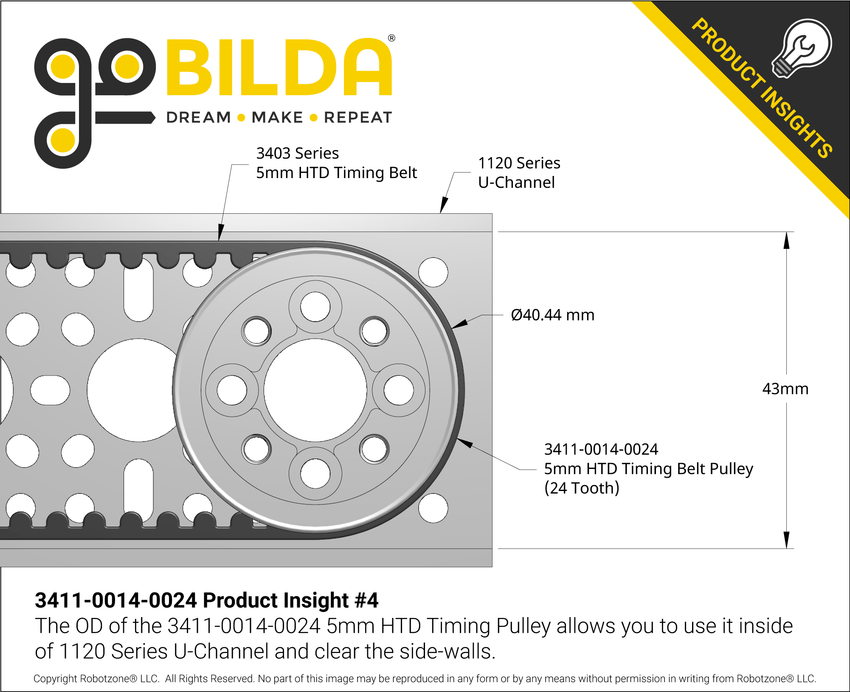

This 5mm HTD pitch timing pulley is able to accommodate 9mm width 5mm pitch timing belt between the flanges.  This is the largest diameter of 5mm pulley that’s able to run inside of 1120 Series U-Channel while providing enough clearance for the belt.  The 14mm bore is surrounded with the standard 16mm goBILDA pattern so you can install this hub pulley onto a hub.

Downloads

Specs

Weight 23g
Material Aluminum
Finish Clear Anodized
Tooth Count 24
Pitch 5mm (HTD)
