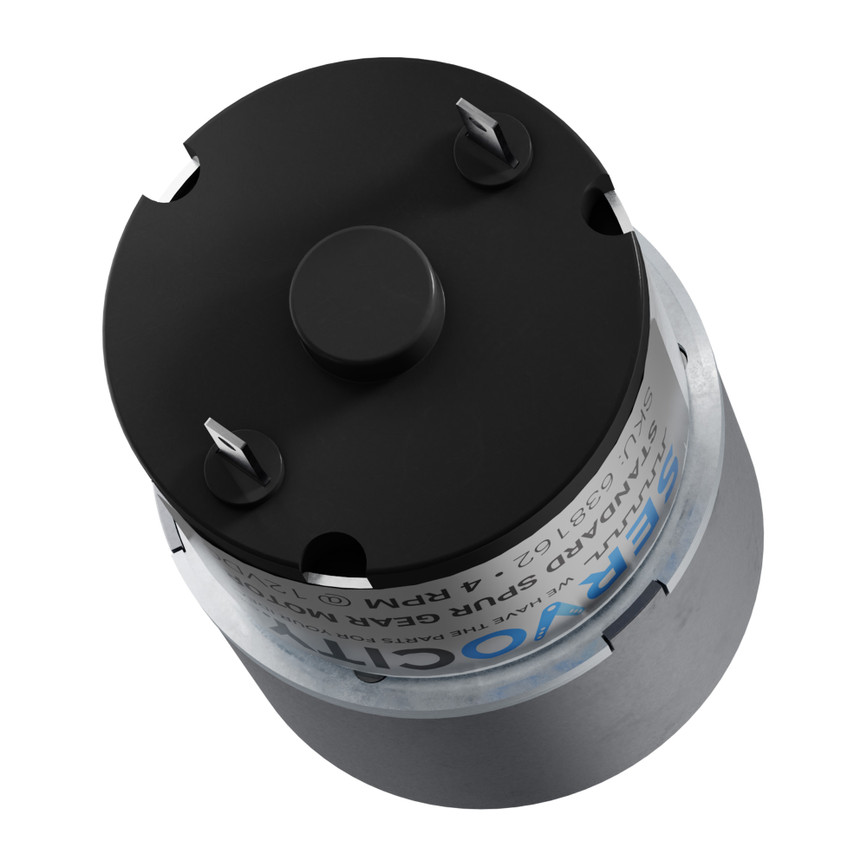

4 RPM Gear Motor

  • Shown mounted to a 90° hub bracket A using an aluminum motor mount B
  • Use our quick connect power input board (#605114) with this motor

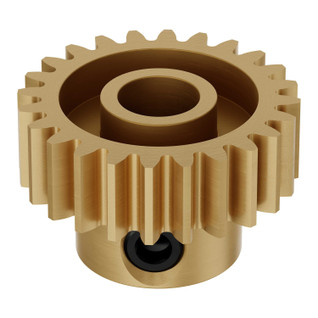

  • Driving gears with this motor is easy using our 32P (6mm bore) pinion gears and 32P hub gears
1 of 5

Be the first to review this product

Part
638162
638162
Status
In stock
This Product? Share It!
SPECS

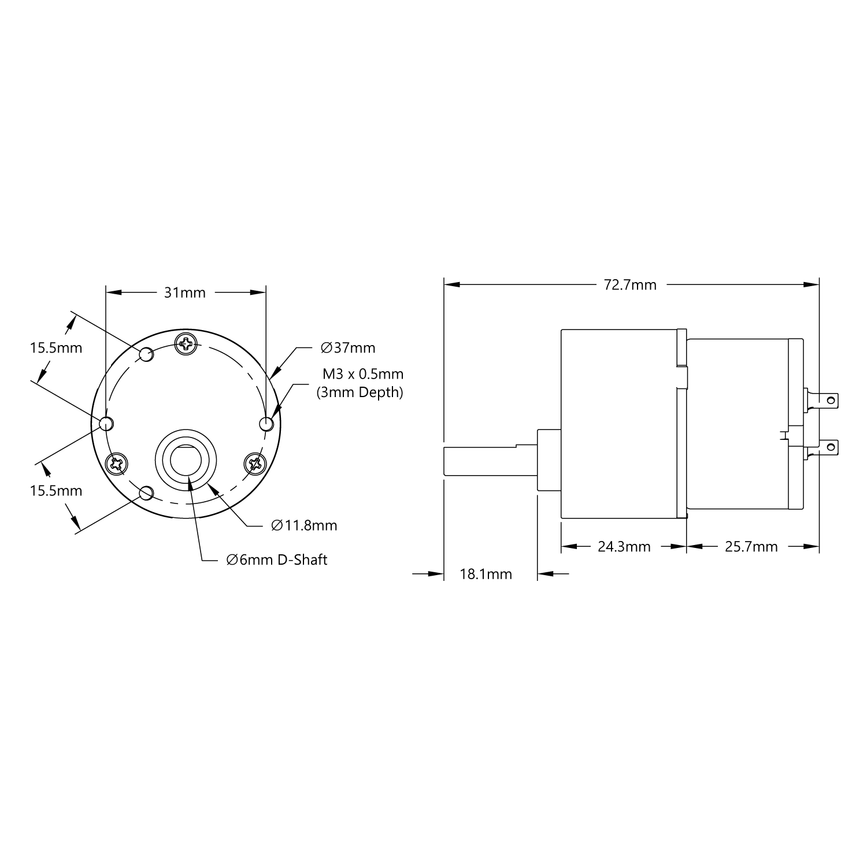

638158-638166 Schematics

Stalling this gear motor could cause gear damage.

*At Nominal Volotage

Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load)* 4 rpm
Current (No Load)* 45mA
Current (Stall)* 500mA
Torque (Stall)* 992 oz-in
Gear Ratio 900:1
Gearbox Style Straight Cut Spur
Motor Type DC
Output Shaft Diameter 6mm (0.236")
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Mounting Screw Size M3 x 0.5mm
Product Weight 133 g (4.7 oz.)
