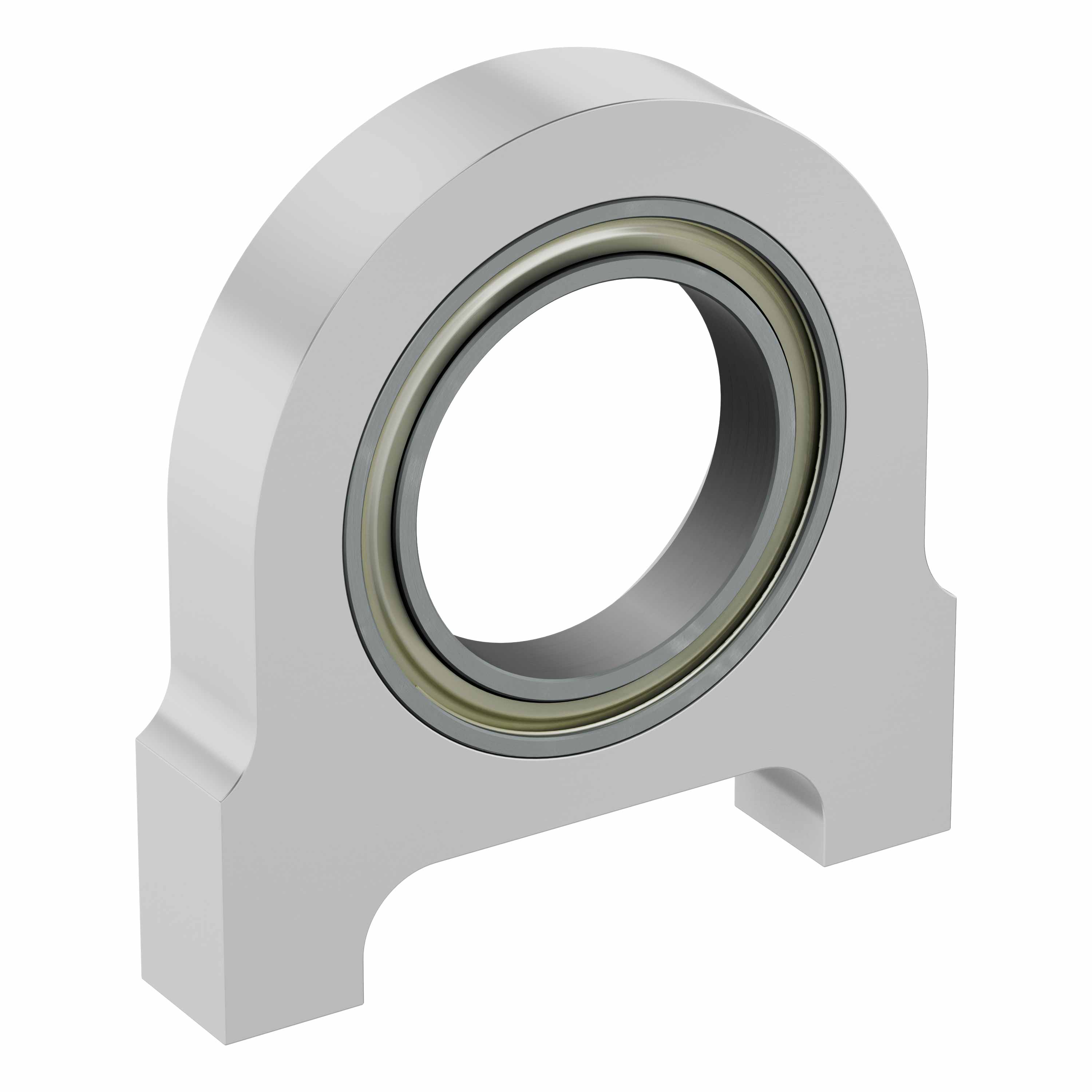

5/8" Bore Bottom Tapped Pillow Block

SKU: Build System: Actobotics

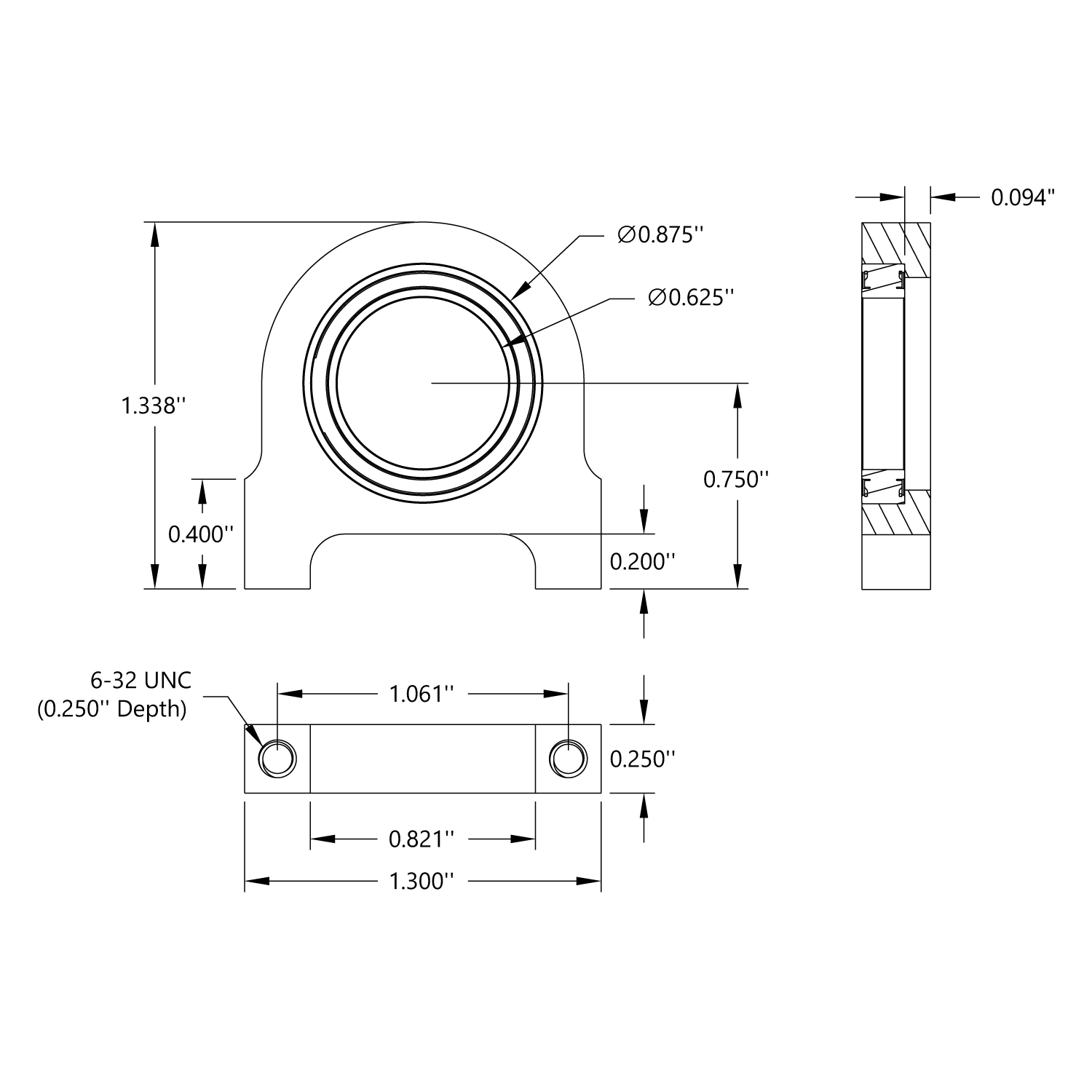

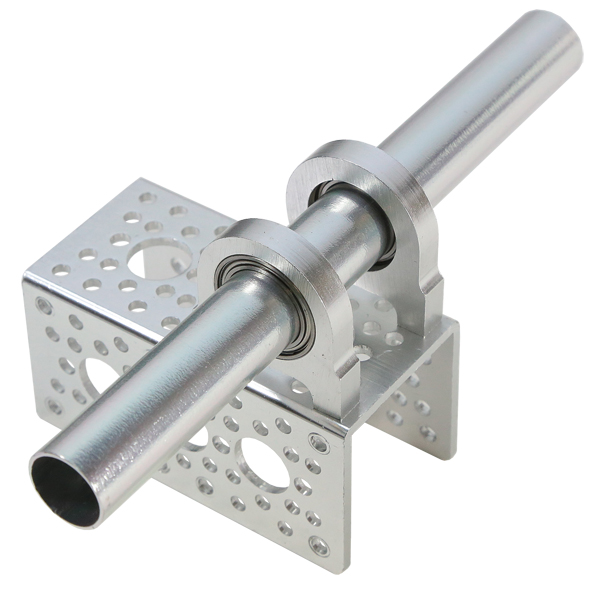

This ⅝" bore Bottom Tapped Pillow Block has threaded holes on the feet in order to easily mount to a plate, bracket or channel. The height from base to the center of the bearing is 0.75" so that, when installed on the Actobotics pattern, you’re able to easily mesh 32 or 48 pitch gears. As with all pillow blocks, the included bearing is pressed in so you don’t have to worry about it walking out during use.



Material Aluminum
Weight 0.39 oz (11g)
Static Load 130 lbs
Max RPM 20,000
Bearing ID 0.625"
Dynamic Load 202 lbs
