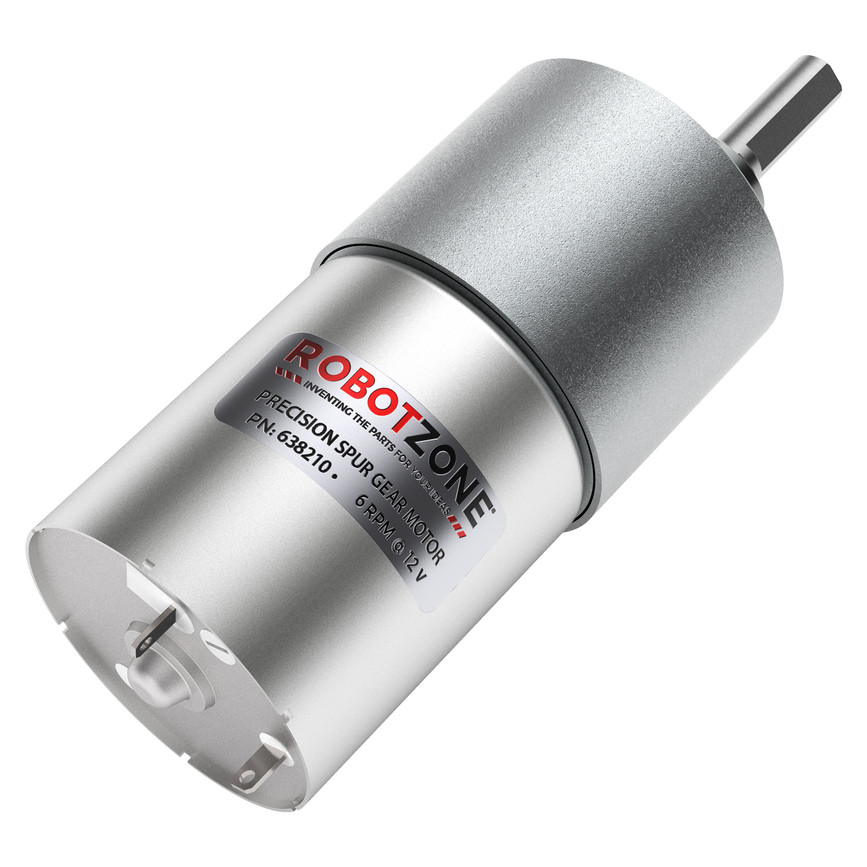

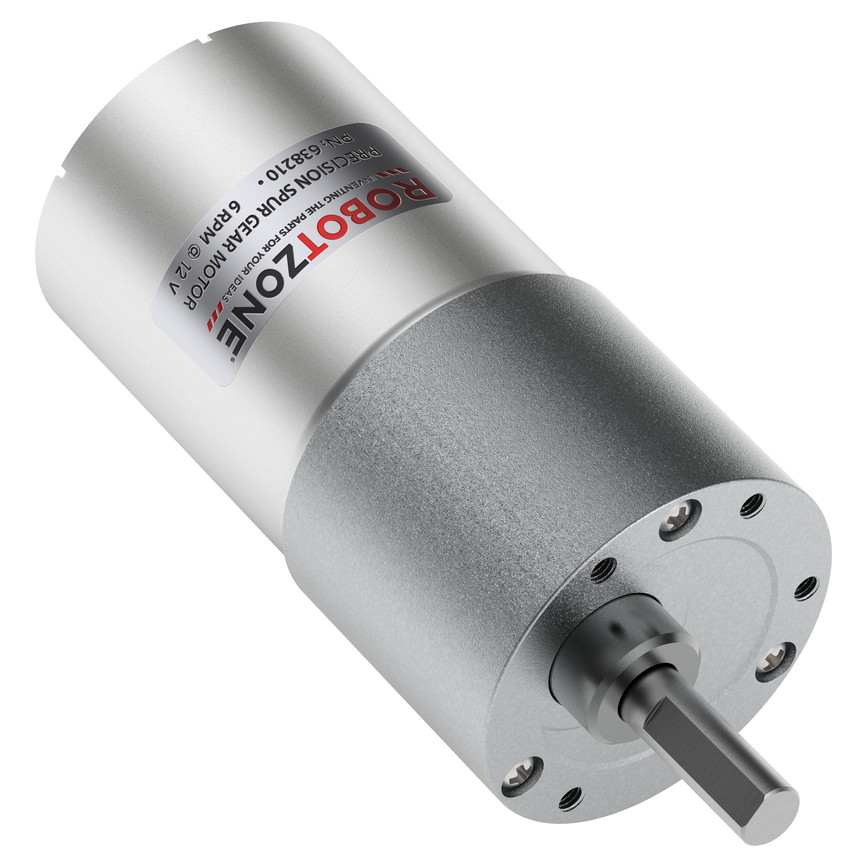

6 RPM Precision Spur Gear Motor

SKU:
$34.99

Tech Tip

Stalling this gearmotor could cause gear damage.

Downloads

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Bushing
Gear Material Brass Primary, Plastic Secondary
Steel on Subsequent Stages
Weight 8.32 oz (236g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 3V -12V
Speed (No Load @ 12VDC) 6 rpm
Current (No Load @ 12VDC) 0.08A
Current (Stall @ 12VDC) 1.3A
Torque (Stall @ 12VDC) 805 oz-in (58 kgf-cm)
Gearbox Style Straight Cut Spur
Connector Type Male Spade Terminal
Motor Brush Type Graphite
Gear Ratio 500:1
