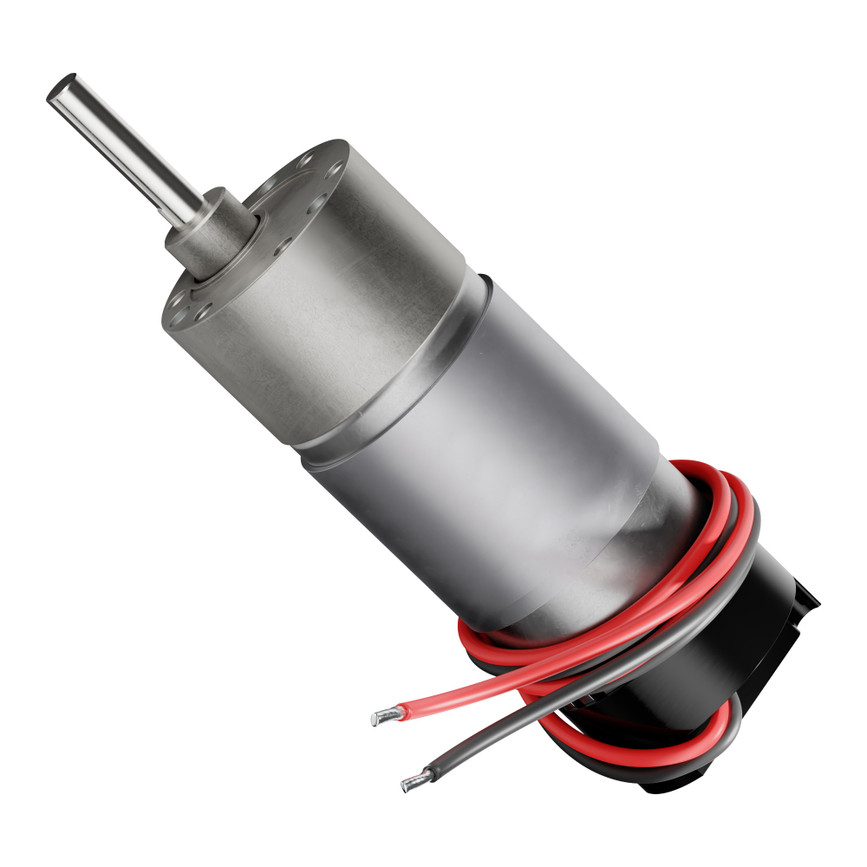

76 RPM Spur Gear Motor w/Encoder
SKU:
Build System: goBILDA
DISCONTINUED This product has been discontinued.
$26.99
This Product has been discontinued
Tech Tip
Stalling this gearmotor could cause gear damage.
Specs
| Gear Material | Metal |
|---|---|
| Wire Length | 18.50" (470 mm) |
| Weight | 12.20 oz (345.86 g) |
| Voltage (Nominal) | 12V |
| Speed (No Load @ 12VDC) | 76 rpm |
| Current (No Load @ 12VDC) | 0.5 A |
| Current (Stall @ 12VDC) | 20.7 A |
| Torque (Stall @ 12VDC) | 2,000 oz-in |
| Gearbox Style | Spur |
| Encoder: Cycles Per Revolution (Motor Shaft) | 7 |
| Encoder: Countable Events Per Revolution (Output Shaft) | 2,994.6 |
| Gear Ratio | 106.95:1 |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Sensor Input Voltage Range | 5 V |
| Encoder Sensor Output Pulse Amplitude | ~= Sensor Input Voltage |
| Output Shaft Style | D-shaft |
