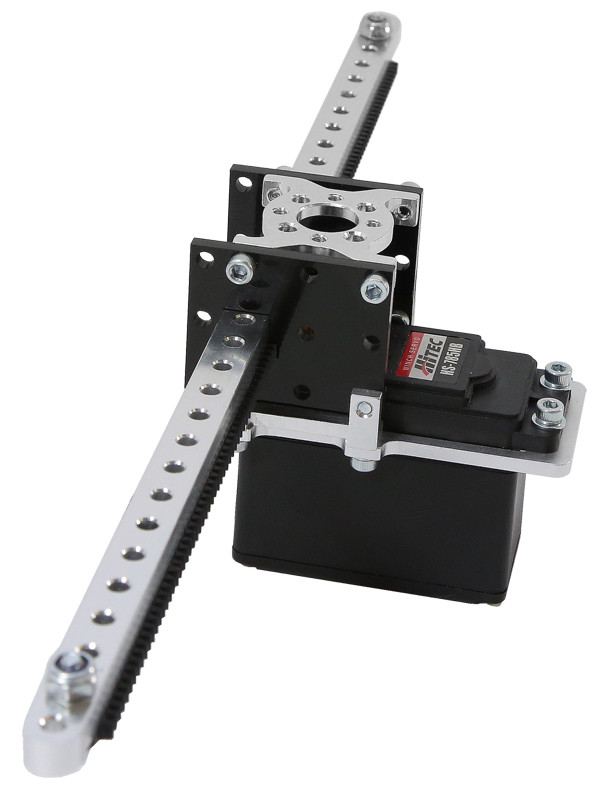

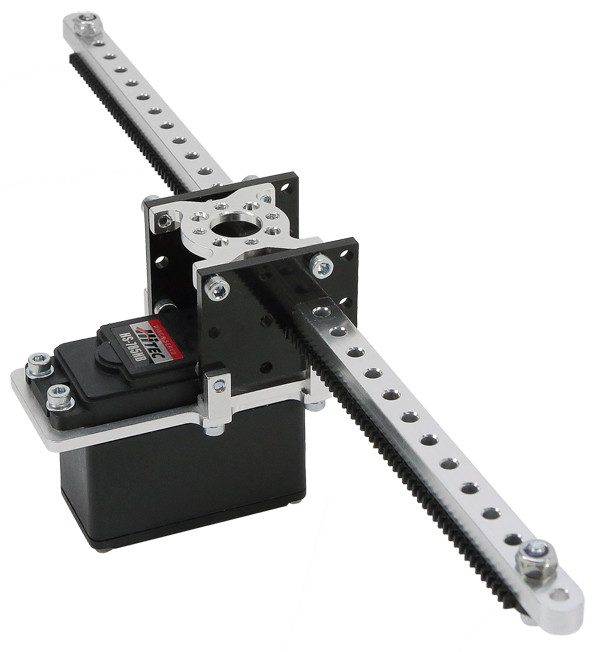

785 Gear Rack Kit (Single Perpendicular)

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.

Check out this Alternative!

This product has similar functionality to the 637170 but with a different mounting pattern.

Servo-Driven Gear Rack Kit (Hitec HS-788HB Servo, Single Gear Rack)

goBILDA

3207-0001-0001
Servo-Driven Gear Rack Kit (Hitec HS-788HB Servo, Single Gear Rack)
$99.99
$89.99
Discontinued

Currently Sold Out

The 785 Gear Rack Kit is a simple way to create linear motion using a rotational servo. The kit comes with the multi-rotation Hitec HS-785HB servo which allows for up to 9.6” of travel when sending the proper PWM signal from a servo controller. The kit is constructed of aluminum components and wear resistant Delrin plastic to create a durable yet lightweight assembly. The framework has several mounting options and integrates seamlessly with the rest of the Actobotics line of products. The 785 Gear Rack Kit is great for steering racks and other applications that require linear motion using a PWM signal. All the hardware is included. For details on the assembly process, be sure to check out the assembly video.

Signal information: The HS-785HB servo rotates approximately 1.7 degrees/microsecond change in signal. To achieve full travel, a signal range from approximately 850-2150usec will be required (each HS-785HB servo responds to a signal slightly differently so you may need to fine-tune this range in order to achieve full travel without hitting the stops at the ends). On a standard RC transmitter and receiver (assuming a 1050-1950usec range) the Gear Rack Kit will travel approximately 6.7”. For details on the HS-785HB servo that drives the 785 Gear Rack Kit, click here.

Included Parts:

  • (1) HS-785HB Servo #33785S
  • (1) Quarter Scale Servo Plate #575116
  • (1) Beam Bracket U (set) #585658
  • (1) 90 Degree Dual Side Mount (2 pack) #585508
  • (1) 90 Degree Quad Hub Mount B #545424
  • (12) 6-32 x 1/4” Socket Head Cap Screws
  • (4) 6-32 x 5/16” Socket Head Cap Screws
  • (2) 6-32 x 5/8” Socket Head Cap Screws
  • (2) 6-32 Nylock Nuts
  • (6) #6 washers
  • (1) 16T, 32P Metal Servo Gear #615278
  • (1) 32P Beam Gear Rack #615410
  • (1) 12.32” Aluminum Beam #585423

Specs

Weight 0.46 lb (with servo)
Servo Included HS-785HB
Travel 9.6"
PWM Range to Achieve Full Travel 850-2150µs
