8mm Bore Bottom Tapped Pillow Block

SKU: Build System: Actobotics

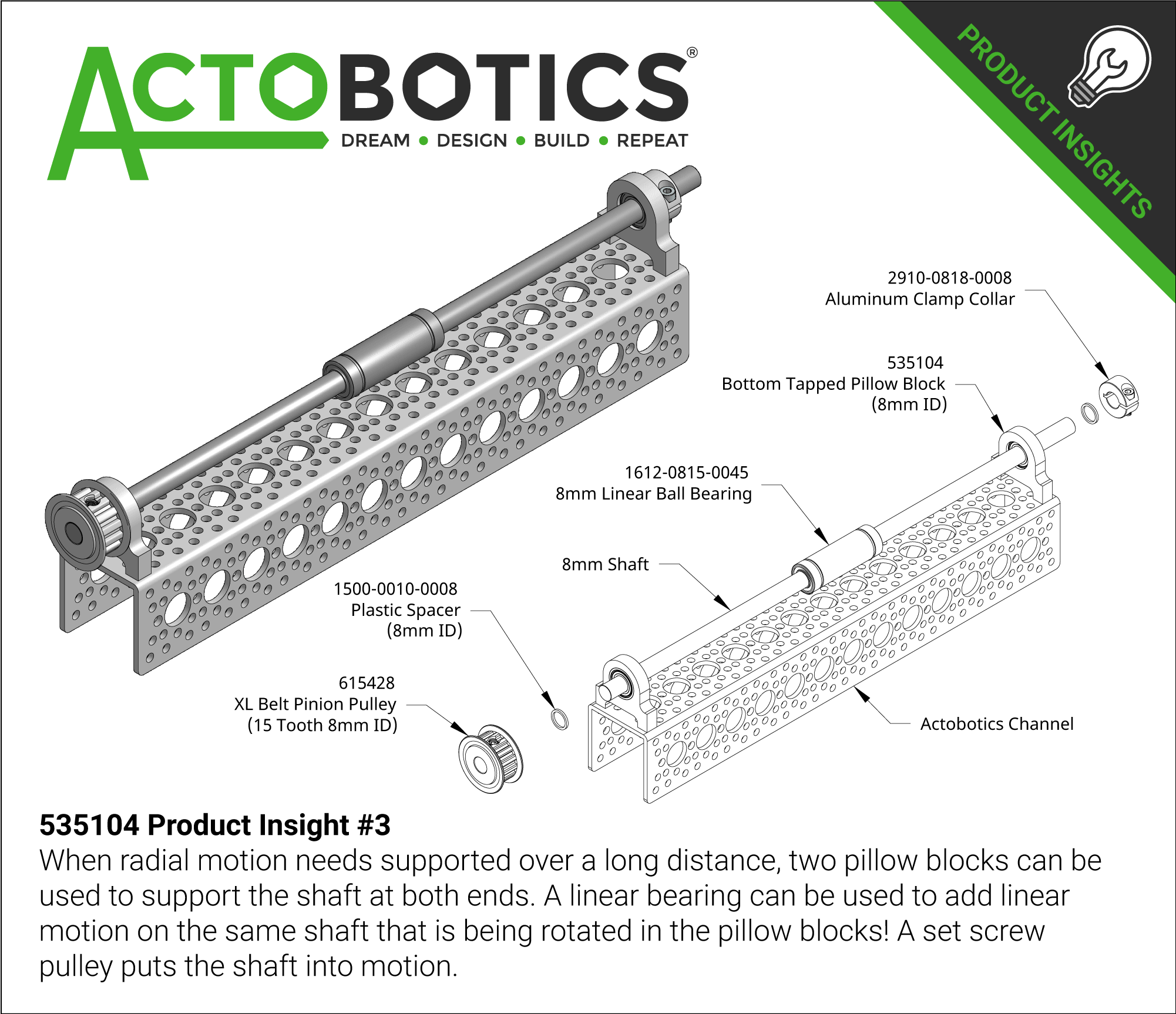

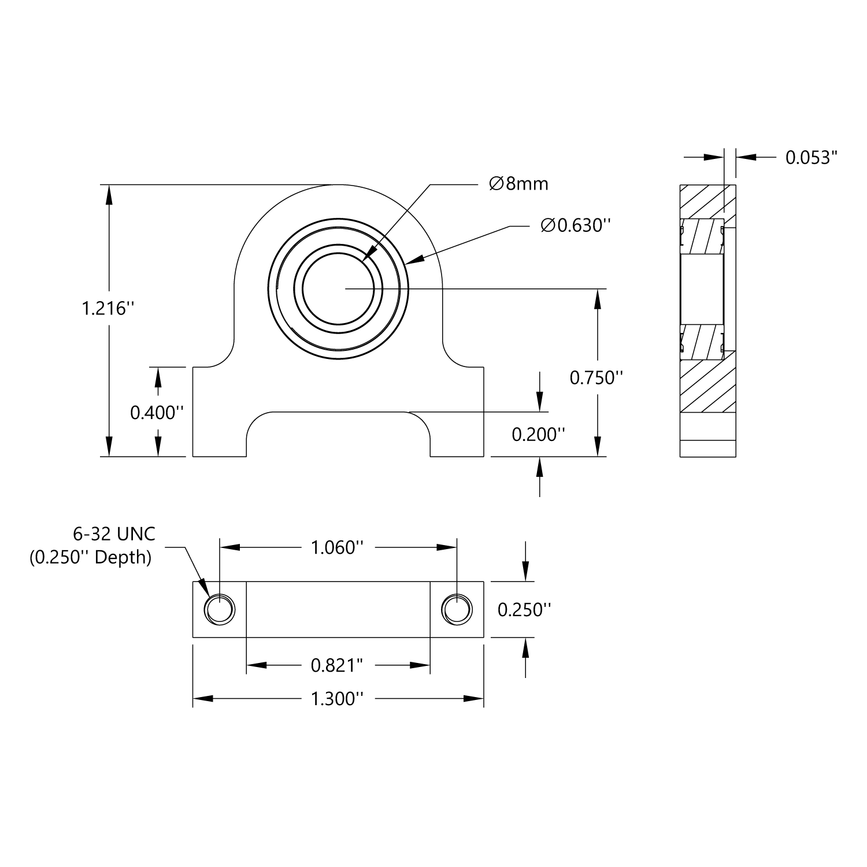

This 8mm Bottom Tapped Pillow Block has threaded holes on the feet in order to easily mount to a plate, bracket or channel.  The height from base to the center of the bearing is 0.75" so that, when installed on the Actobotics pattern, you’re able to easily mesh 32 or 48 pitch gears.  This particular size is commonly used with 8mm lead screws but has many uses outside of creating a linear motion assembly. As with all pillow blocks, the included bearing is pressed in so you don’t have to worry about it walking out during use.



Material Aluminum Housing, High-Carbon Steel Bearing
Weight 0.39 oz (11g)
Static Load 160 lbs
Max RPM 43,000
Bearing ID 8mm
Dynamic Load 310 lbs
