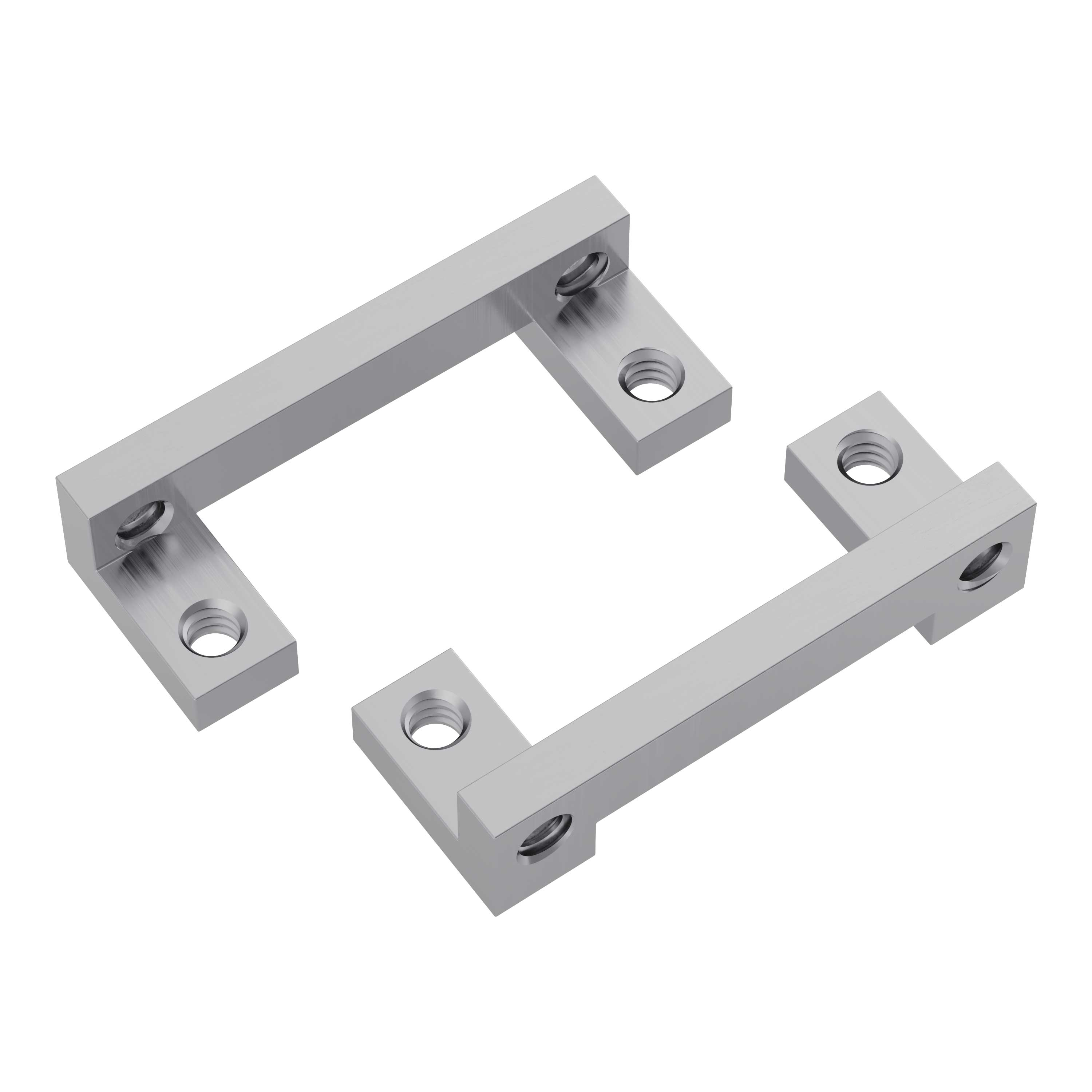

90° Dual Side Mount B (2 pack)

SKU:
$5.99 / 2 Pack

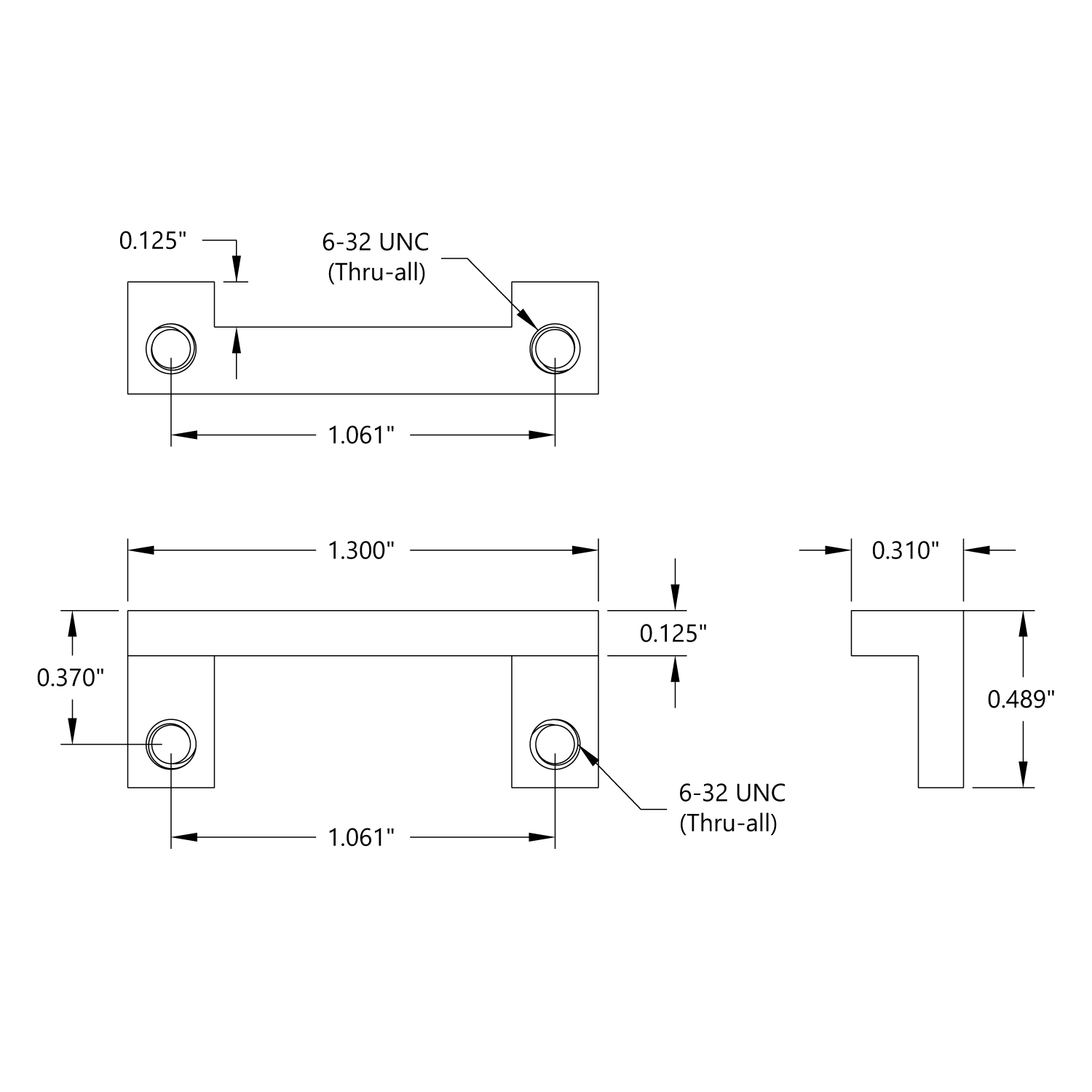

The 90 degree Dual Side Mount B brackets allow you to easily attach the ¼ scale Servo Plate A to the end or top of the Actobotics Channel.  The brackets have (4) 6-32 tapped holes; 2 to mount the servo plate to the bracket and 2 to mount the bracket to the channel.  When the 90 degree dual side mounts are used in conjunction with the ¼ scale servo plate A, it perfectly aligns the spline of a Hitec ¼ scale servo with the ½” bore of the channel.

Downloads

Specs

Material Aluminum
Weight 0.08 oz (2.4g) each
