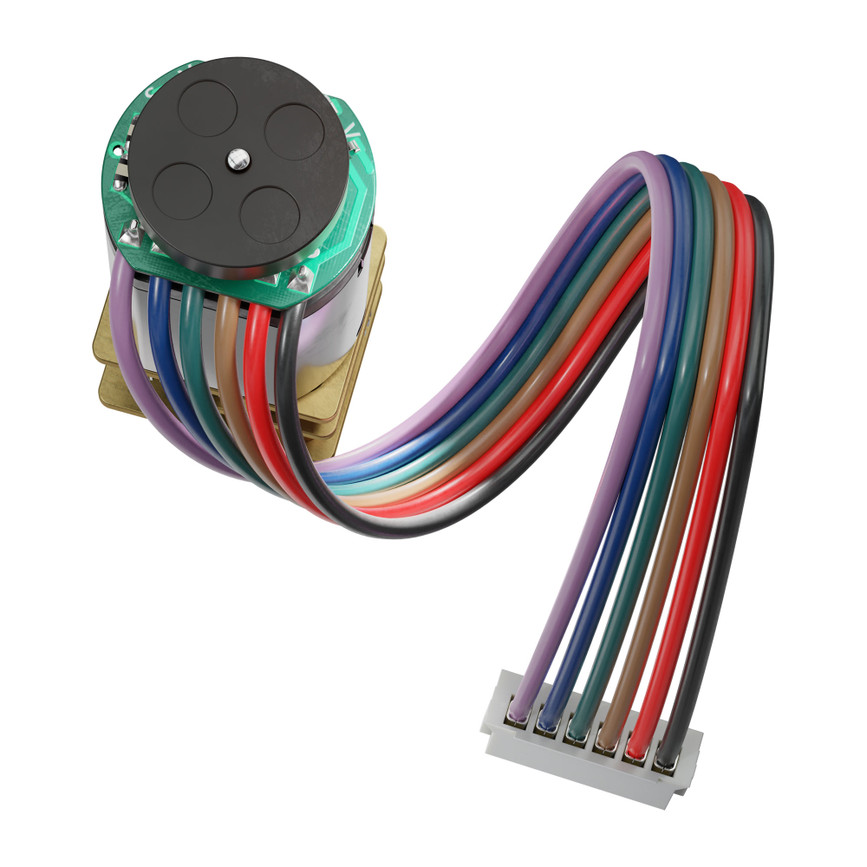

90 RPM Micro Gear Motor w/Encoder

  • 12 CPR Magnetic Encoder
  • Shown with a 3mm to 1/4” set screw shaft coupler
  • Shown on a quarter for scale
  • The gear motor has a “D” shaped 3mm diameter shaft
  • Use with our 3mm bore pinion gears
  • All metal gears
1 of 8

Be the first to review this product


Regular Price: $19.99

Special Price $14.99

Sign up for Price Alert
In stock
This Product? Share It!

Stalling this gear motor could cause gear damage.

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 90 rpm
Current (No Load)* 70mA
Current (Stall)* 1600mA
Torque (Stall)* 70 oz-in
Gear Ratio 297.924:1
Gear Material Metal
Gearbox Style Straight Cut Spur
Motor Type DC
Output Shaft Diameter 3mm (0.118”)
Output Shaft Style D-shaft
Output Shaft Support Brass Case
Electrical Connection ZH Series JST 6-pin connector (1.5mm Pitch)
Operating Temperature -10°C ~ +85°C
Mounting Screw Size M1.6 x 0.35mm
Product Weight 0.4 oz
Encoder: Cycles Per Revolution (Motor Shaft) 3
Encoder: Cycles Per Revolution (Output Shaft) 893.7714
Encoder: Countable Events Per Revolution (Motor Shaft) 12
Encoder: Countable Events Per Revolution (Output Shaft) 3,575.0855
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)


Download Attachment
pdfEncoder Spec Sheet(603.65 KB )Download
