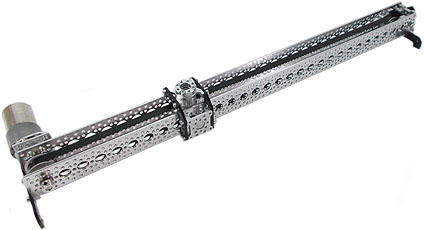

Channel Slider Kit A

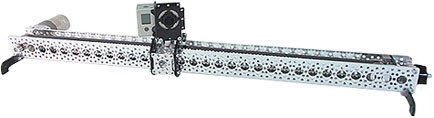

  • Shown with a GoPro Mount (not included)

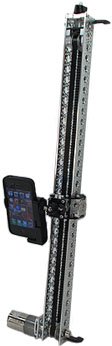

  • Use both vertically and horizontally
  • Use both vertically and horizontally
  • The slider offers 19” of slide travel
  • Easy assembly requiring only 2 hex keys
  • Choose a motor speed that suites your needs

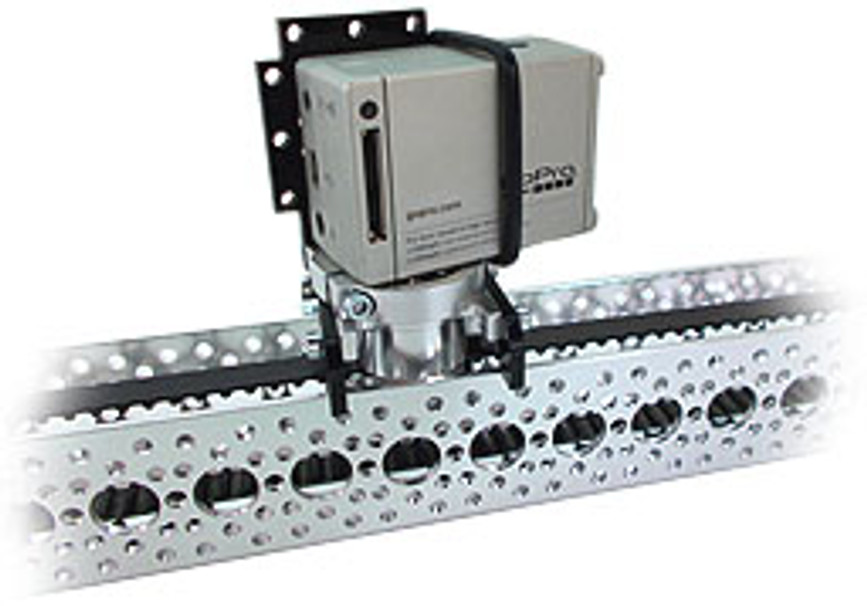

  • Shown with a GoPro Mount (not included)

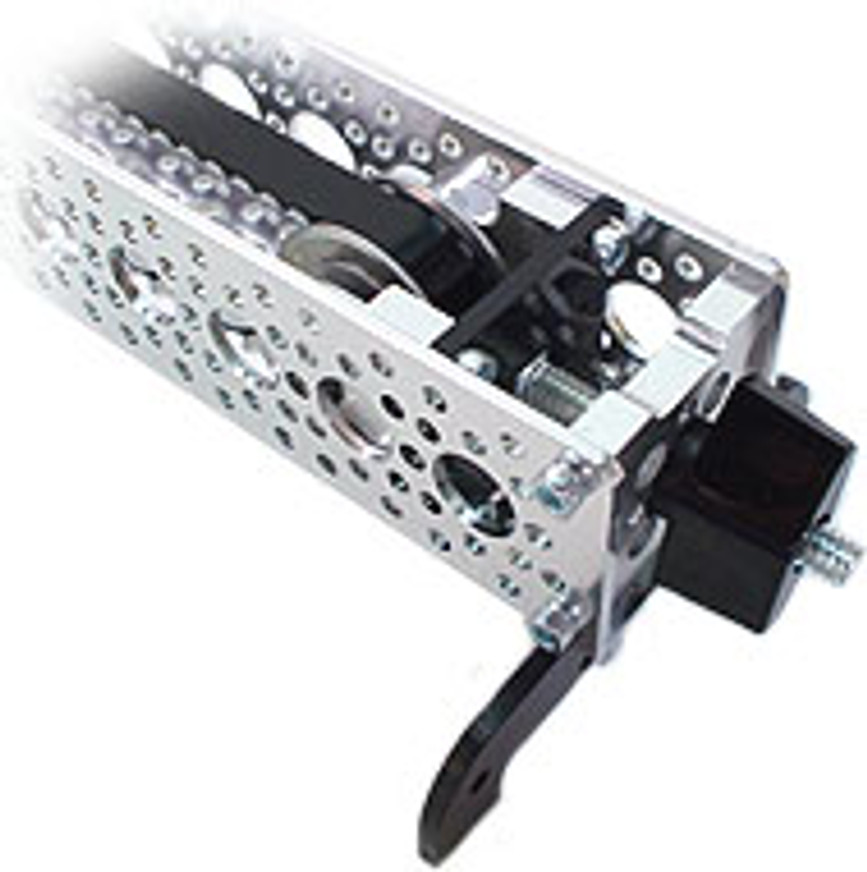

  • The 1/4-20 knob at the end of the slider allows you to easily adjust the belt tension

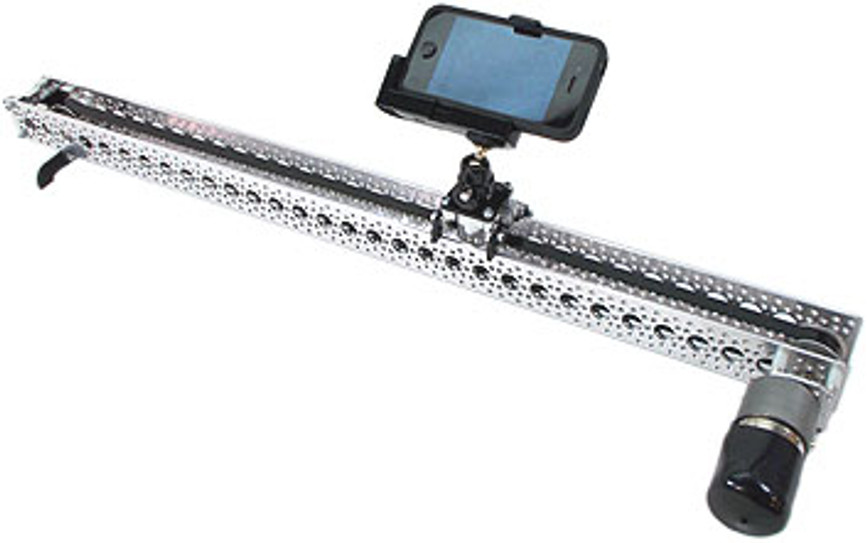

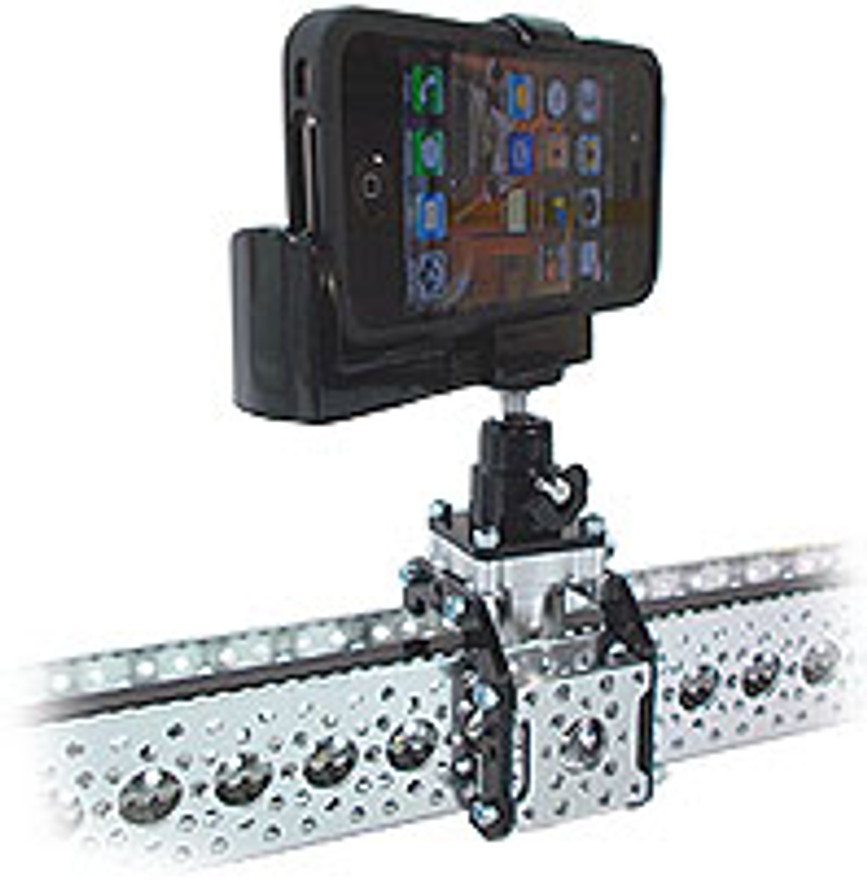

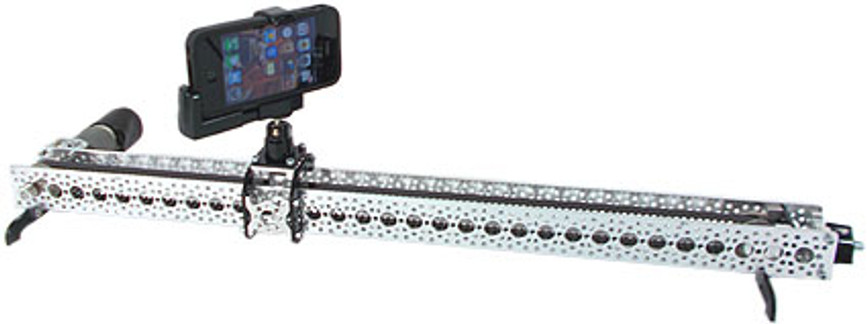

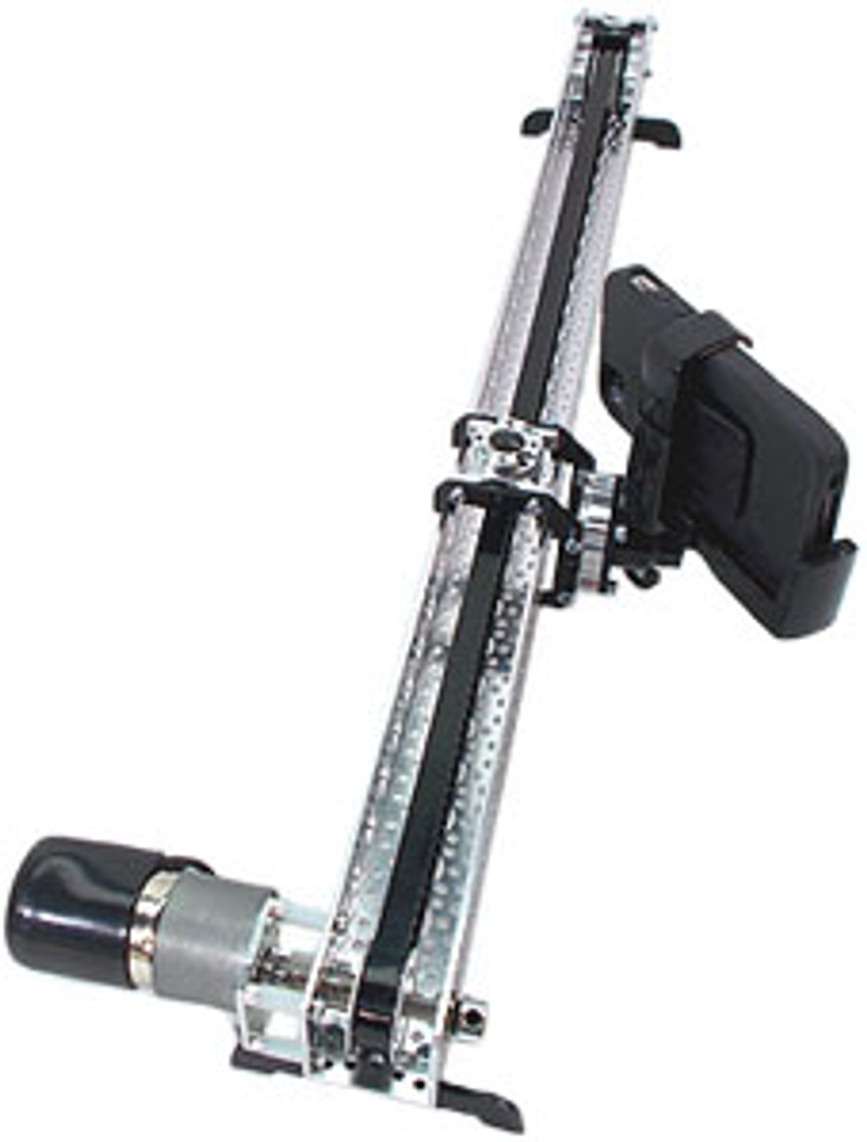

  • Shown with a smartphone mounted to the slider (not included)
  • Use both vertically and horizontally
  • Close-up of the sliding mechanism
1 of 17

Be the first to review this product

Price
$119.99 Sign up for Price Alert
Part
637108
637108
Status
In stock
This Product? Share It!

Details

Put your videos in motion with the Channel Slider Kit A!  This slider has an overall length of 24” with a usable 19” of slide travel.  It fits nicely in a carry-on bag and is very portable for those who wish to take it along to capture their active lifestyles (overall weight of only 1.1 lbs without motor).  The motor mount is compatible with our Standard Spur Gear Motors (motors sold separately).  The vast motor options allow you to tailor the slider to fit your shooting style whether it’s for real-time shots or super slow time-lapse shots.  The slider kit is constructed entirely of Actobotics components which allow users to expand upon it very easily.  Camera mount not included.

Assembly: Assembly of the Channel Slider Kit A can be done with minimal tools (#2 Phillips screwdriver, 3/32” allen driver7/64” allen driver).  For details on the assembly process, be sure to check out our assembly videos in the 'tech tips' section below.

Recommended camera size: The slider kit is excellent for camera phones, GoPro cameras & small sized cameras.  For larger cameras such as a DSLR, we suggest replacing the stock channel slider plates with the Channel Slider A plates to provide greater lateral stability.

SPECS

Slider speed calculation: The following formula can be used to help select the correct speed of gearmotor.

6.3 / [(number of seconds for full travel at max speed/60]
For example, if you wish to build a slider that will move 19” in 30 seconds:
6.3 / [30/60] = 12.7 RPM motor required

637108-Slider-Kit-A-450px

INCLUDED PARTS:
(1) 24” Aluminum Channel
(1) 585468 Flat Channel Bracket
(1) 585470 Dual Side Mounts (2 pack)
(2) 632106 1/4” x 6-32 Socket Head Cap Screws (25 pk)
(4) 1” x 6-32 Socket Head Cap Screws
(1) 545440 Hub Adaptor A
(1) 545380 3/8” Hub Spacer
(1) 545384 1/2” Hub Spacer
(1) 545360 90 Degree Quad Hub Mount C
(2) 545452 90 Degree Quad Hub Mount E
(1) 555128 Aluminum Motor Mount B
(2) 535150 1/4” Bore Pillow Block
(1) 633136 6-32 Tapped Standoffs (4 pk)
(1) 633104 1/4” Shafting and Tubing Spacers (12 pk)
(1) 535198 1/4” ID x 1/2” OD Flanged Ball Bearing
(1) 6432K12 1/4” Steel Set Screw Collar
(2) 615434 1/4” Bore Pinion Pulley 15T
(1) B375-460XL 46” Timing Belt
(1) 625106 1/4” to 6mm Set Screw Shaft Coupler
(1) 585502 XL Belt Mount A
(1) 634060 1/4” x 1.25” D-shaft
(1) 634066 1/4” x 1.75” D-shaft
(1) 585556 Channel Slider D (pair)
(1) 585574 Channel Feet A (pair)
(1) Acetyl carriage bolt plate
(1) 1/4-20 carriage bolt
(1) 1/4-20 knob
Dimensions Overall Length: 24"
Product Weight 1.1 lbs (no motor)
Motor Size Compatibility 3-12V Standard Spur Gear Motors
Travel 19"
TECH TIPS
Stepper Motor Mount on Motor - small To make this kit compatible with a NEMA 17stepper motor you will need the following items (sold separately):
(1) NEMA 17 Motor
(1) NEMA 17 Motor Mount
(1) 5mm to 1/4” Set Screw Shaft Coupler

TIP: To add yet another element to your video, you can install a pan system to the bottom of the Slider Kit A. The 170 degree viewing angle on a GoPro camera won’t allow you to install a pan system on top the slider rail as it would capture the rail throughout the majority of the video footage. By installing a pan system to the bottom side of the rail, you can capture footage without having to worry about the slider rail creeping into view.
