Digital Manual Speed Controller

There are two ways to supply power to the Digital Manual Speed Controller: Power Input Option 1: 2.5mm x 5.5mm DC power jack Power Input Option 2: Tamiya connector
There are two ways to supply power to the Digital Manual Speed Controller: Power Input Option 1: 2.5mm x 5.5mm DC power jack Power Input Option 2: Tamiya connector
  • There are two ways to supply power to the Digital Manual Speed Controller: Power Input Option 1: 2.5mm x 5.5mm DC power jack Power Input Option 2: Tamiya connector
  • Female Bullet style ends for motor connection
  • Power jack for regulated power supply.

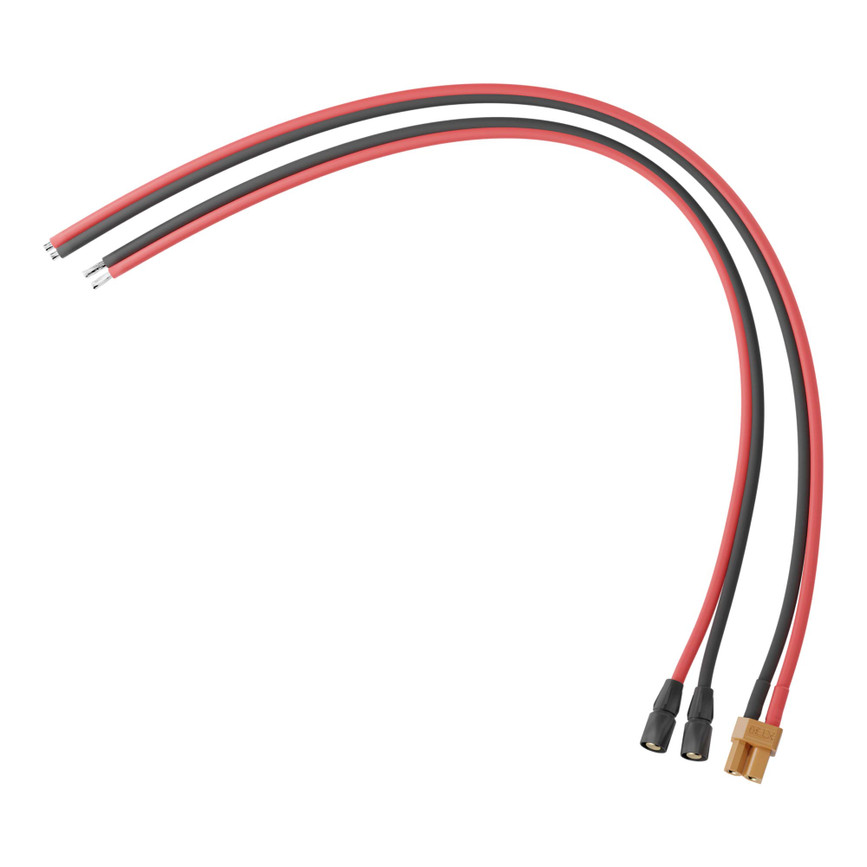

  • Included Wiring: - A female Tamiya connector is included for soldering to the power source if needed. - A pair of Male Bullet connectors are included for motor connection.
1 of 5
GET A BACK IN
STOCK ALERT

Be the first to review this product

Part
DMSC6-16-10
DMSC6-16-10
Status
Out of stock
This Product? Share It!

Details

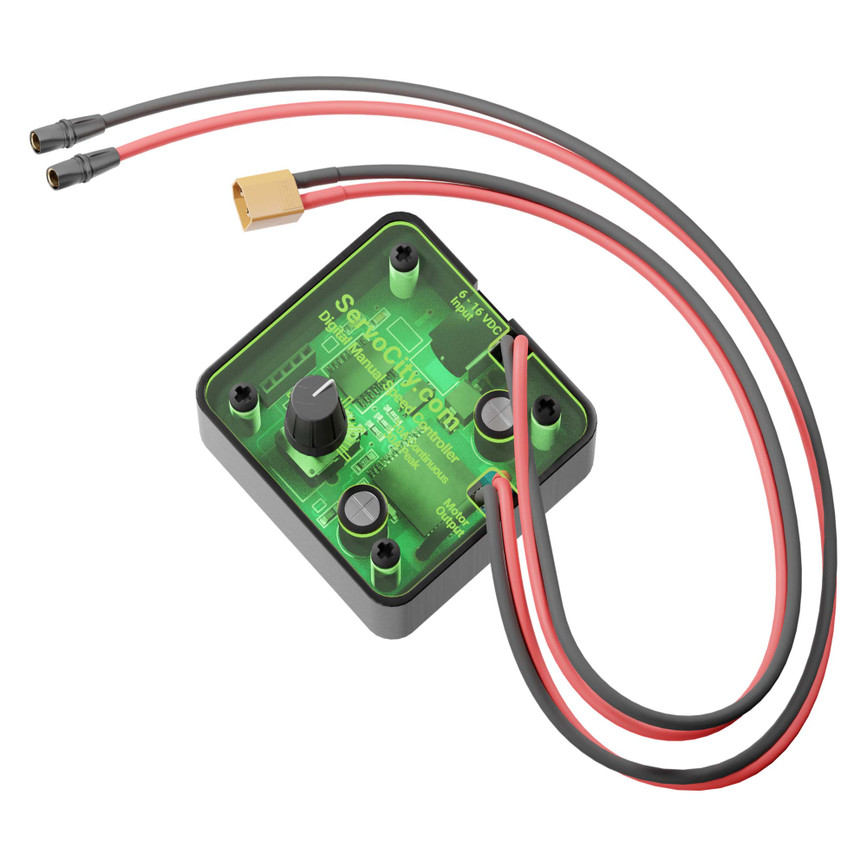

The Digital Manual Speed Controller is a simple and affordable way to precisely control gearmotors and linear actuators. It provides proportional forward and reverse control from the 5K potentiometer input. This controller is protected from reverse voltage, over voltage, over temperature and over current. The advanced technology implemented into the Digital Manual Speed Controller offers extremely fine low speed and bi-directional control while maximizing the available torque of the motor. The controller accepts 6-16V DC, can handle a maximum of 10A continuous. It has a small footprint of just 2.4” x 2.4”, and weighs just over 4 ounces. The Digital Manual Speed Controller is perfect for pan and tilts, time-lapse rigs, camera sliders or any application which requires fluid, bi-directional control of a DC motor.

SPECS
Product Weight 4.8 oz
Dimensions 2.4” x 2.4” x 0.875”
Channels 1
Control Input Digital PWM Signal
Input Supply Voltage Range 6 - 16V
Input Signal Voltage Range 3.3 - 5V
Max Current per Channel (Continuous) 10A
Max Current per Channel (Peak) 30A
Max PWM Signal Range (Standard) 1000 µsec - 2000 µsec
Motor Type Brushed DC
Motor Direction Bidirectional
