HD Premium Planetary Gear Motor Mount, Face Tapped

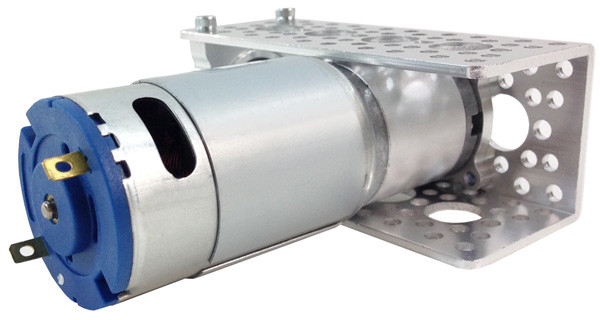

  • shown mounted in aluminum channel

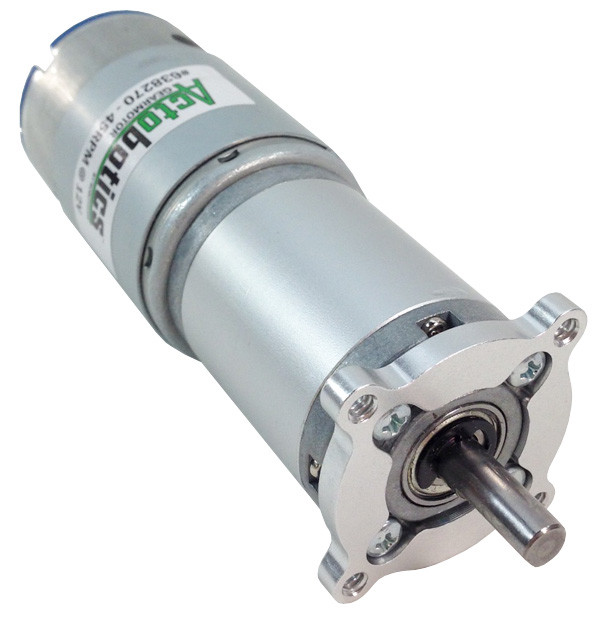

  • shown mounted to a Heavy Duty Premium Planetary Gear Motor

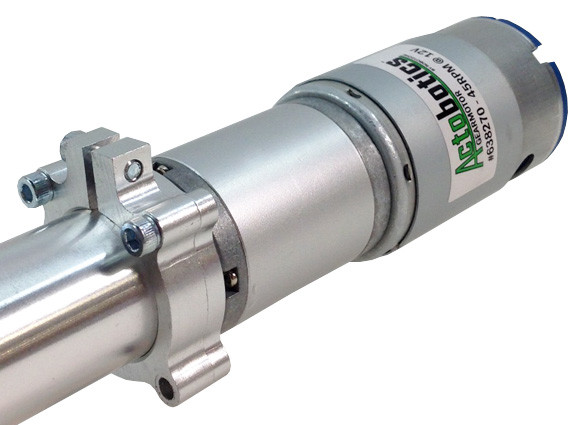

  • Attach to a aluminum tubing using our 1” bore clamping hub with thru holes
1 of 4

Be the first to review this product

Part
555174
555174
Status
In stock
This Product? Share It!

Details

The HD Premium Planetary Gear Motor Mount, Face Tapped is designed for use with our Heavy Duty Premium Planetary Gear Motors.

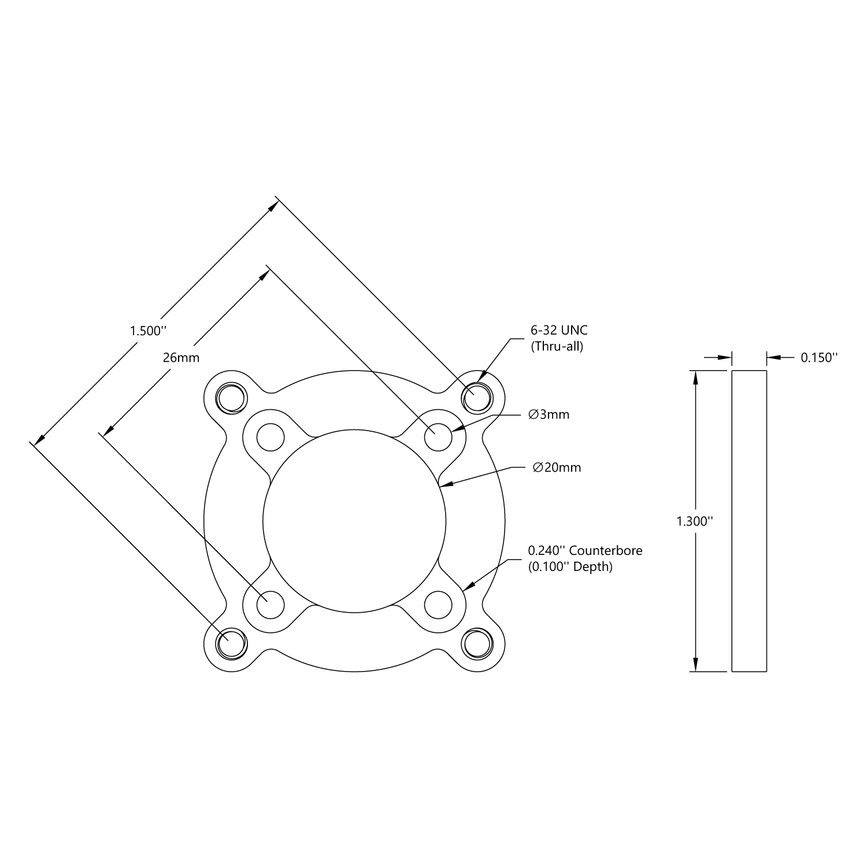

This mount has (4) counter-sunk mounting holes for the 3mm pan head motor mounting screws; and (4) 6-32 tapped holes for attachment to other Actobotics parts. Manufactured from aluminum, the mount is lightweight and strong.

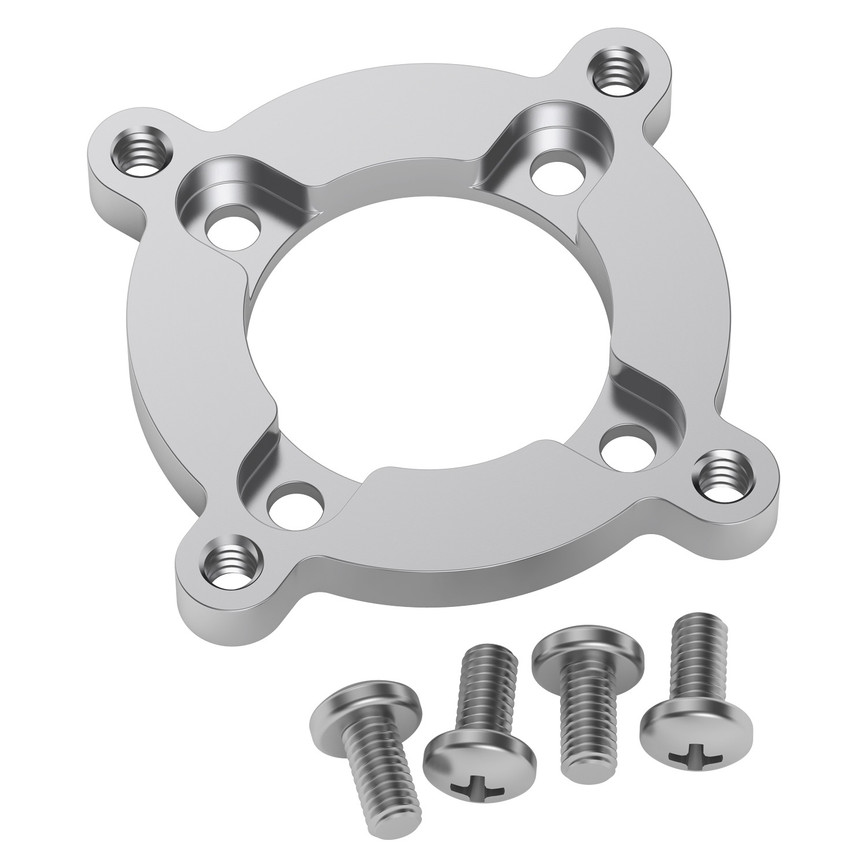

Includes: (4) Mounting screws 3mm Dia. x 6mm Long Zinc-plated Phillips Head Screws

SPECS

555174

Product Weight .35 oz
Material 6061-T6 aluminum
Motor Size Compatibility Heavy Duty Premium Planetary Gear Motors
