| SKU | Stroke | Retracted Length | Extended Length | Thrust | Speed | Price |
|---|---|---|---|---|---|---|
| 3020-0005-0250 | 10" | 15.7" | 25.7" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0250 | 10" | 15.7" | 25.7" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0250 | 10" | 15.7" | 25.7" | 112 lbs | 0.6"/sec |
$299.99
|
| 3020-0005-0300 | 12" | 17.7" | 29.5" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0300 | 12" | 17.7" | 29.5" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0300 | 12" | 17.7" | 29.5" | 112 lbs | 0.6"/sec |
$299.99
|
| 3020-0005-0050 | 2" | 7.7" | 9.6" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0050 | 2" | 7.7" | 9.6" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0050 | 2" | 7.7" | 9.6" | 112 lbs | 0.6"/sec |
$299.99
|
| 3020-0005-0100 | 4" | 9.7" | 13.6" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0100 | 4" | 9.7" | 13.6" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0100 | 4" | 9.7" | 13.6" | 112 lbs | 0.6"/sec |
$299.99
|
| 3020-0005-0150 | 6" | 11.7" | 17.6" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0150 | 6" | 11.7" | 17.6" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0150 | 6" | 11.7" | 17.6" | 112 lbs | 0.6"/sec |
$299.99
|
| 3020-0005-0200 | 8" | 13.7" | 21.6" | 33 lbs | 1.7"/sec |
$299.99
|
| 3020-0040-0200 | 8" | 13.7" | 21.6" | 225 lbs | 0.3"/sec |
$299.99
|
| 3020-0020-0200 | 8" | 13.7" | 21.6" | 112 lbs | 0.6”/sec |
$299.99
|

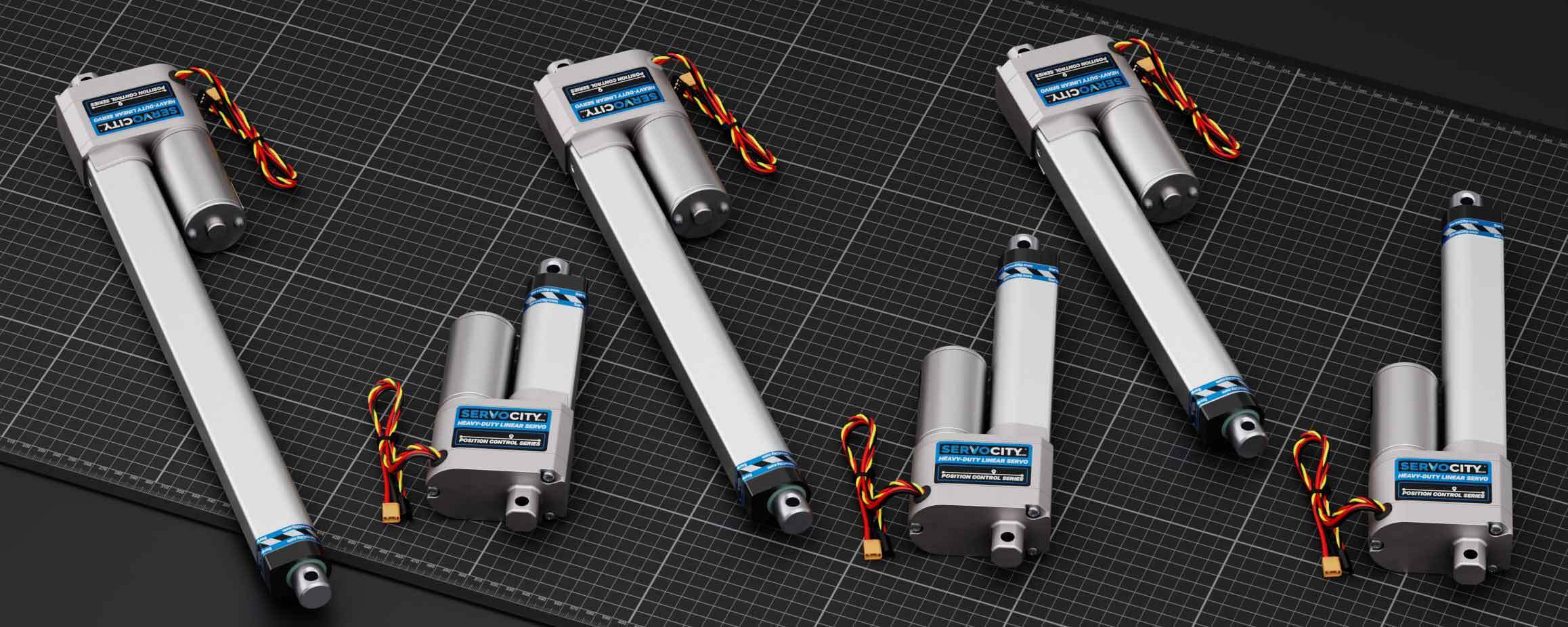

Heavy-Duty Linear Servos (Position Control)
The 3020 Series Heavy-Duty Position Control Linear Servos combine the rugged strength of our 3000 Series Heavy-Duty Linear Actuators with integrated control electronics for precise, plug-and-play positioning. Designed for applications where exact placement matters, these servos translate a standard PWM signal into a specific position within the stroke and hold it there with confidence, even under load. Ideal for everything from hatches and doors to custom automation projects, they offer a clean, user-friendly alternative to traditional actuators. If you prefer a more traditional linear actuator-style control feel, where the speed is controlled by how far you move the joystick of an R/C transmitter, for example, take a look at our 3021 Series Heavy-Duty Speed Control Linear Servos.
