HS-322HD Servo

  • HS-322HD back view

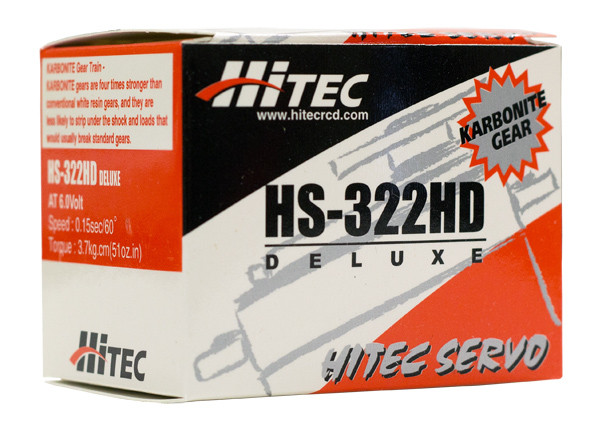

  • HS-322HD in box
  • HS-322HD top view
  • HS-322HD side view
  • HS-322HD included hardware

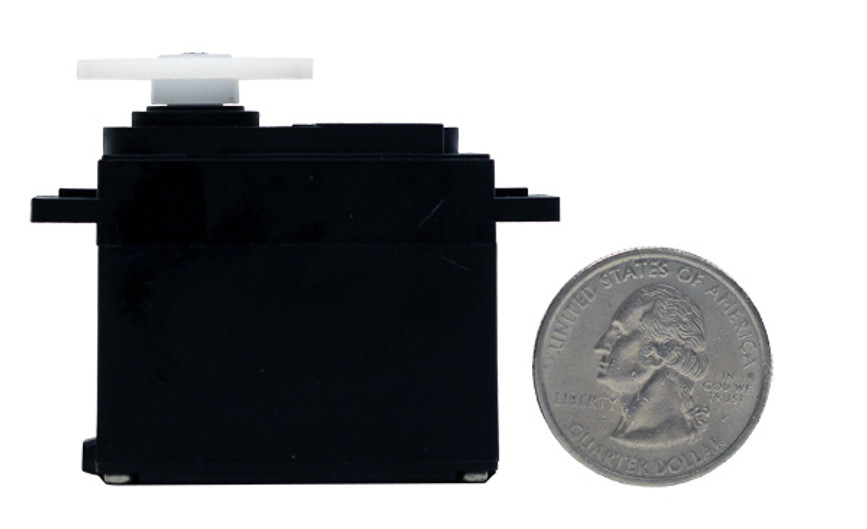

  • HS-322HD with quarter for scale
1 of 7

Be the first to review this product

$12.99 - $32.99
Sign up for Price Alert
In stock

* Required Fields

$12.99 - $32.99
Sign up for Price Alert
This Product? Share It!


The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite™ gears and Hitec's custom IC make the HS-322HD a great choice for an economical sport servo.

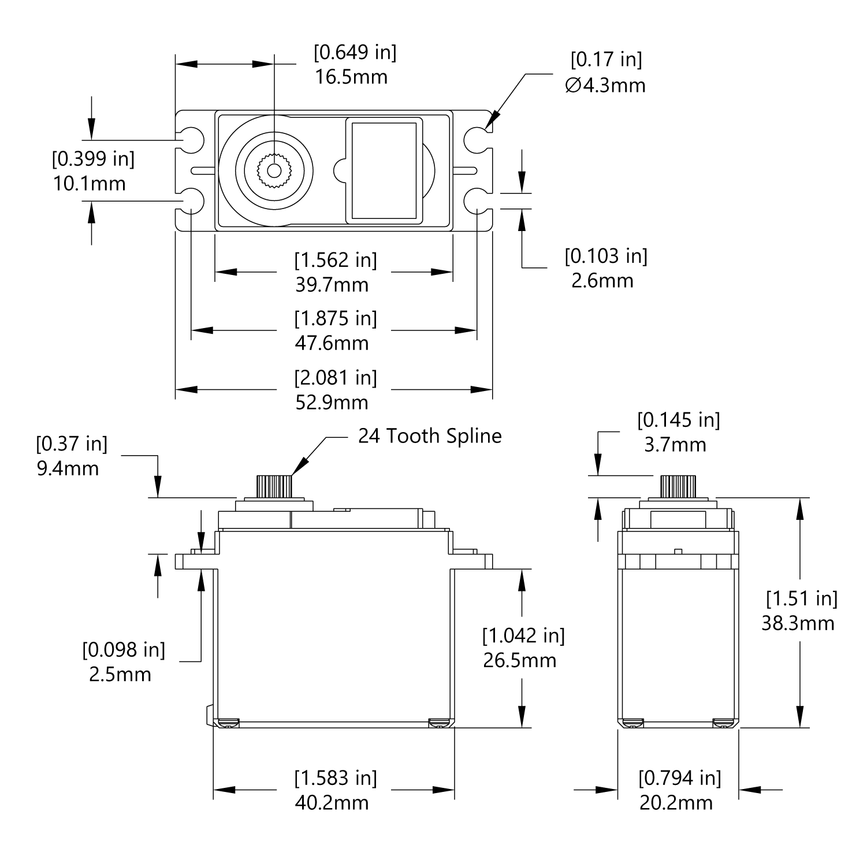

Standard Servo Schematic 2 A = .780” (19.82mm)
B = .530” (13.47mm)
C = 1.33” (33.79mm)
D = .400” (10.17mm)
E = .380” (9.66mm)
F = 1.19” (30.22mm)
G = .460” (11.68mm)
H = 1.05” (26.67mm)
J = 2.08” (52.84mm)
K = .368” (9.35mm)
L = .172” (4.38mm)
M = 1.57” (39.88mm)
X = .120” (3.05mm)
Dimensions 1.57" x 0.78" x 1.43" (39.88 x 19.81 x 36.32mm)
Product Weight 1.52oz (43g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.19sec/60°
No-Load Speed (6.0V) 0.15sec/60°
Stall Torque (4.8V) 42 oz/in (3.0 kg/cm)
Stall Torque (6.0V) 51 oz/in (3.7 kg/cm)
Max PWM Signal Range (Standard) 553-2450μsec
Travel per µs (out of box) .106°/μsec
Max Travel (out of box) 201°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Current Drain - idle (4.8V) 7.4mA
Current Drain - idle (6.0V) 7.7mA
Current Drain - no-load (4.8V) 160mA
Current Drain - no-load (6V) 180mA
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 5µs
Motor Type Cored Metal Brush
Potentiometer Drive 4 Slider/Direct Drive
Internal Feedback Style 5KΩ Potentiometer
Output Shaft Support Top Resin Bushing
Gear Type Straight Cut Spur
Gear Material Karbonite
Wire Length 11.81" (300mm)
Wire Gauge 25AWG

This servo can rotate up to 201° when given a PWM signal ranging from 553 to 2450 microseconds. Since most R/C controllers cannot generate this wide of a signal range, you can purchase our servo stretcher for extended rotation operation.
