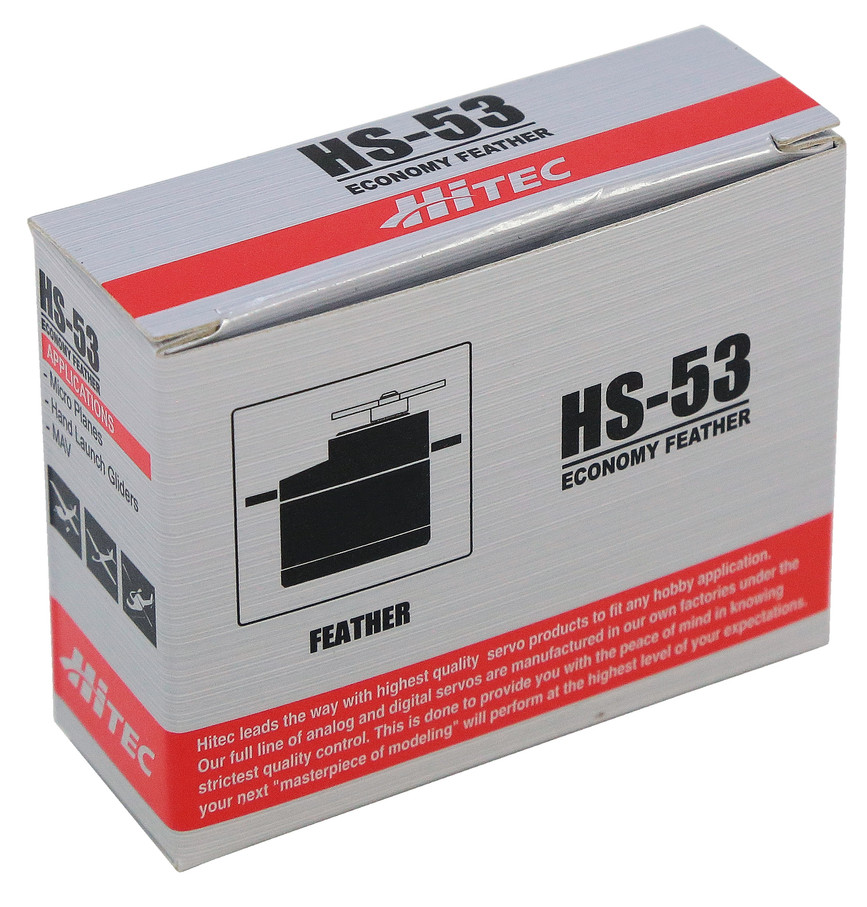

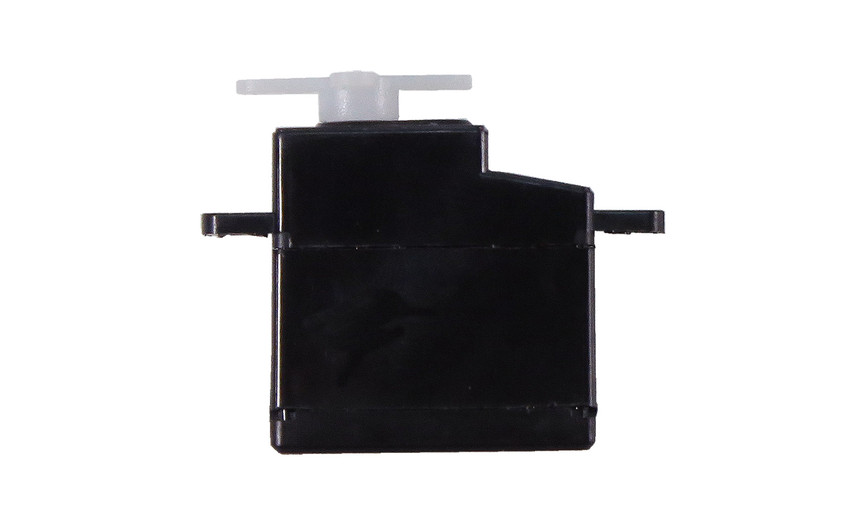

HS-53 Servo
SKU:
The HS-53 is Hitec’s economical feather servo, designed to compete head to head with the influx of low cost servos, while still maintaining their renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
94°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
180°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
180°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | A15T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.14 sec/60° |
| No-Load Speed (6.0V) | 0.11 sec/60° |
| Stall Torque (4.8V) | 20.94 oz-in (1.51 kg.cm) |
| Stall Torque (6.0V) | 26.53 oz-in (1.91 kg.cm) |
| Max PWM Signal Range | 553-2270μsec |
| Travel per µs | .105°/μsec |
| Max Rotation | 180° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 8µs |
| Motor Type | Three Pole Cored |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Outer case serves as bearing |
| Gear Material | Nylon |
| Wire Length | 6.29" (160mm) |
| Weight | 0.25oz (8g) |
| Wire Gauge | 28AWG |
| Servo Size | Sub-Micro |
