HS-625MG Servo

  • HS-625MG top view
  • HS-625MG included hardware

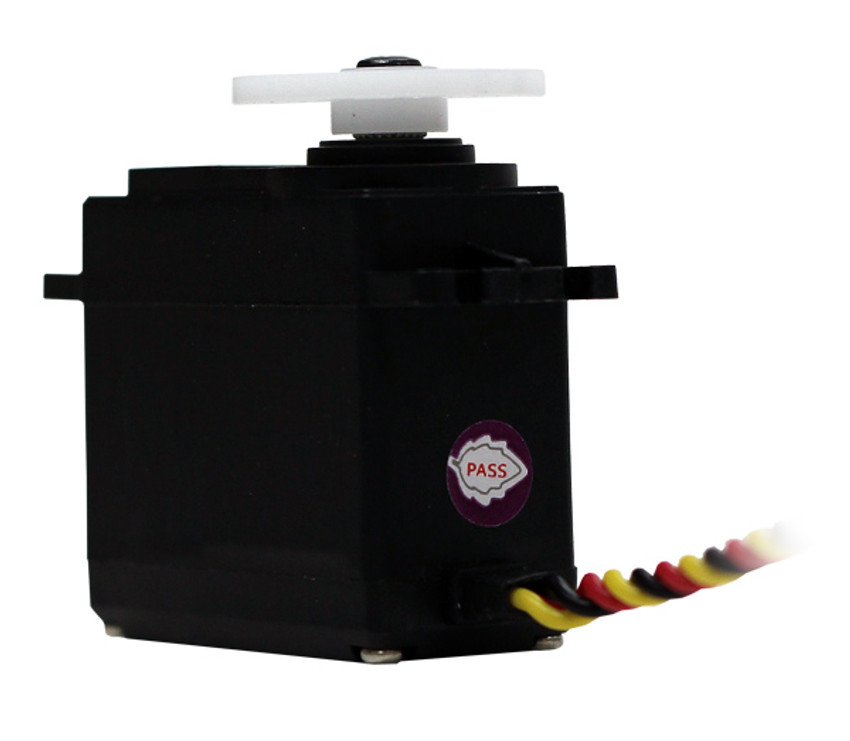

  • HS-625MG back view

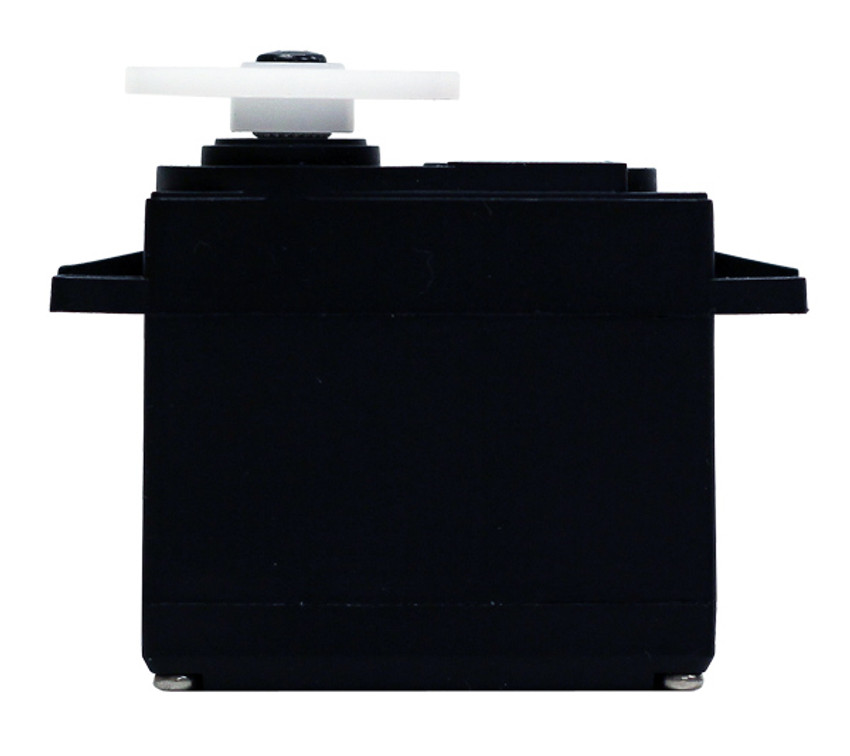

  • HS-625MG side view

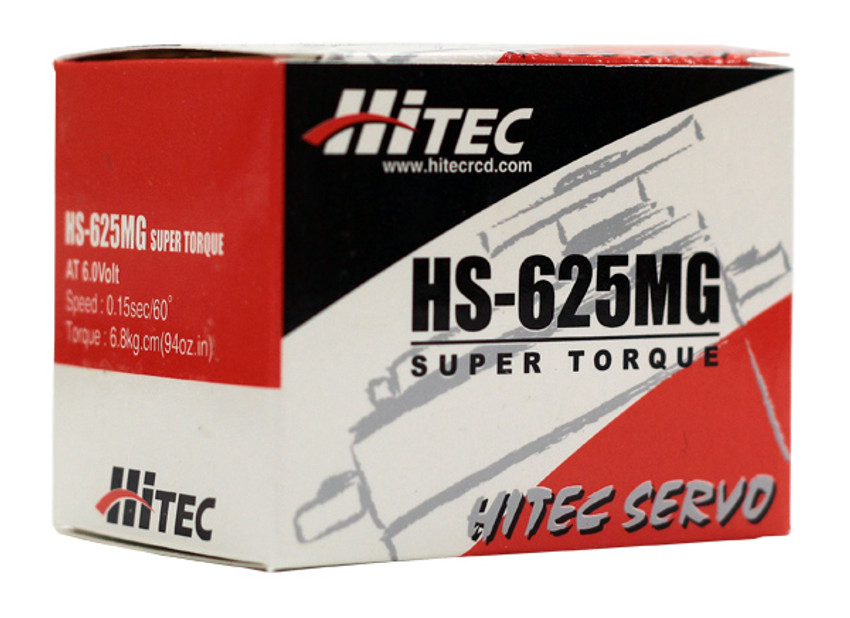

  • HS-625MG in box

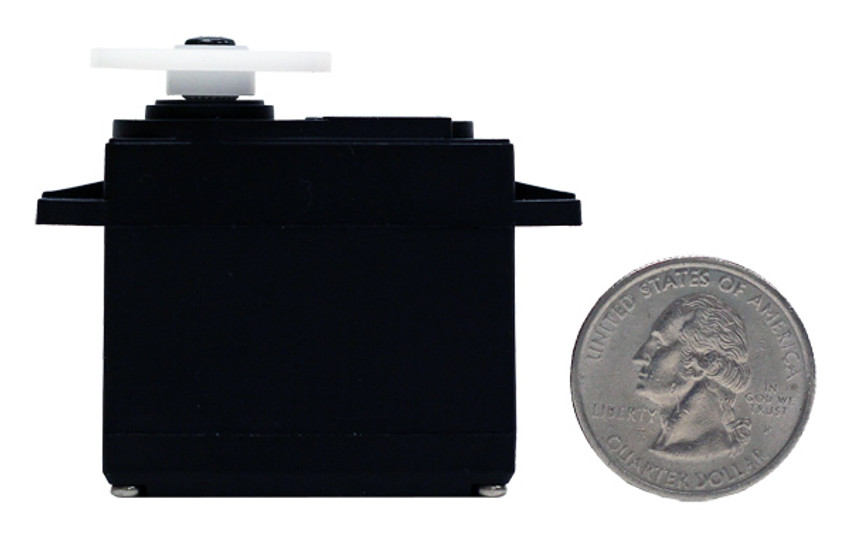

  • HS-625MG with quarter for scale
1 of 7

Be the first to review this product

Price
$29.99
$29.99 - $59.99
Sign up for Price Alert
Part
32625S
32625S
Status
In stock

* Required Fields

Price
$29.99
$29.99 - $59.99
Sign up for Price Alert
This Product? Share It!

Details

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.
SPECS
Dimensions 1.59" x 0.77"x 1.48" (40.6 x 19.8 x 37.8mm)
Product Weight 1.94oz. (55.2g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.18sec/60°
No-Load Speed (6.0V) 0.15sec/60°
Stall Torque (4.8V) 76.37 oz/in. (5.5kg.cm)
Stall Torque (6.0V) 94.43 oz/in. (6.8kg.cm)
Max PWM Signal Range (Standard) 553-2520μsec
Travel per µs (out of box) .100°/μsec
Max Travel (out of box) 197°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Current Drain - idle (4.8V) 8.8mA
Current Drain - idle (6.0V) 9.1mA
Current Drain - no-load (4.8V) 400mA
Current Drain - no-load (6V) 500mA
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 8µs
Motor Type 3 Pole Ferrite
Potentiometer Drive Indirect Drive
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Type Straight Cut Spur

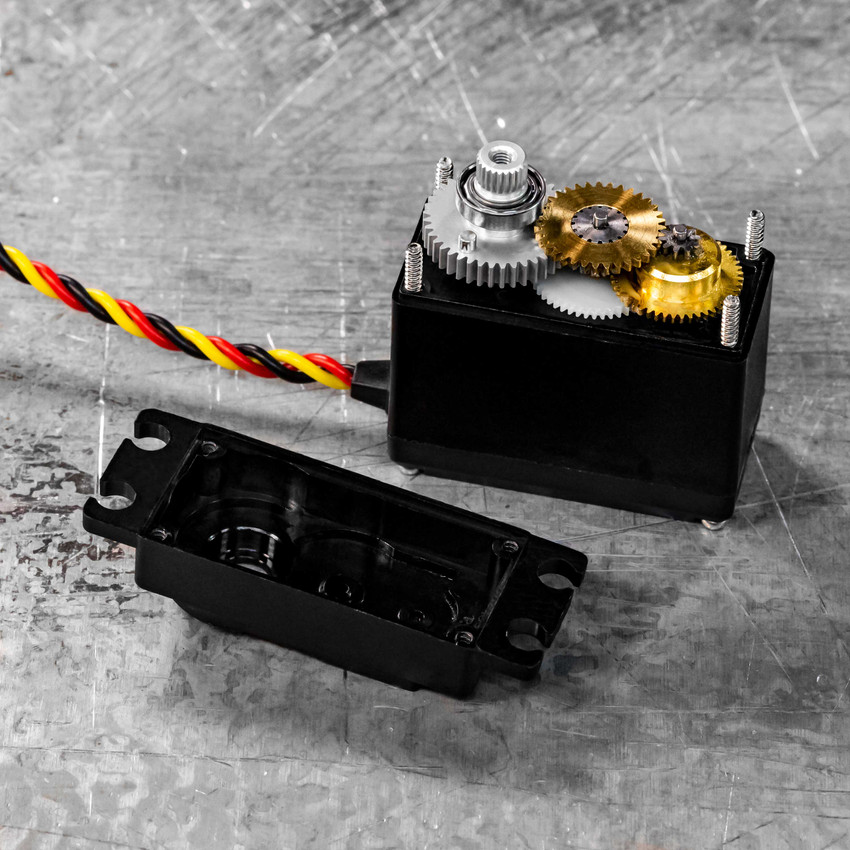

Gear Material 3 Metal Gears and 1 Resin Metal Gear
Wire Length 11.81" (300mm)
Wire Gauge 22AWG
TECH TIPS

Servo Angle Schematic 180 3.8

This servo can operate 180° when given a pulse signal ranging from 600usec to 2400usec. Since most R/C controllers cannot generate this wide of signal range, you will need to purchase our servo stretcher for 180° operation.
