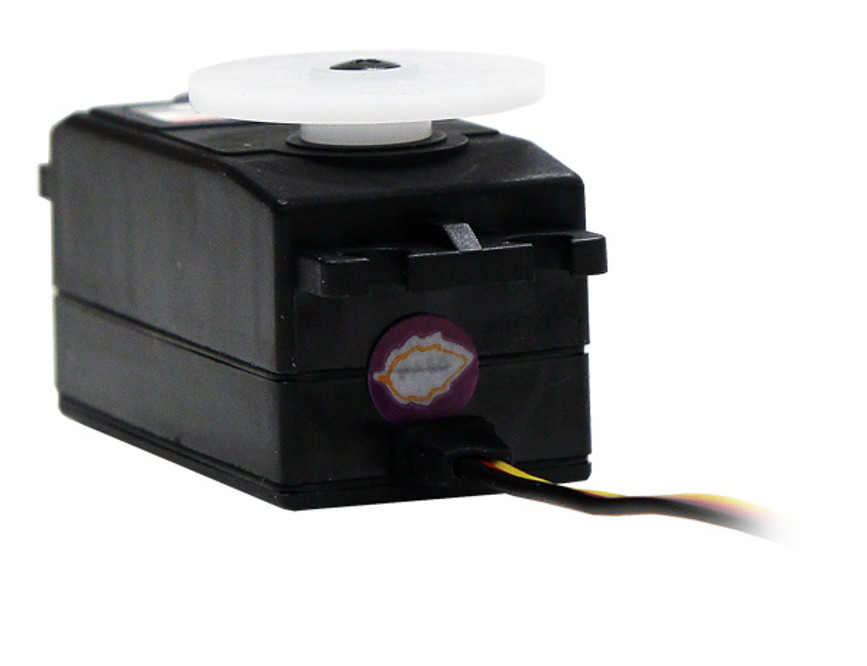

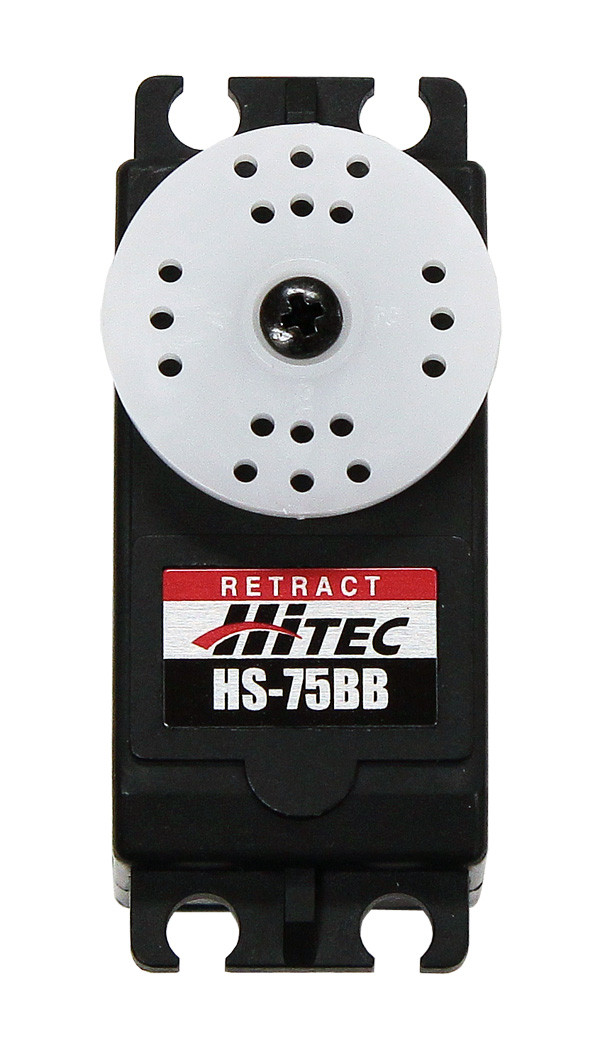

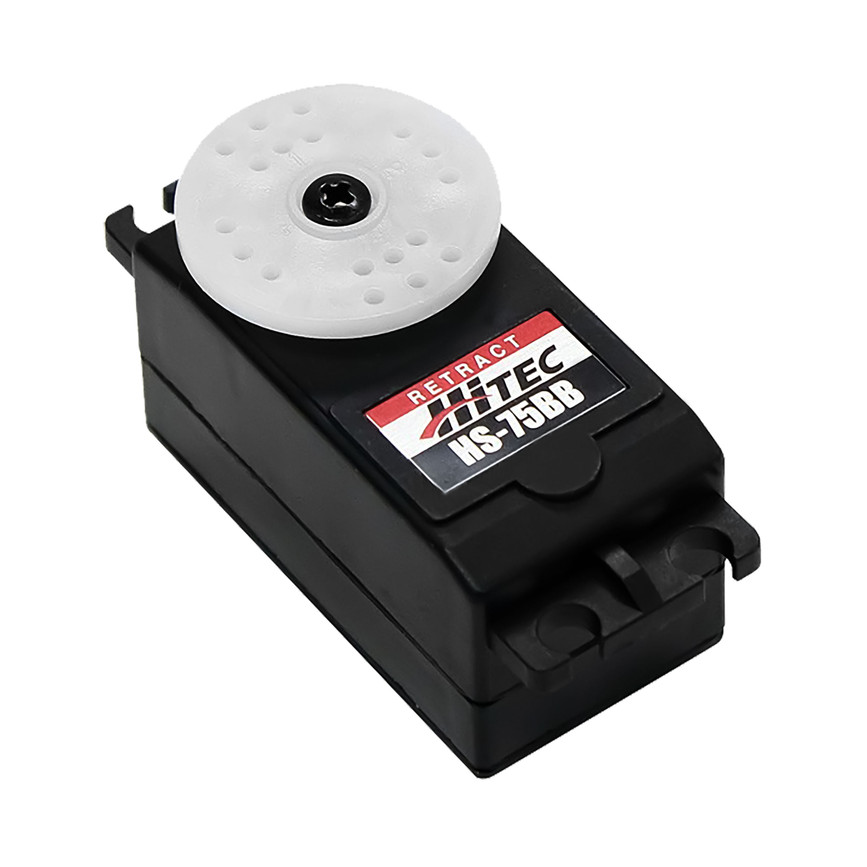

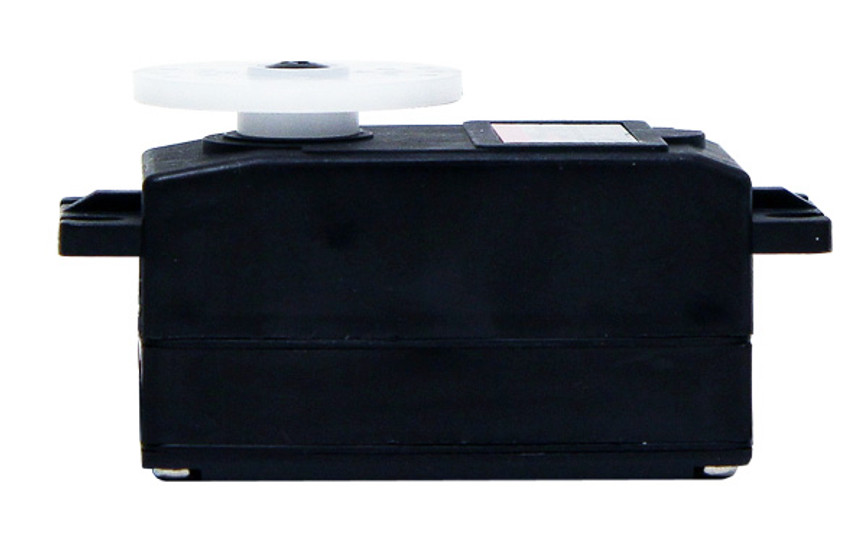

HS-75BB Servo-Clockwise (stock)
SKU:
$32.99

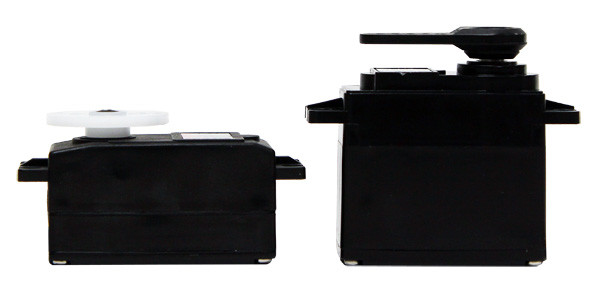

With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.
Tech Tips
Specs
| Output Shaft Style | C24T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.45sec/60° |
| No-Load Speed (6.0V) | 0.34sec/60° |
| Stall Torque (4.8V) | 91.65 oz-in (6.6 kg.cm) |
| Stall Torque (6.0V) | 113.87 oz-in (8.2 kg.cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 1mA |
| Current Drain - idle (6.0V) | 1.6mA |
| Current Drain - no-load (4.8V) | 150mA |
| Current Drain - no-load (6V) | 180mA |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 20µs |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | Indirect Switch Drive |
| Output Shaft Support | Top Ball Bearing |
| Gear Material | 1 Metal and 4 POM Resin Gears |
| Wire Length | 11.81" (300mm) |
| Weight | 1.23oz (35g) |
| Wire Gauge | 25AWG |
| Rotation | 180° |
