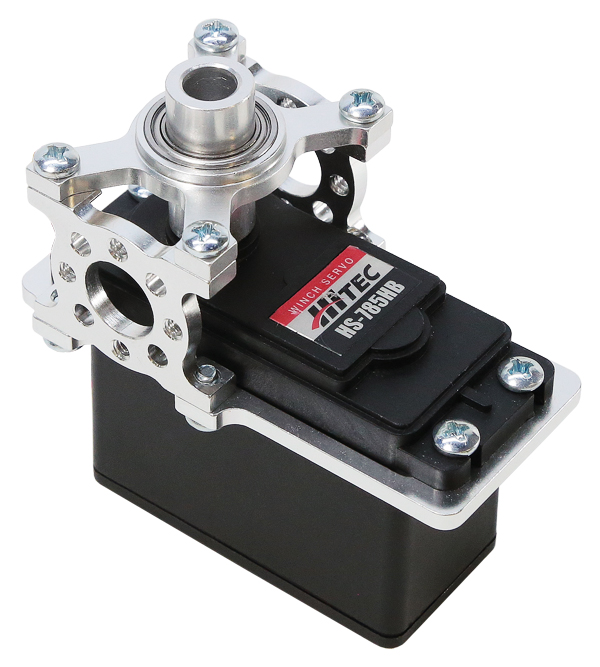

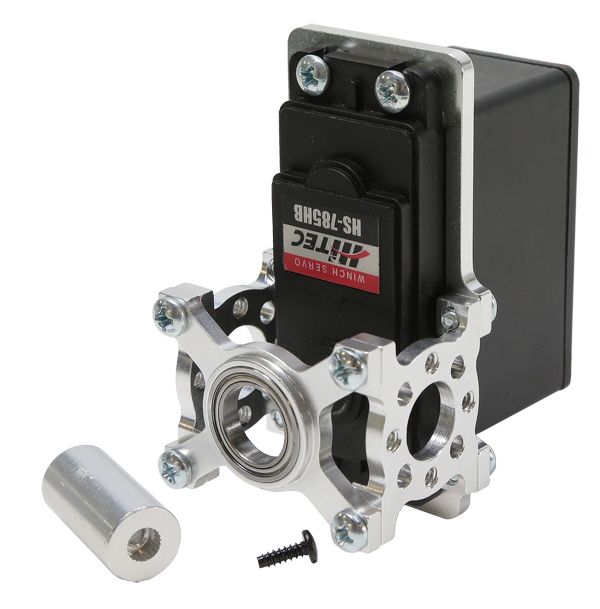

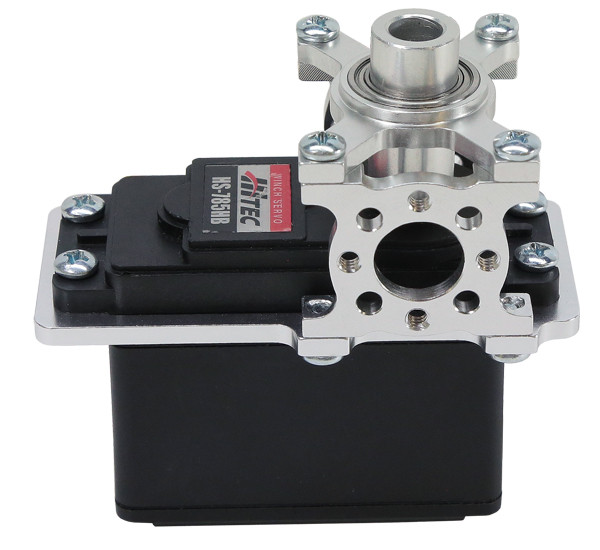

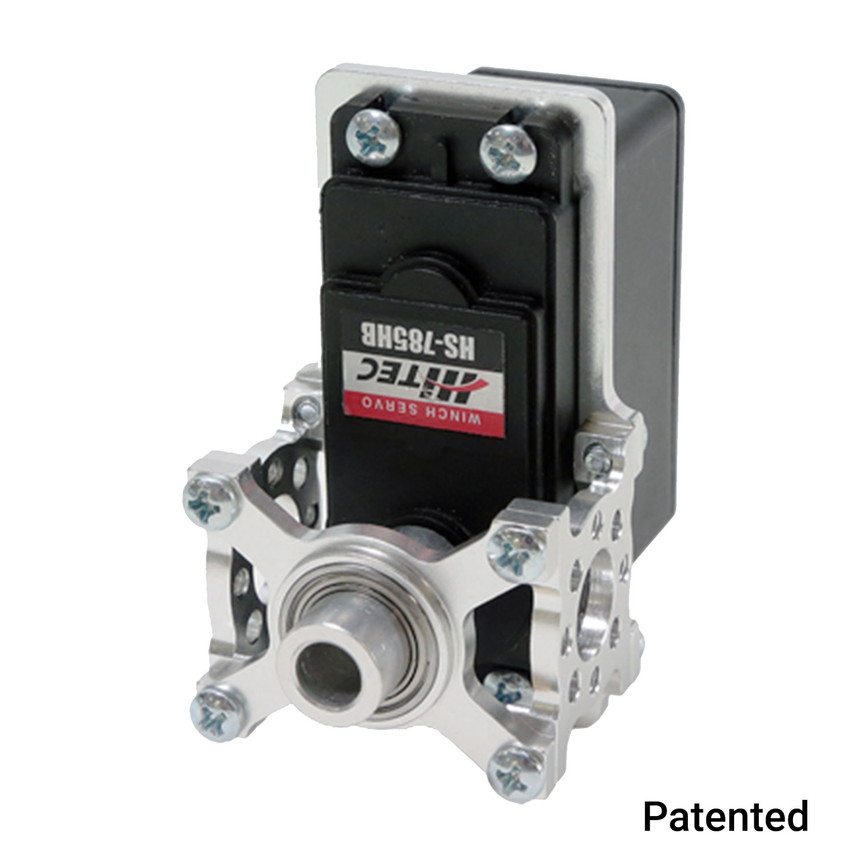

Large Plain Shaft ServoBlock™ (24T Spline)

SKU: Build System: Actobotics

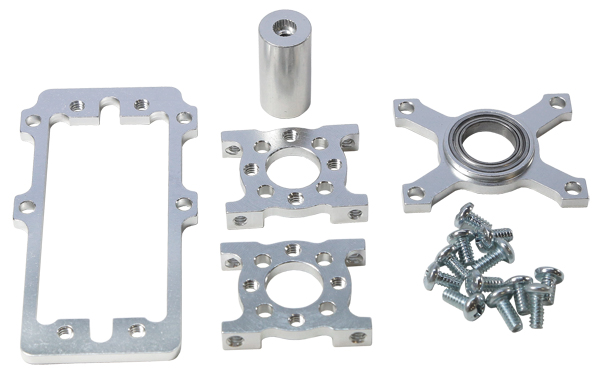

ServoBlocks increase a servo’s load-bearing capabilities by helping to isolate the lateral load from the servo spline and case. The extreme versatility of ServoBlocks allow users to create complex, extremely rigid, structures with ease using standard Hitec servos. Using a clamping hub (not included) on the ½” aluminum servo shaft provides an easy way to attach other components to the ServoBlock. Using a clamping hub with the plain shaft provides a simple way to index your assembly at any time without taking anything apart. The robust aluminum framework acts as a servo exoskeleton, greatly enhancing the mechanical loads the servo can withstand.  The 0.770” hub pattern is repeated throughout the framework to allow endless attachment options.  The Large Size ServoBlocks are compatible with the following Hitec servos: HS-755MGHS-755HBHS-765HBHS-785HB.  The kit ships unassembled and the servo is not included. ServoBlocks are a must have for any project that demands the most out of your servo! Patented.



Servo Spline 24 Tooth Spline
Weight 1.55 oz (no servo)
Servo Spline Compatibility 24 tooth (C24T Spline) spline
IP Patented
