Mini Maestro 24-channel USB

  • unassembled version
  • fully assembled labeled top view
  • bottom view
  • power pins
1 of 5

Be the first to review this product

Part
605084
605084
Status
In stock
This Product? Share It!

Details

The 24-channel Mini Maestro 24 raises the performance bar for serial servo controllers with features such as a native USB interface and internal scripting control. Whether you want the best servo control available or a general I/O controller (e.g. to interface with a sensor or ESC via your USB port), this compact, versatile device will deliver. This fully-assembled version ships with header pins installed.

The Mini Maestros are highly versatile (and compact) servo controllers and general-purpose I/O boards. They support three control methods: USB for direct connection to a computer, TTL serial for use with embedded systems, and internal scripting for self-contained, host controller-free applications. The channels can be configured as servo outputs for use with R/C servos or electronic speed controls (ESCs), as digital outputs, or as analog/digital inputs. The extremely precise, high-resolution servo pulses have a jitter of less than 200 ns, making these servo controllers well suited for high-performance applications such as robotics and animatronics, and built-in speed and acceleration control for each channel make it easy to achieve smooth, seamless movements without requiring the control source to constantly compute and stream intermediate position updates to the Mini Maestros. The Mini Maestros also feature configurable pulse rates from 1 to 333Hz and can generate a wide range of pulses, allowing maximum responsiveness and range from modern servos.

SPECS

A free configuration and control program is available for Windows and Linux, making it simple to configure and test the device over USB, create sequences of servo movements for animatronics or walking robots, and write, step through, and run scripts stored in the servo controller. The Mini Maestro’s 8KB of internal script memory allows storage of up to approximately 3000 servo positions that can be automatically played back without any computer or external microcontroller connected.

Because the Mini Maestro’s channels can also be used as general-purpose digital outputs and analog or digital inputs, they provide an easy way to read sensors and control peripherals directly from a PC over USB, and these channels can be used with the scripting system to enable creation of self-contained animatronic displays that respond to external stimuli and trigger additional events beyond just moving servos.

Micro-Maestro-6CH-USB-Servo-Controller---control-center-screen-shot-600px

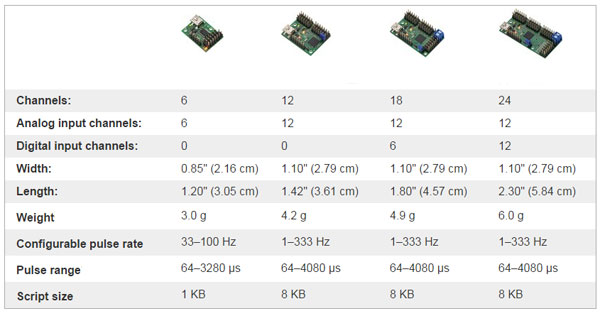

Maestro-Comparison-Table

Product Weight 12.2g
Number of Channels 24
Input Supply Voltage Range 5V -16V
Max PWM Signal Range (Standard) 64 to 4080 μs
Baud Rate 300 - 200,000 bps
RESOURCES



Download Attachment
pdfMaestro Servo Controller Users Guide(1.82 MB )Download
