MPT1100-SS Pan & Tilt System


Currently Sold Out

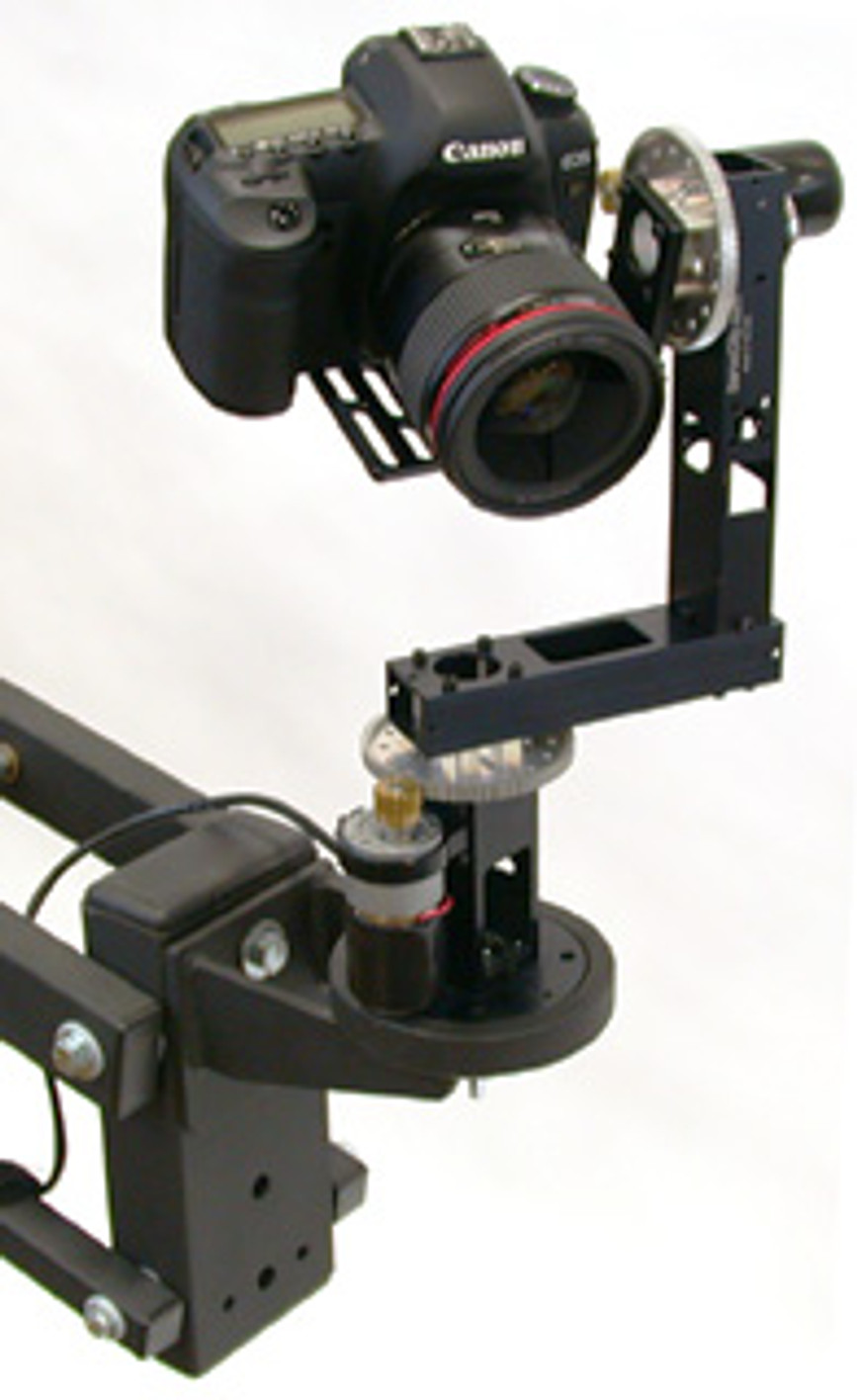

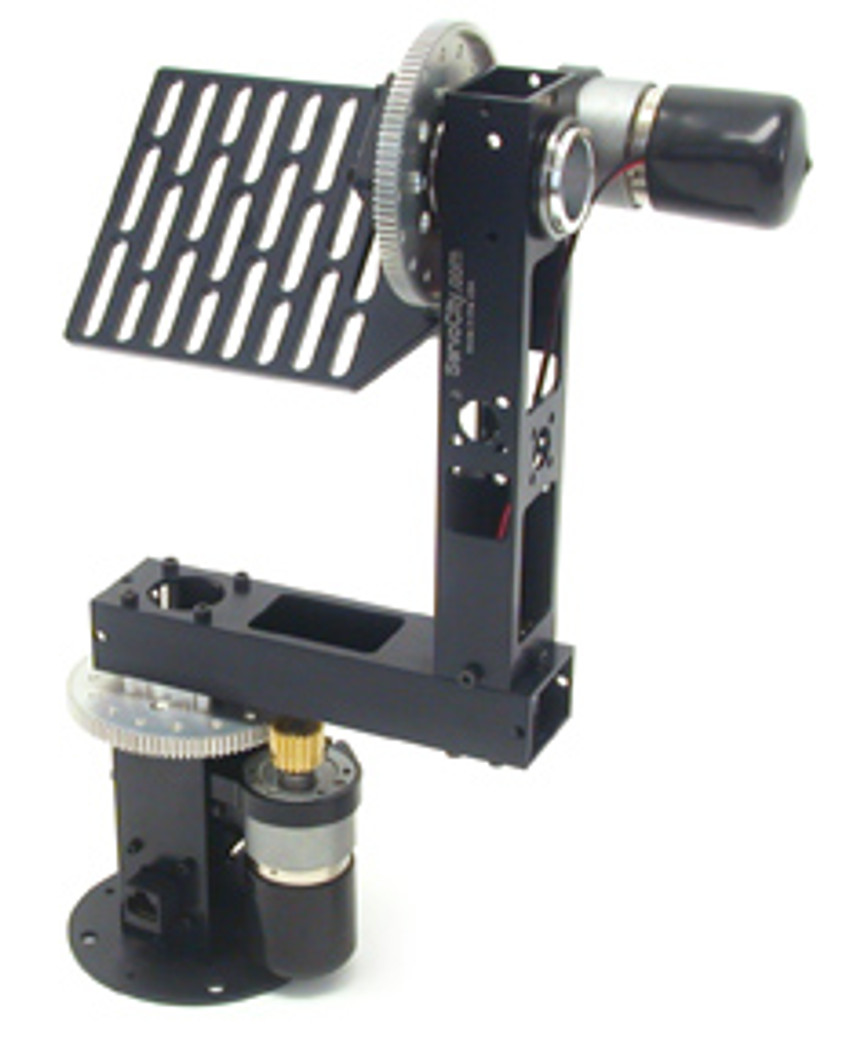

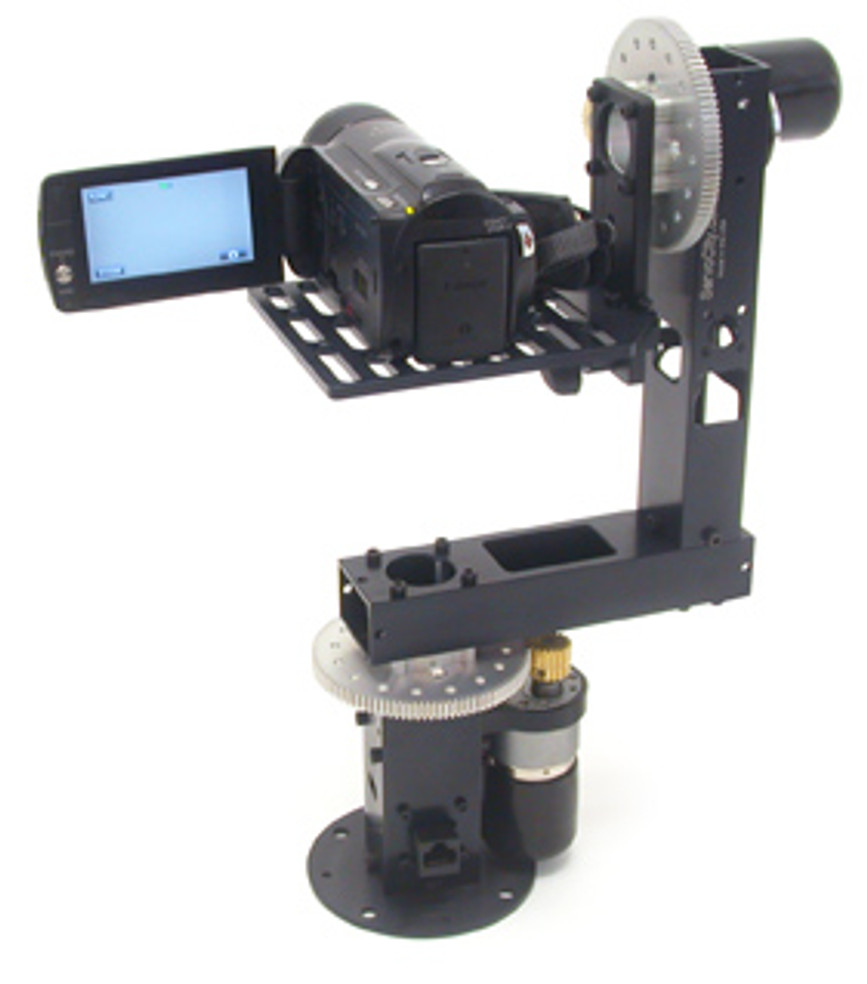

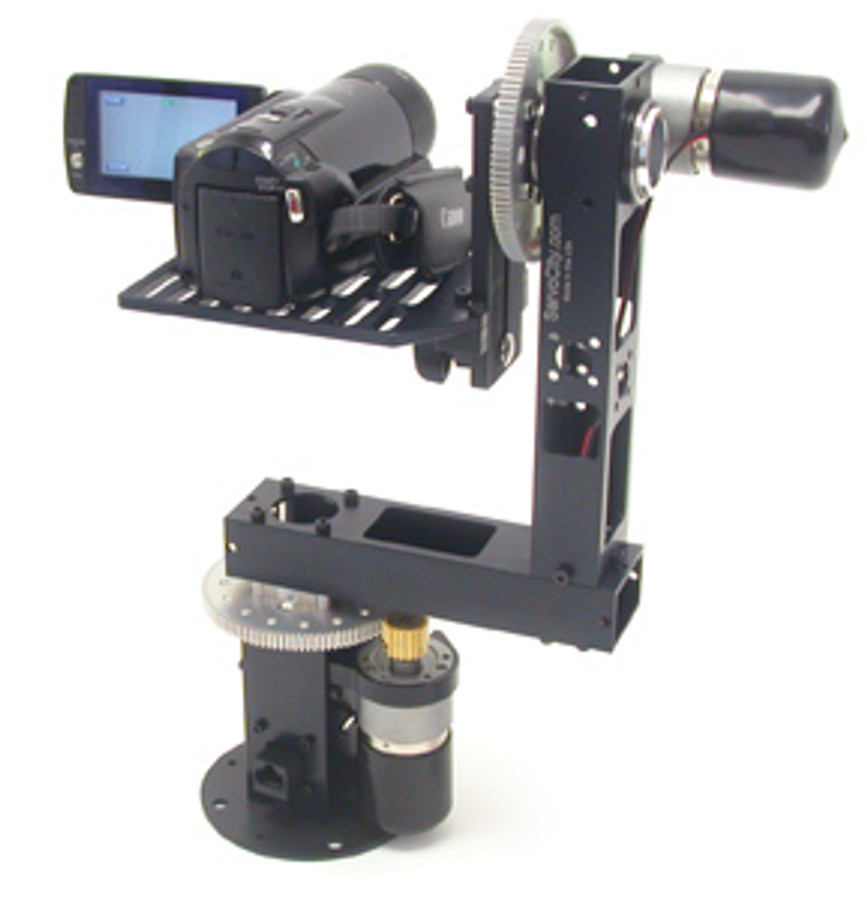

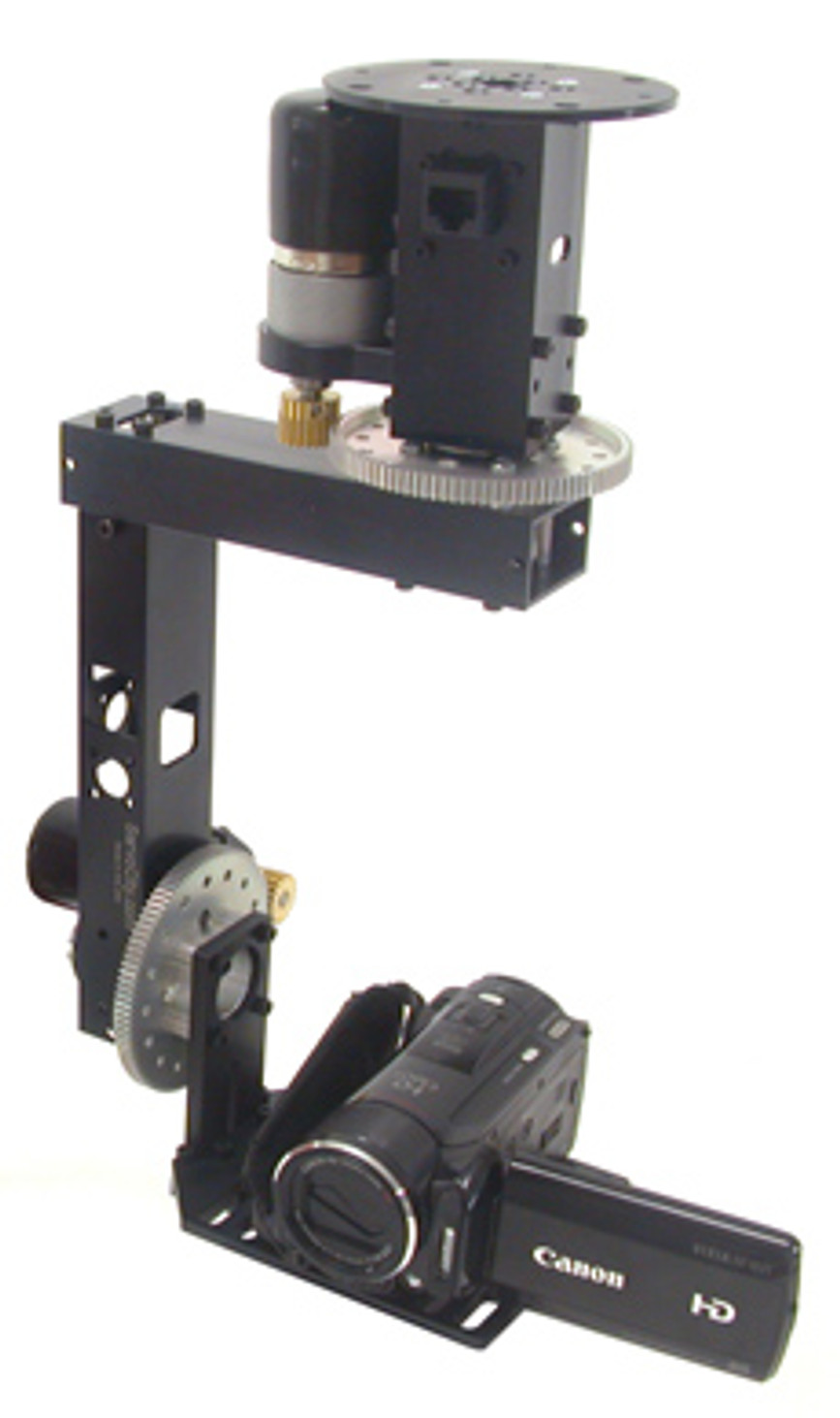

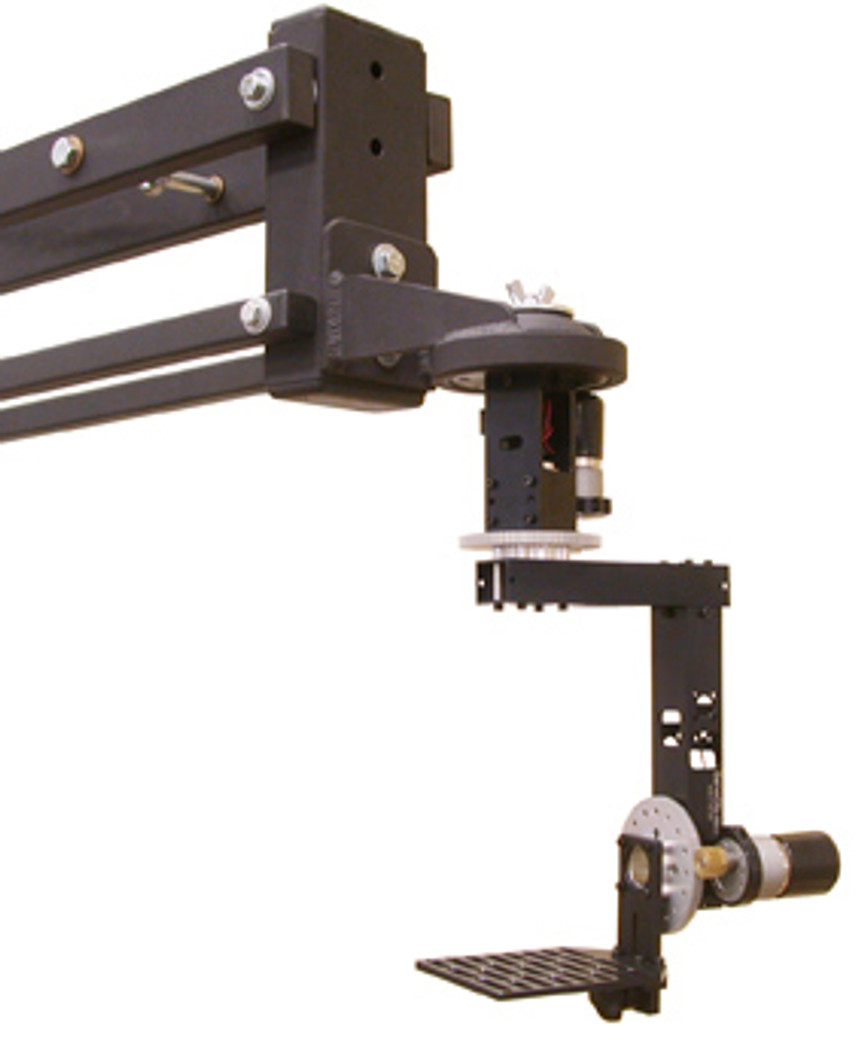

The pan and tilt head is the ideal size for DSLR and smaller bodied cameras.  The super light aluminum structure weighs in at only 2.9lbs, yet is able to handle up to a 6 pound payload!  Dual ball bearings on each axis support the 1” hollow aluminum shafting allowing you to route camera wires through the pan and tilt head.  The head easily attaches to a jib crane in the upright or hanging position without any tools (Jib Mounting Kit sold separately).  The MPT1100-SS is precisely controlled by a digital joystick controller. The two channel controller is fully proportional and the maximum speed of each axis can be limited by the min/max knobs for the ultra-slow shots.  Setup is quick and easy as the controller links to the pan and tilt head with a single CAT6 cable and is powered by a 12V power supply.  The system ships as a ready-to-run unit that includes a pan & tilt head, joystick control, 25 foot CAT6 cable, and 12V power supply. Camera shown in images not included. Patented.

View the User Manual
Learn how to Mount on a Tripod


  •  Pan & Tilt Head

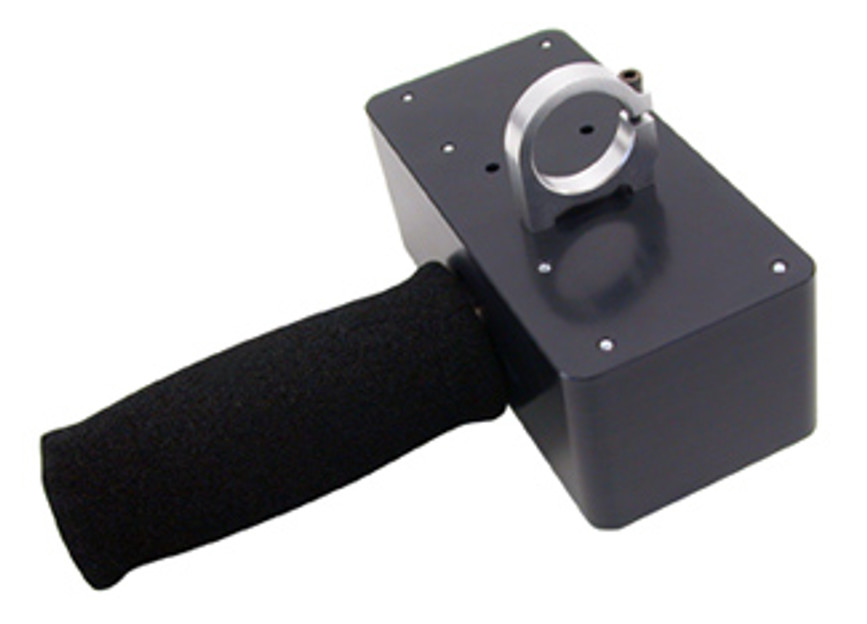

  • Joystick Control (Proportional)
  • 25’ CAT6 Cable
  • 12V Power Supply
  • Camera Mounting Screw


  • Adjustable Framework
  • Aluminum Hollow Shafts
  • Aluminum Construction (Anodized)
  • 32 Pitch Gear Drive
  • Precision Gearmotors
  • 12 Volt Operation
  • Fully Assembled

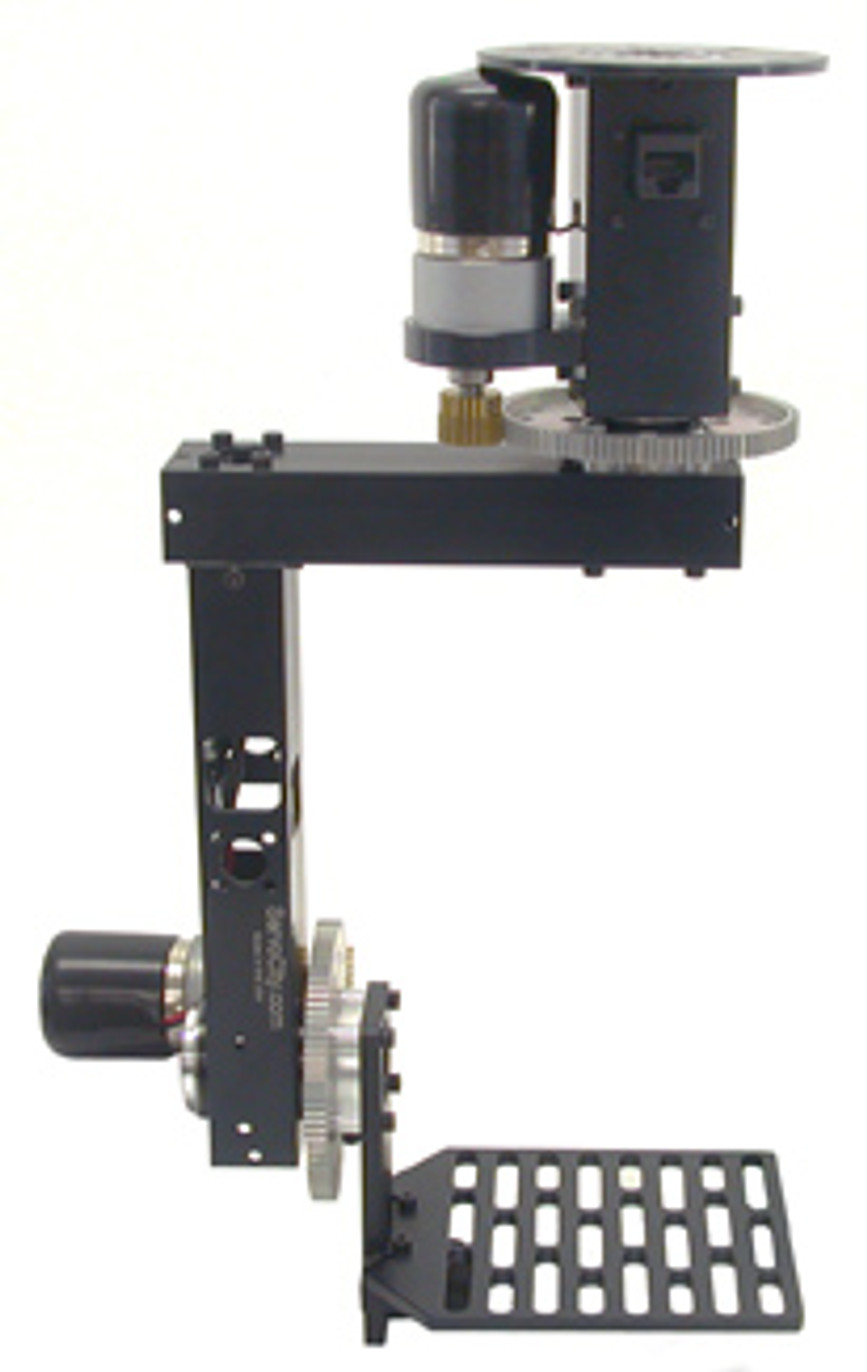

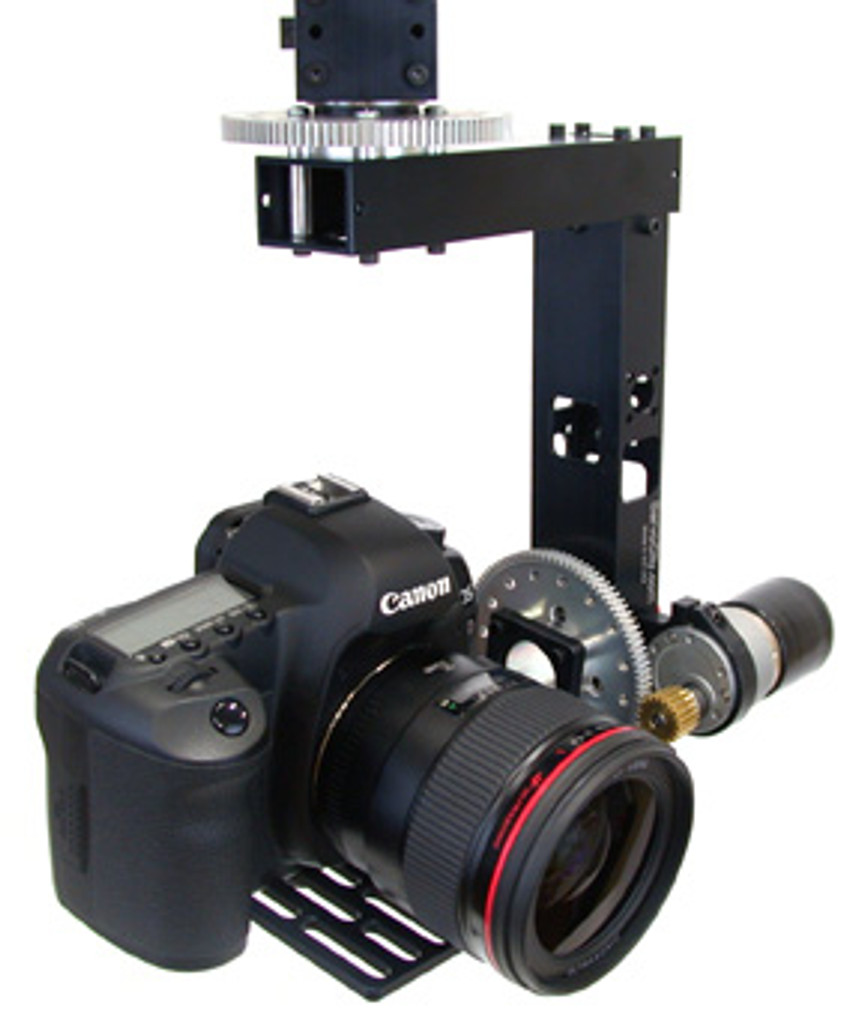

MPT1100-SS Hanging SchematicsMPT1100-SS & PT785-S bottom plate

Camera Plate SchematicsMPT1100-SS schematics - resize


Maximum Payload 6 lbs
Weight 46.4 oz (2.90 lbs)
