Nomad™

  • Include parts (see full list below)
  • Size comparison to the Dagu Wild Thumper Robot Kit

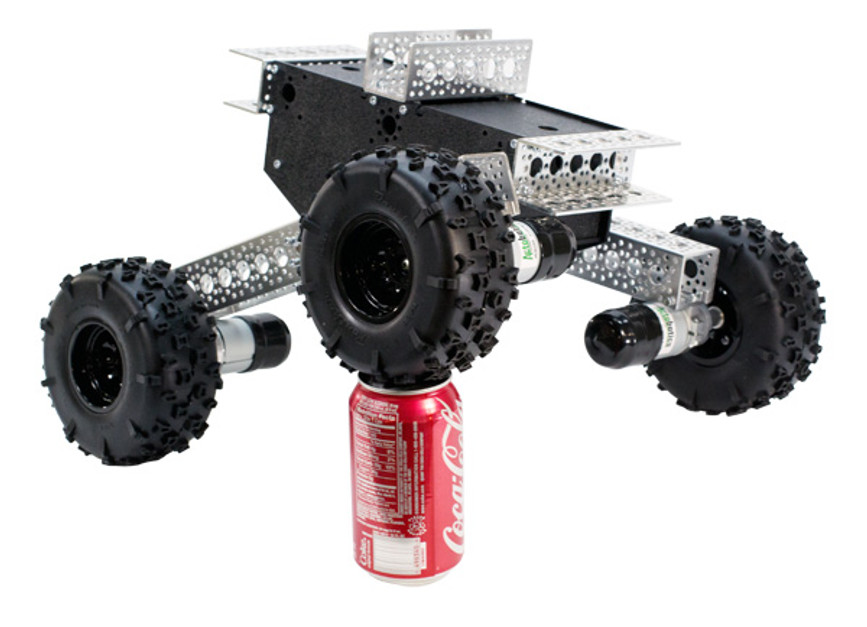

  • The suspension system offers extreme travel
  • The fun begins where the road ends!
  • The suspension system offers extreme travel
  • The suspension system offers extreme travel
  • 5.4” diameter by  2.25” wide heavy duty tires
  • The suspension system offers extreme travel
1 of 10

Be the first to review this product

Price
$279.99 Sign up for Price Alert
Part
637136
637136
Status
In stock
This Product? Share It!

Details

Nomad Logo (70px tall)
This is the Nomad 4WD Off-Road Chassis kit! A remarkably easy to assemble robotic platform capable of taking you places a normal chassis can’t go. What makes this chassis kit great is not only its vast amount of attachment points for various add-ons, but also the fact that it is easily and fully configurable to fit your needs! This chassis is equipped with four 5.4" diameter by 2.25" wide heavy duty tires, four super duty, ball-bearing planetary gearmotors with full metal gears and a ball-bearing pivot suspension. Also included in the 4WD Off-Road Chassis kit is a large central ABS plastic body with two large access panels that open up to a cavity large enough for a 7.2V NiCAD/NiMH or other lipo battery and electronics to fit comfortably. This central body also has a multitude of 0.77" hub patterns, cutouts at the bottom to run motor wires through, and since it is made out of ABS plastic drilling holes for additional mounting options is a breeze. Watch the step by step assembly video.

SPECS



INCLUDED PARTS:
1x 6" Aluminum Channel (#585446)
2x 12" Aluminum Channel (#585454)
3x 4.5" Aluminum Channel (#585444)
4x Robot Wheels (#82062)
4x Off-Road Tires (#595644)
4x 313 RPM HD Precision Planetary Gear Motor (#638280)
2x 6mm Bore, 12mm Hex Wheel Adaptor D (pair) (#545652)
4x Round Grommet (#636088)
5x 90 Degree Quad Hub Mount C (#545360)
1x Shaft - D-Shaft (Stainless; ¼"D x 8.00"L) (#634088)
5x Side Mount Bracket (#585470)
2x Set Screw Hub - ¼" Bore (#545548)
1x Bearing Mount - Quad Block (¼" Bore) (#535130)
2x 1/4” ID x 1/2” OD Flanged Ball Bearings (#535198)
12x Shaft Spacer - ¼" (#633104)
4x Machine Screw - Socket Head (6-32 ; ¼"; 25 pack) (#632106)
4x Attachment Block (#585600)
4x 32mm Clamping Motor Mount (#555176)
4x Gearmotor End Cap (#9735K65)
7x ABS Enclosure Panels

ASSEMBLY REQUIRES (not included):
Phillips Head Screwdriver
7/64 Hex Key
3/32
Hex Key

Dimensions 15.9" x 8.0"
Product Weight 6.45 lbs
Maximum Speed 5MPH @ 12 Volts
Tire Size 5.4” diameter by 2.25” wide heavy duty tires
Motor Size Compatibility Heavy Duty Premium Planetary Gearmotors
