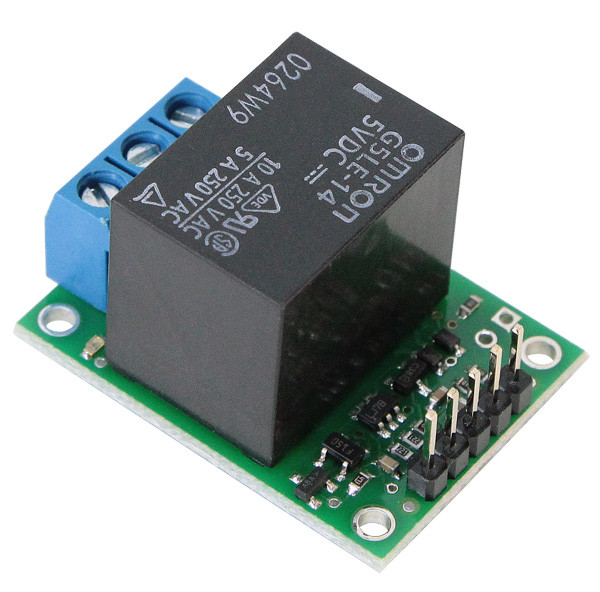

RC Switch with Relay

  • bottom of board
  • shown with hardware included

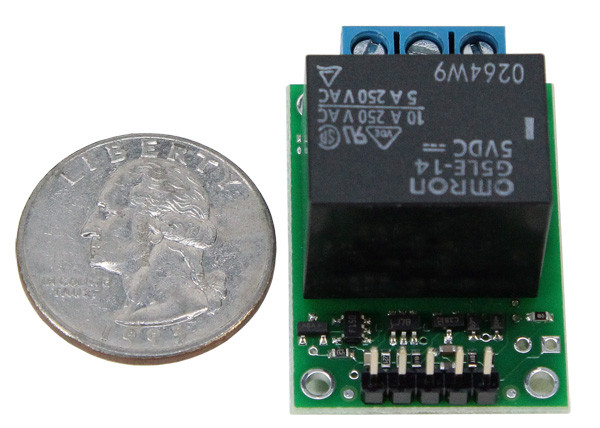

  • shown with quarter for scale
1 of 4

Be the first to review this product

Part
605092
605092
Status
In stock
This Product? Share It!

Details

This RC relay enables easy control of large, electrically isolated loads in radio control (RC) systems. The activation threshold and direction are configurable, and a safe-start feature reduces the likelihood of unexpected activation. This assembled version ships with the 5V relay, terminal block, and straight male header pins soldered in, so it can be integrated into hobby RC systems without the need for additional soldering. The included power relay is an Omron G5LE-14-DC5 and is rated for up to 10A under most conditions.The RC switch measures the width of incoming RC pulses and compares it to a user-configurable threshold (with ±64µs of hysteresis) to decide whether to turn on the MOSFET. By default, the threshold is approximately 1700µs, with switch activation occurring above the threshold (longer pulses), but the switch has a learning mode that allows you to change the threshold and the activation direction. We generally recommend using a 4- or 5-cell NiMH or NiCD battery pack to power the switch. The battery pack will typically be connected to an RC receiver or servo controller, which passes the power on to the RC switch. The board has four mounting holes that work with #2 or M2 screws (not included)

This switch includes a 5V Omron relay, header pins, and terminal block soldered in. A 1x2-pin male header and a shorting block are also included and can be used to configure the device. This unit can be incorporated into an existing RC system without the need for any additional soldering

Dimensions: 1” x 1.35” x 0.9”

Outputs and indicator LED

The RC switch provides feedback about what state it is in via a yellow indicator LED. Status information is also provided on two output pins:
- The GOOD pin indicates the presence of a valid RC signal (10-330 Hz pulse rate, 0.5-2.5 ms pulse width).
- The OUT pin indicates whether the relay is activated (i.e. the relay coil is energized).



SPECS

2804-RC-Switch-with-Relay-diagram

Product Weight 17g (0.60oz)
Poles 1
Throws 2
Throw Persistence Momentary
Max Current 10A
Switch Style RC Switch
Mounting Style The board has four mounting holes that work with #2 or M2 screws (not included).
Contact Style Header pins, screw terminal blocks
RESOURCES



Download Attachment
pdfUser Manual(1.34 MB )Download
