Scout™

  • The 7.5” x 10.5” chassis provides a huge platform for electronics and other components
  • The distance between the top and bottom plates (1.32”) is designed to fit our hub mounts for easy attachment of other parts
  • Scout kit next to a can for scale
  • The parts included with the Scout
  • Shown customized with Actobotics bumpers
  • The distance between the top and bottom plates (1.32”) is designed to fit our hub mounts for easy attachment of other parts
  • Shown customized with Actobotics bumpers
  • The 4.3” off-road tires are great for both on-road and off-road excursions!
  • Scout kit next to a can for scale
  • Shown customized with Actobotics bumpers
1 of 11

Be the first to review this product

Price
$169.99 Sign up for Price Alert
Part
637138
637138
Status
In stock
This Product? Share It!

Details

Scout-logo---250px

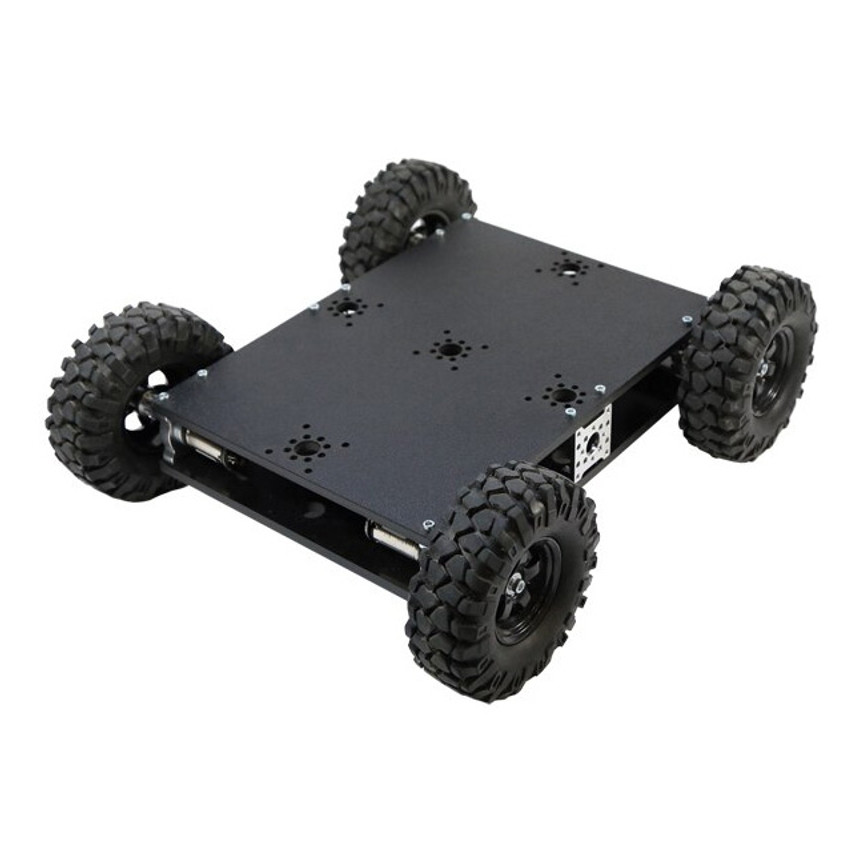

The Scout™ offers a great starting platform for any robotics project. With 624rpm ball-bearing, metal geared, planetary gearmotors and high-traction 4.3” off-road tires, this is one powerful platform! The 7.5” x 10.5” chassis plates offer a large base for customization and electronics. The distance between the top and bottom plates (1.32”) is designed for our hub mounts to fit perfectly inside; allowing for quick and easy attachment of other Actobotics® components. The 1/4” ABS construction is durable, but also easy to drill for custom add-ons. Assembly requires a 7/64, 9/64 and 3/32 Hex Key (sold separately). We can’t wait to see what you do with this stealthy, low-profile robot; be sure to send us photos of your custom build! Watch the assembly video.

SPECS

Scout-Parts-300px INCLUDED PARTS:
(4) 4.3” Off-road Tires with foam
(4) Robot Wheels - Black
(4) 22mm Bore Motor Mounts
(4) 624 RPM Planetary Gearmotors
(2) 90 Degree Quad Hub Mount C
(2) 12mm Hex Wheel Adaptors (4mm bore)
(2) ABS Plates
(25) 7/16” x 6-32 Socket Head Cap Screws

MOTOR SPECIFICATIONS:
Operating Voltage Range: 3~12VDC
Rated Voltage: 12VDC
Rated Load: 0.6 kgf-cm (8.33 oz-in)
Operating Temperature: -10 ~ +60°C
Max No-Load Current: 0.19A
No-Load Speed: 624 RPM
Min. Stall Torque: 3 kgf-cm (41.7 oz-in)
Max. Stall Current: 4.9A @ 12VDC
Dielectric Strength: 250 VAC
Motor Brush Type: Graphite
Output Power at Max. Efficieny: 3.2W
Gear Type: Planetary
Gear Ratio: 19:1
Bearing Type: Dual Ball Bearing
Shaft size: 4mm (0.1575”)
Net Weight: 82g (2.89oz) / each

Product Weight 3.35 lbs (53.6 oz)
Tire Size 4.3” off-road tires
