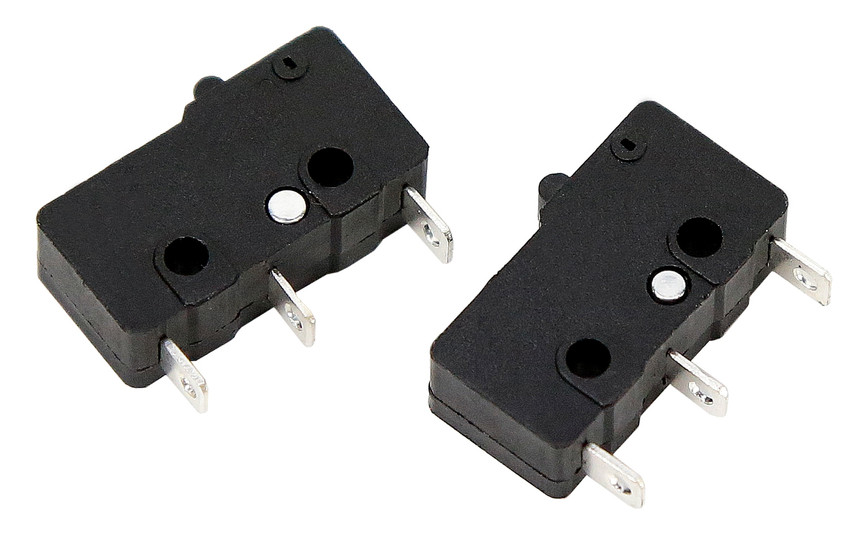

Micro Limit Switch (No Lever) - 2 Pack
SKU:
$2.99
/ 2 Pack
These awesome little 5 amp units are perfect to use in conjunction with our goBILDA® components. Besides this style, we offer three other limit switches to cover just about any need you have, whether you’re building a slider, a 3D printer or a killer robot. Make sure you check out our limit switch mounts, too!
Downloads
Specs
| Max Voltage | 250VAC |
|---|---|
| Switch Style | Limit Switch |
| Alternate SKU | 605628 |
| Weight | 2.0g Each |
| Max Current | 6A |
| Connector Style | 3.2mm Width Spade Terminals |
| Continuous Current | 2A |
| Switching Life | 200,000 Cycles |
| Environmental Temperature | -25-85℃ |
| Contact Resistance | ≤0.02Ω |
| Insulation Resistance | ≥100MΩ |
