SV1270TGP High Voltage Coreless Digital Servo
SKU:

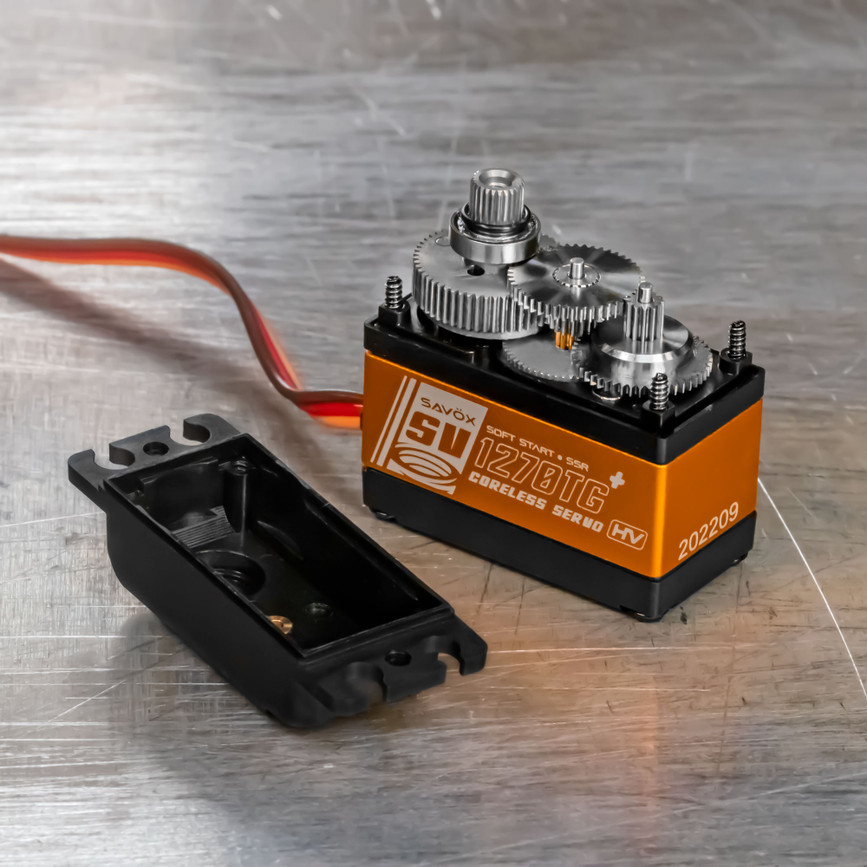

This is the Savox SV-1270TG Digital High Voltage "Monster Torque" Titanium Gear Servo. Built to handle extreme requirements, this servo delivers.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
102°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
160°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
160°
Controllers such as the Actobotics® Servo Controller, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Direction | Clockwise |
|---|---|
| Output Shaft Style | H25T Spline |
| Voltage Range | 6.0V ~ 7.4V |
| No-Load Speed (7.4V) | 0.11 sec/60° |
| No-Load Speed (6.0V) | 0.14 sec/60° |
| Stall Torque (6.0V) | 361.1 oz-in (26.0 kg.cm) |
| Stall Torque (7.4V) | 486.1 oz-in (35.0 kg.cm) |
| Max PWM Signal Range | 800-2200μsec |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10°C to 50°C |
| Current Drain - idle (6.0V) | 5mA |
| Current Drain - idle (7.4V) | 5mA |
| Current Drain - no-load (6V) | 120mA |
| Current Drain - no-load (7.4V) | 150mA |
| Current Drain - stall (6V) | 5500mA (5.5A) |
| Current Drain - stall (7.4V) | 6800mA (6.8A) |
| Motor Type | Coreless |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | Titanium |
| Wire Length | 11.0" (279.4mm) |
| Weight | 1.97oz (56g) |
| Wire Gauge | 22 AWG |
| Servo Size | Standard |
| Max Rotation | 160° |
| Travel per µs | 0.114°/µsec |
| Previous SKU | SV1270TG |
