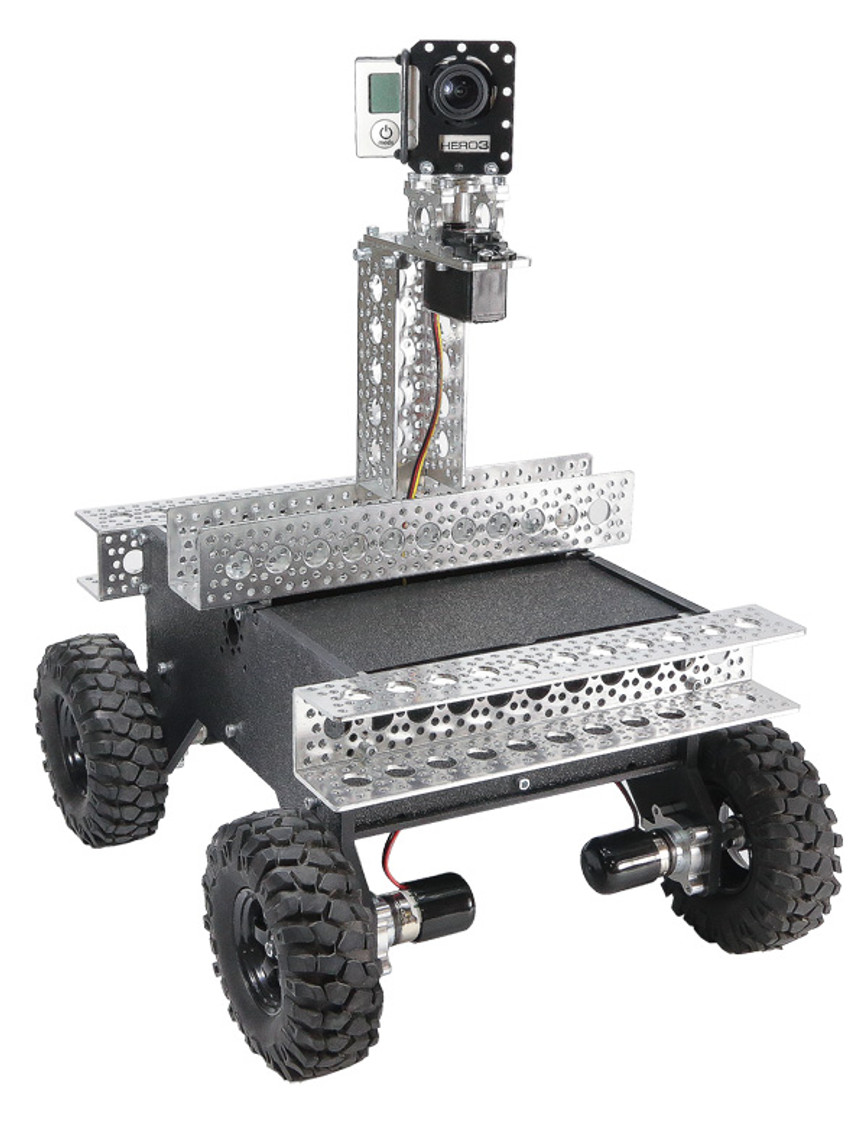

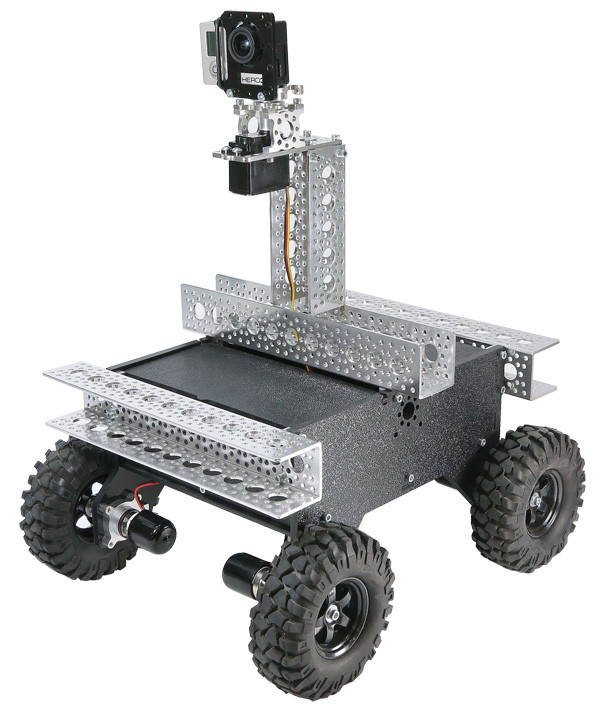

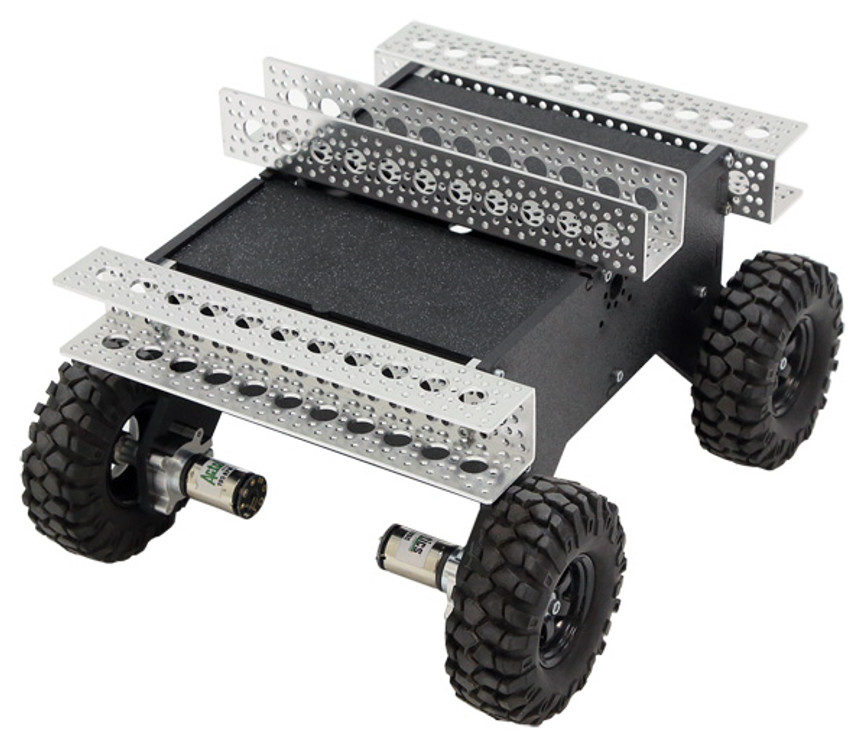

Warden™ Robot Chassis

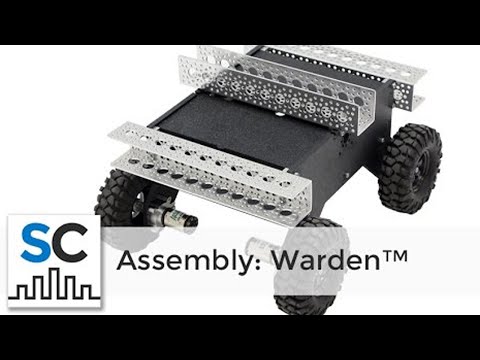

The Warden™ is one tough robot platform! With 4.3” off-road tires and ball-bearing planetary gearmotors, this rover has the power to take you over some pretty rugged terrain. The 8.5” x 6.5” x 2.5” ABS body has two access panels to the large storage area, providing a quick and easy way to reach your batteries and other electronics. With 9” Actobotics® aluminum channel mounted to the front, top, and back of the Warden, there are countless mounting options for sensors, cameras, and other components. Like channel, the side plates incorporate our .770” and 1.50” hub patterns found throughout the Actobotics® line. This makes it very easy to attach other components directly to the chassis without special customization. However, the 1/8” and 1/4” ABS plastic used for the body is easy to drill if you choose to mount accessories in other locations. With 5 spoke black wheels and high tread tires, the Warden not only drives great, but it looks cool too! Whether you’re going on an on-road or off-road adventure...the Warden is the kit for you. Assembly requires only a 3/32, 7/64 & 9/64 hex key (not included). Watch the step by step assembly video.

Included Parts:

  • (4) 195 RPM 3-12V Precision Planetary Gearmotors
  • (4) Black Robot Wheels
  • (4) 4.3” Robot Tires with Foam
  • (4) 12mm Hex Wheel Adaptor C (4mm Bore)
  • (4) 22mm Bore Clamping Hub D
  • (8) Attachment Block B
  • (3) 9” Aluminum Channel
  • (6) 90 Degree Dual Side Mounts
  • (25) 0.250” x 6-32 Socket Head Cap Screws
  • (50) 0.500” x 6-32 Socket Head Cap Screws
  • (7) ABS Chassis Plates

Assembly Requires (not included)

  • 7/64 Hex Key
  • 9/64 Hex Key
  • 3/32 Hex Key


Weight 4.05 lbs (64.8 oz)
Tire Size 4.3” off-road tires
Motor Compatibility Premium Planetary Gearmotor
