X-Rail Surface Adaptor Bracket (2 pack)

1 of 8

Be the first to review this product

Part
585072
585072
Status
In stock
This Product? Share It!

Details

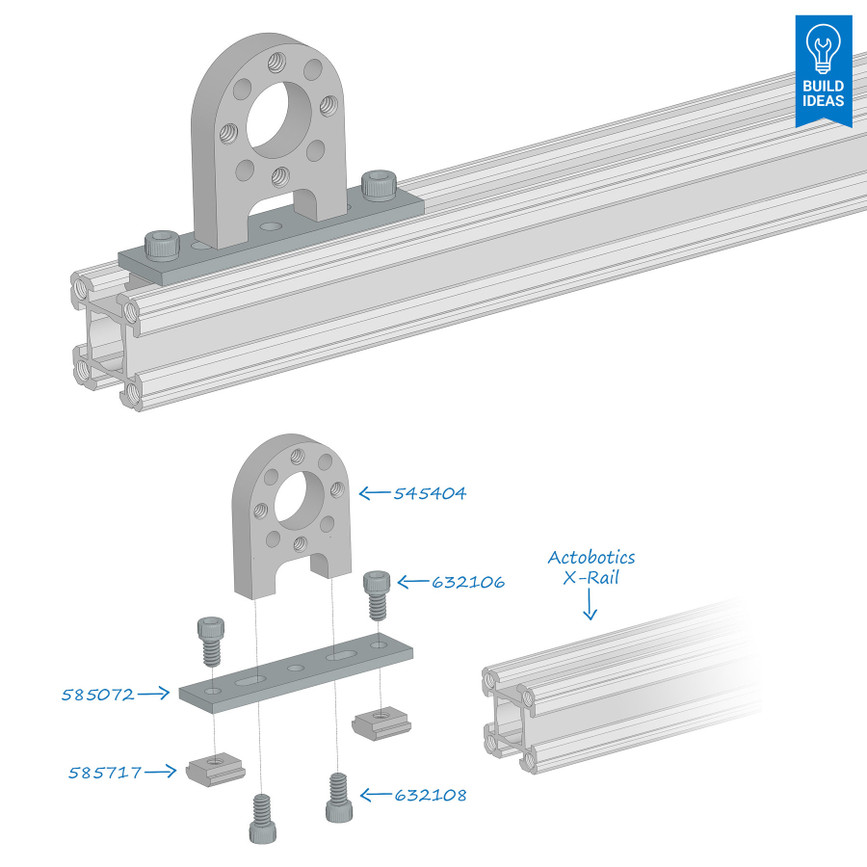

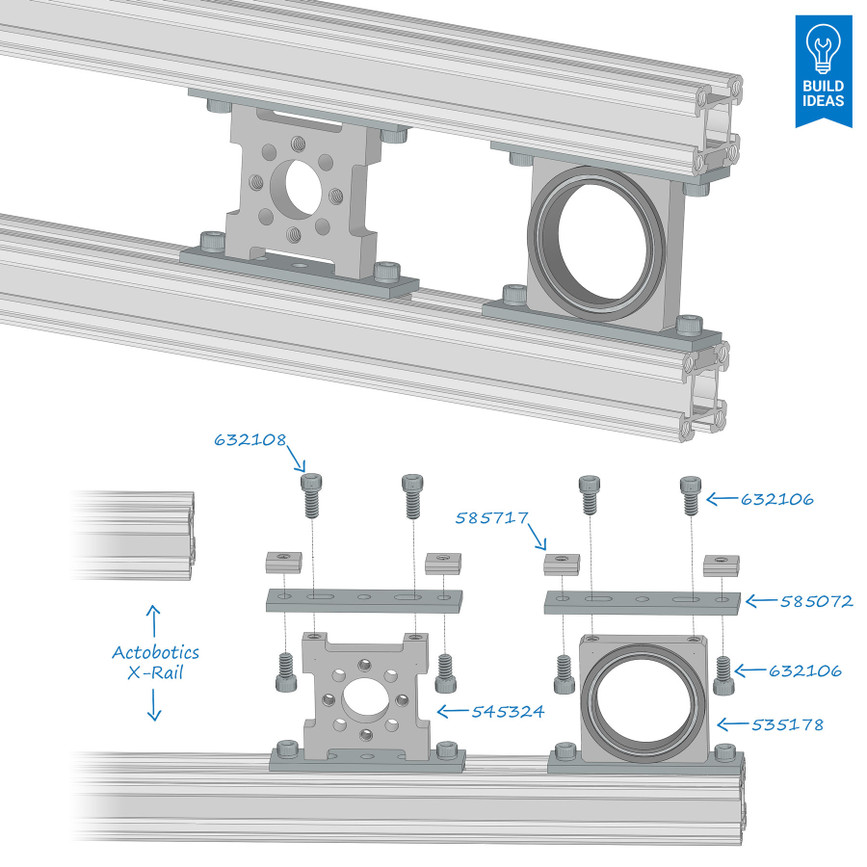

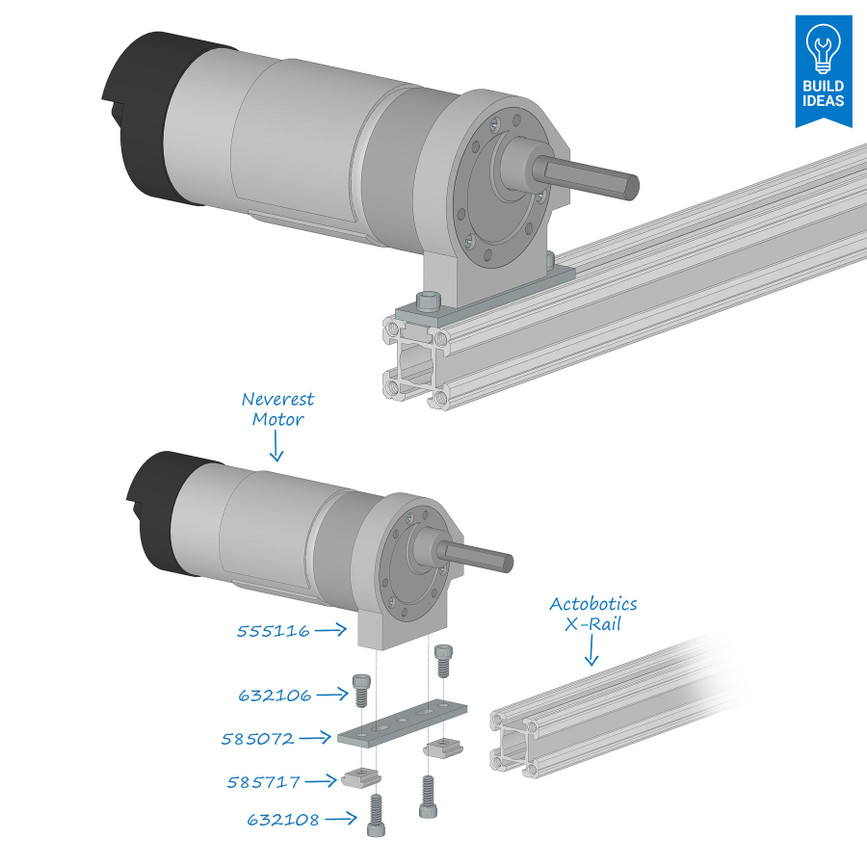

The X-Rail Surface Adaptor Bracket allows you to attach an Actobotics part with threaded holes to the side of an X-Rail.  This part has slotted thru-holes that align with both the 0.770" pattern as well as the side of the 1.5" pattern (measuring 1.061").  When the bracket is fastened to the attaching part, the 6-32 screw heads will fit down inside the X-Rail slot so that the surface adaptor bracket can sit flush against the side of the X-Rail.  The bracket then fastens using the outer pair of holes to the X-rail using (2) Single X-Rail Mounts and (2) 6-32 x 1/4" length screws.

SPECS

585072

Product Weight 0.35 oz
Material Steel
Finish Zinc Plated
