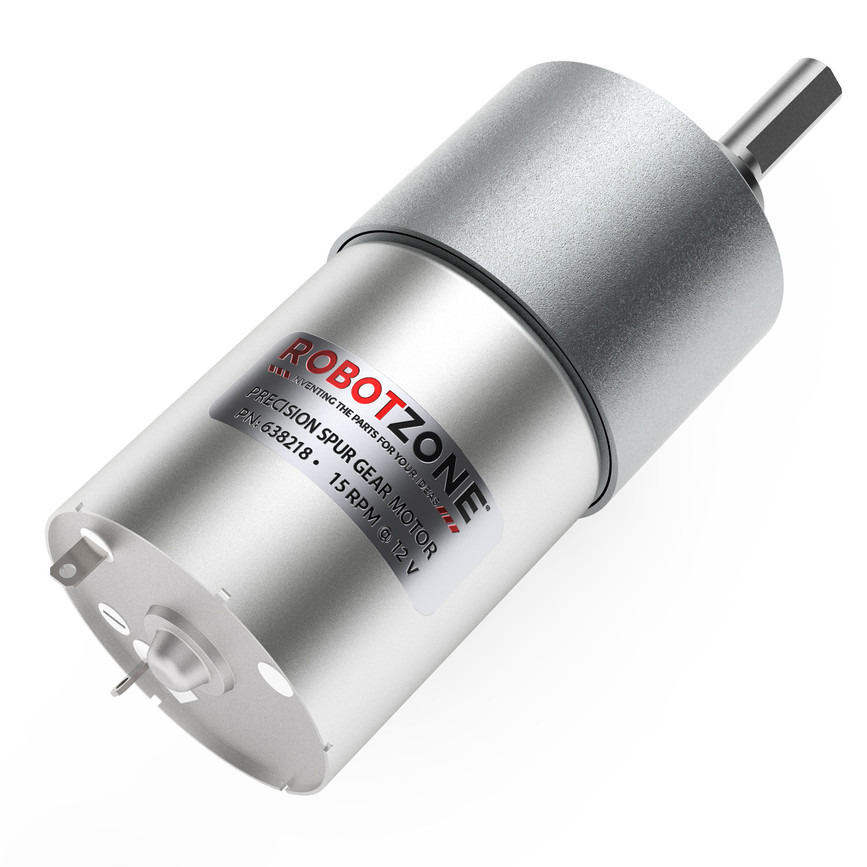

15 RPM Precision Spur Gear Motor
SKU:
Tech Tip
Stalling this gearmotor could cause gear damage.
Downloads
Specs
| Output Shaft Style | D-shaft |
|---|---|
| Motor Type | Brushed DC |
| Output Shaft Support | Bushing |
| Gear Material | Brass Primary, Plastic Secondary Steel on Subsequent Stages |
| Weight | 230g (8.11oz) |
| Voltage (Nominal) | 12V |
| Voltage Range (Recommended) | 3V -12V |
| Speed (No Load @ 12VDC) | 15 rpm |
| Current (No Load @ 12VDC) | 0.08A |
| Current (Stall @ 12VDC) | 1.3A |
| Torque (Stall @ 12VDC) | 361 oz-in (26 kgf-cm) |
| Gearbox Style | Straight Cut Spur |
| Connector Type | Male Spade Terminal |
| Motor Brush Type | Graphite |
| Gear Ratio | 200:1 |
