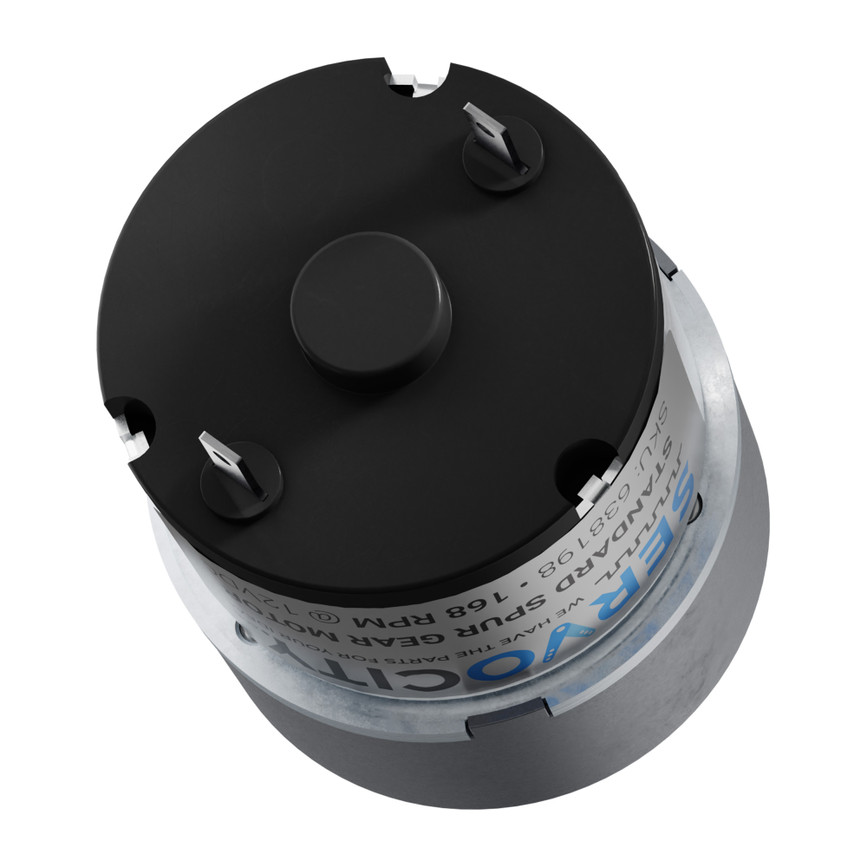

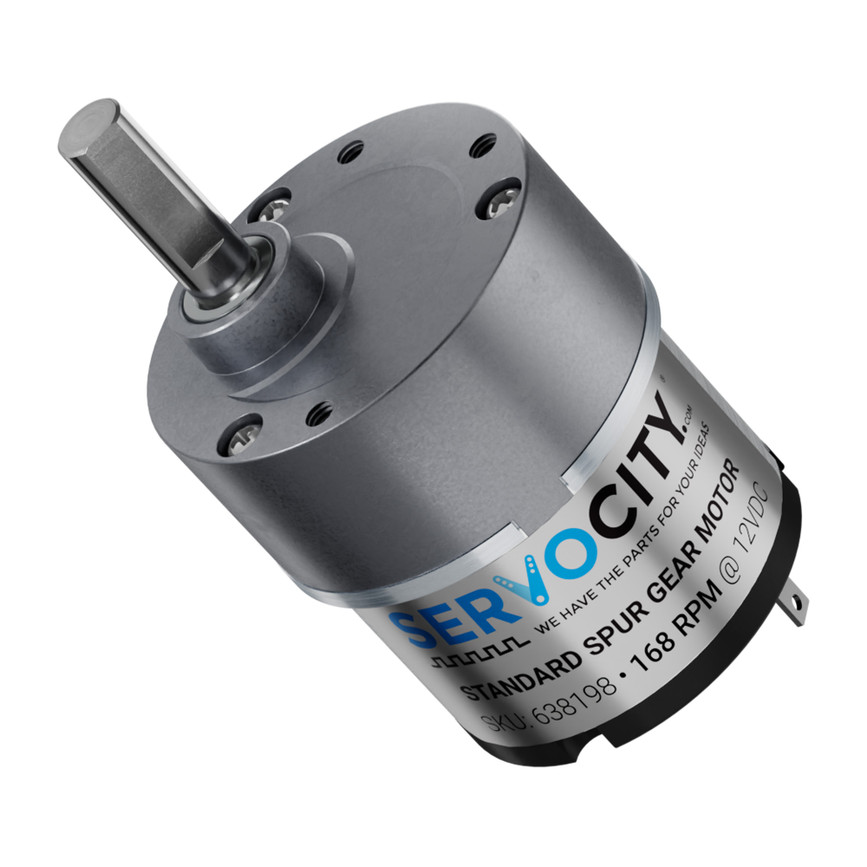

168 RPM Gear Motor

SKU:
$24.99

Tech Tip

Stalling this gearmotor could cause gear damage.

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Bushing
Weight 4.2 oz (119g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load @ 12VDC) 168 rpm
Current (No Load @ 12VDC) 45mA
Current (Stall @ 12VDC) 500mA
Torque (Stall @ 12VDC) 27.3 oz-in
Gearbox Style Straight Cut Spur
Connector Type Male Spade Terminal
Gear Ratio 18:1
