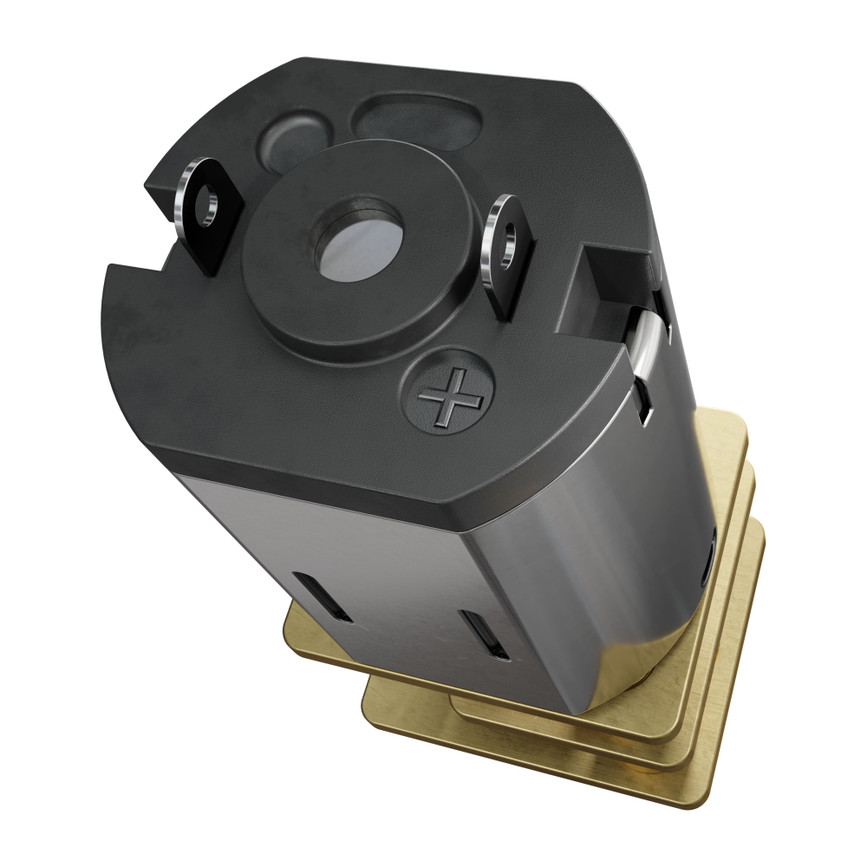

Premium N20 Gear Motor (150:1 Ratio, 175 RPM)

SKU:
$12.99

Tech Tip

Stalling this gearmotor could cause gear damage.

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Brass Case
Gear Material Metal
Weight 0.34 oz (9.6g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Current (No Load @ 12VDC) 70mA
Current (Stall @ 12VDC) 1600mA
Torque (Stall @ 12VDC) 27 oz-in
Gearbox Style Straight Cut Spur
Connector Type Male Spade Terminal
Gear Ratio 150:1
Speed (No Load @ 12VDC) 175 rpm
$12.99
