2:1 Bevel Gear Set (6mm Bore Pinion, 1/4" Bore Spur)

1 of 7

Be the first to review this product

Part
637223
637223
Status
In stock
This Product? Share It!

Details

This 2:1 ratio bevel gear set is built for strength!  The 13 tooth, 6mm D-Bore pinion gear is all steel and has a built-in clamp that will wrap around a motor shaft for a tight hold.  The 26 Tooth Hub Mount Bevel Gear fastens to the 1/4" D-Bore Clamping Hub with included 6-32 screws so that you can mount it on a 1/4" shaft.  The combo of gears is built to work on a 0.75" spacing so that you can use channel as the framework.

SPECS

Set Includes:

Qty SKU Product Description
1 615460 26T, 1/4" Bore, 20 Pitch, Hub Mount Bevel Gear
1 615458 13 Tooth, 6mm D-Bore, 20 Pitch Shaft Mount Bevel Gear
1 545309 1/4" D-Bore Clamping Hub for Hub Mount Bevel Gear

637223 Schematic

615456 Schematic

615460 Schematic

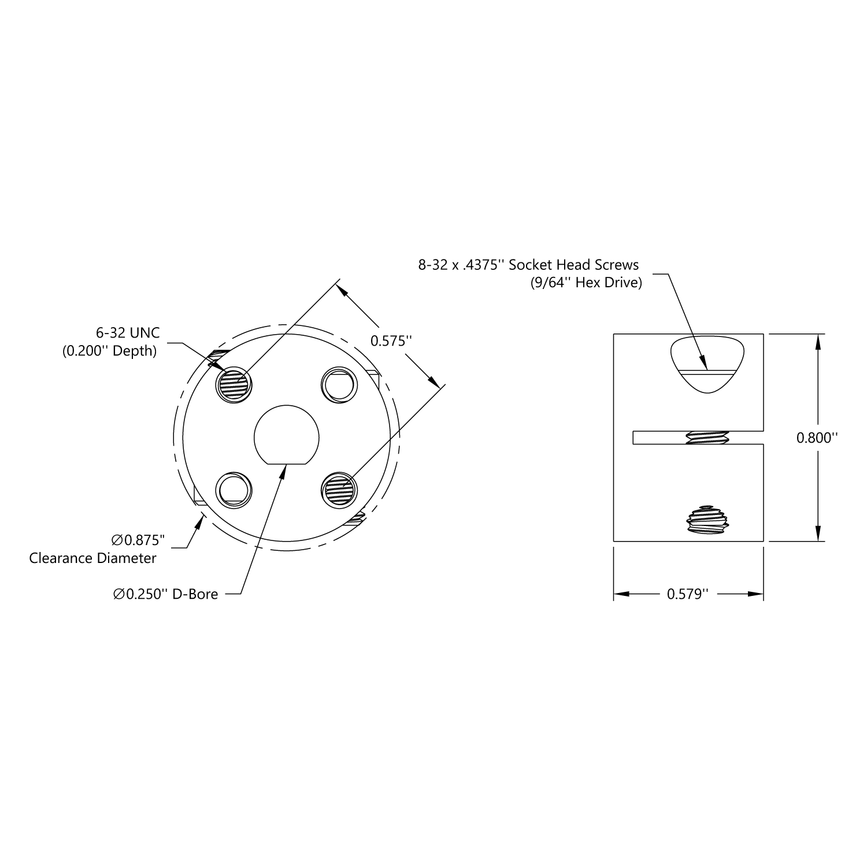

545309 Schematic

Product Weight 2.01oz (56.98g)
