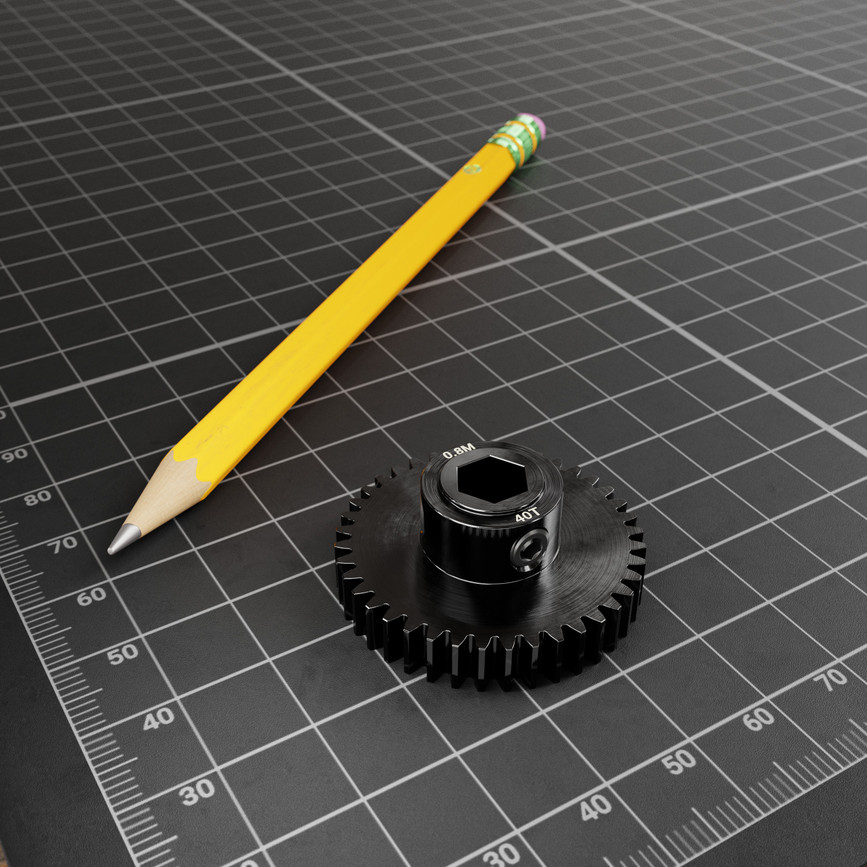

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore, 40 Tooth)

SKU: Build System: goBILDA

This 40 tooth 8mm REX™ bore pinion gear is ready to rip!  The bore perfectly matches our 8mm REX™ shafting to create a positive drive.  While little work is left for the set screws, we put two of them in for good measure.  This particular gear is able to be meshed with a 80 tooth hub gear spaced 48mm away for a 2:1 ratio, or, it can mate to a 20 tooth gear to create a very compact 2:1 ratio only 24mm apart!  If your build provides the freedom to adjust the spacing between your gears, it’s able to mesh to any MOD 0.8 gear that suits your fancy.  Notice the counterbore on the top side of the gear - this allows you to run right up against an 8mm bearing without the use of a shim!



Weight 31g
Material Steel
Finish Black Zinc-Plated
Tooth Count 40
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
