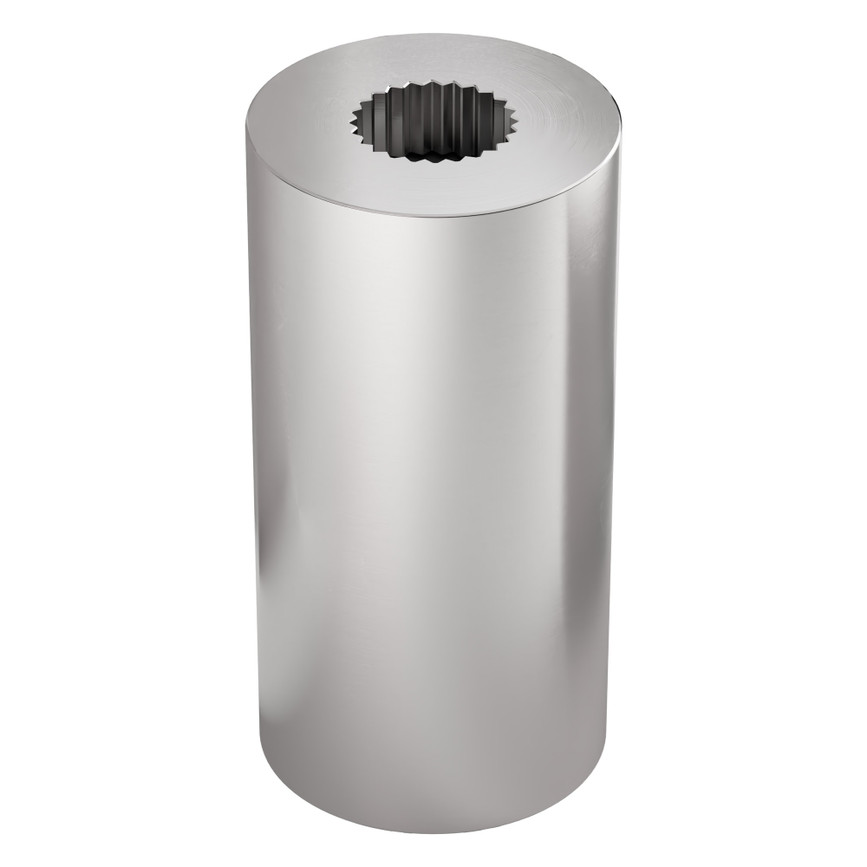

24 Tooth 0.500" Servo Shaft

This 24T spline servo shaft is an integral part of a ServoBlock™.  It possesses a ½” OD which allows it to fit inside of a ½” bore bearing.  While the 525122 Servo Hub Shaft version provides threaded holes to fasten to, this model may be the more versatile option as it allows a ½” clamping hub to slide on and tighten down.  Using a clamping hub not only allows for axial adjustment, but it also allows you to clock the part that’s fastened to the top without removing the servo horn.



Servo Spline C24T Spline
Material Aluminum
Weight 0.22 oz (6.1g)
IP Patented
