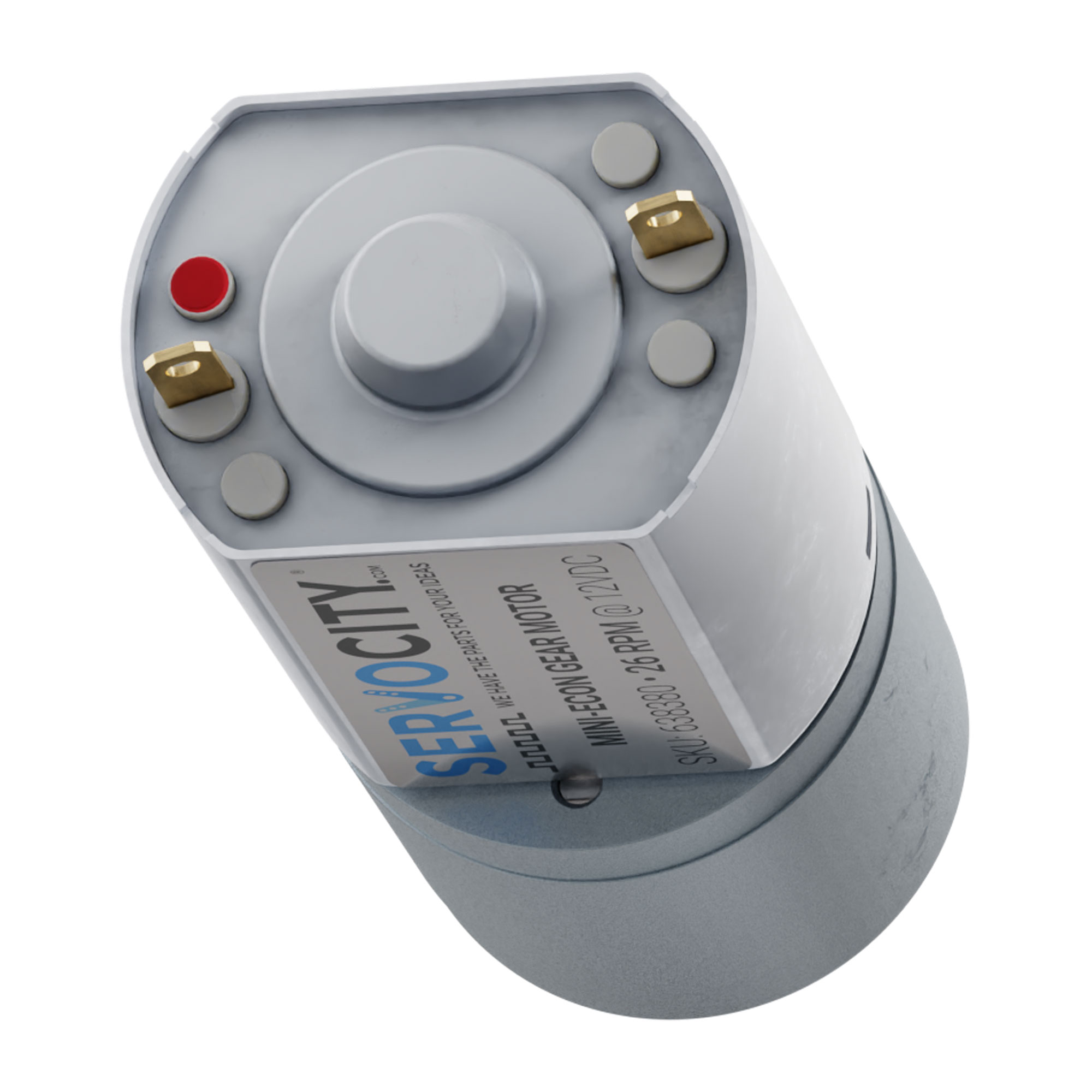

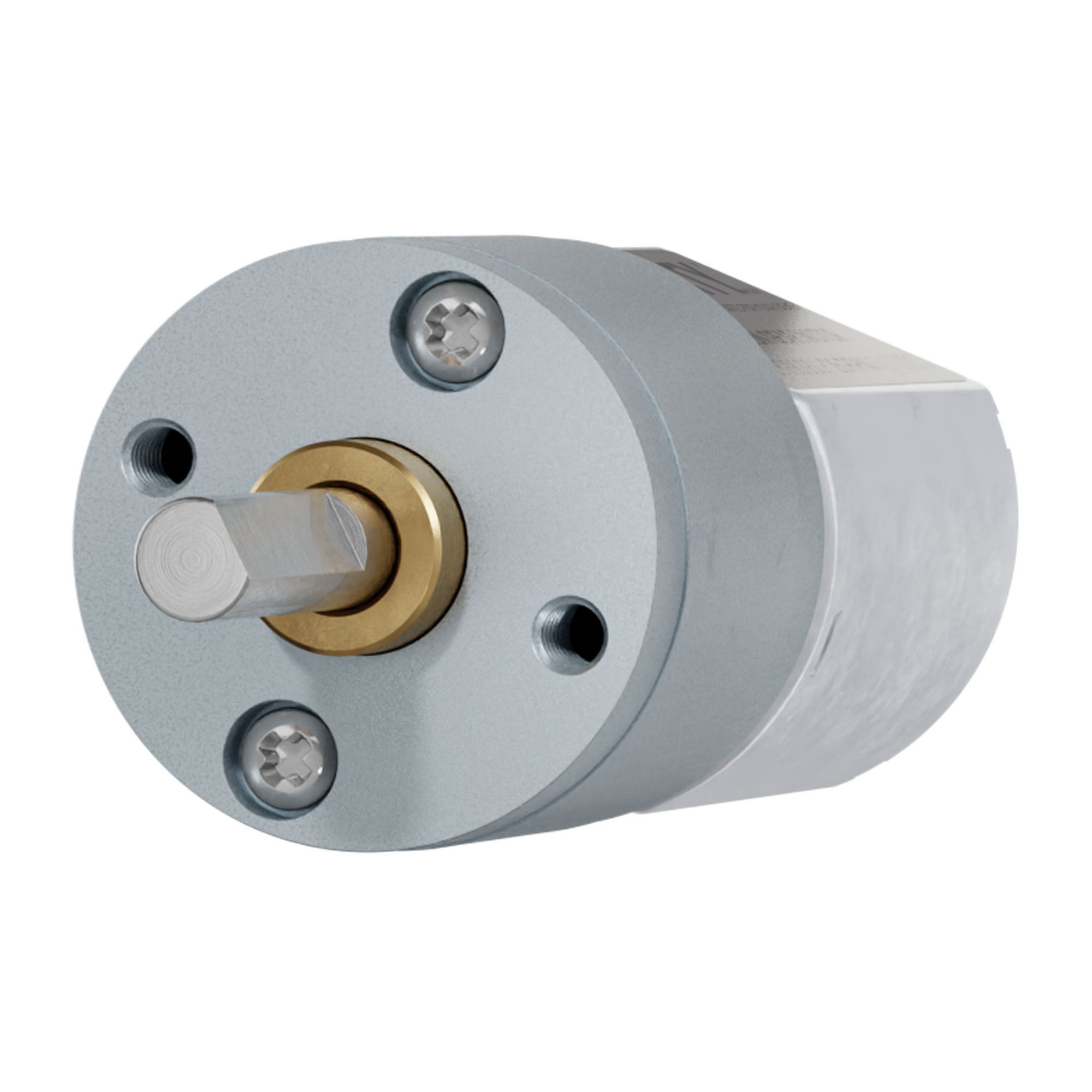

26 RPM Mini Econ Gear Motor

  • shown attached to set screw hub
  • shown attached to clamping hub
  • shown with a 4mm to 1/4” shaft coupler.
  • shown with a set screw hub and a precision disk wheel
  • we offer several 4mm bore gears that work with this motor
  • shown with Motor Mount F 555104
  • Less than $10! Shown next to $10 bill for scale
  • shown with Motor Mount F 555104
1 of 15

Be the first to review this product

In stock
This Product? Share It!

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V -18V
Speed (No Load)* 26 rpm
Current (No Load)* 0.1A
Current (Max Load)* 0.35A
Current (Stall)* 1.5A
Torque (Stall)* 650.7 oz-in (46,858 kgf-cm)
Gear Ratio 488:1
Gear Material Metal
Gearbox Style Straight Cut Spur
Motor Type Brushed DC
Output Shaft Diameter 4mm (0.1575”)
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Product Weight 1.65 oz
