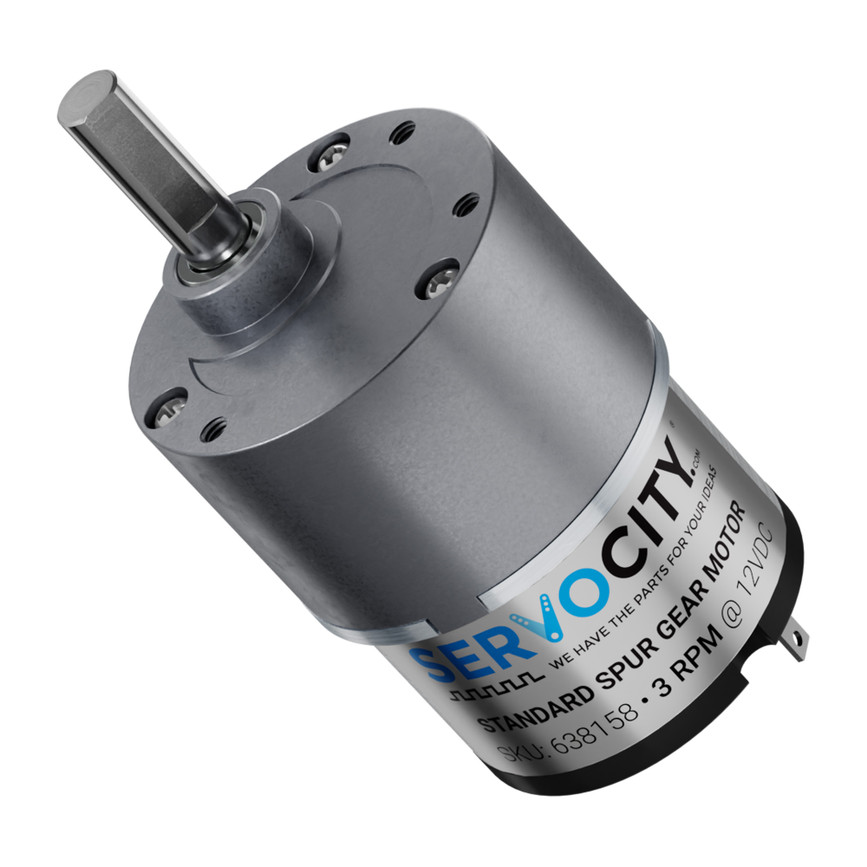

3 RPM Gear Motor

  • Use our quick connect power input board (#605114) with this motor
  • Driving gears with this motor is easy using our 32P (6mm bore) pinion gears and 32P hub gears
  • Shown mounted to a 90° hub bracket A using an aluminum motor mount B
1 of 5

Be the first to review this product

Part
638158
638158
Status
In stock
This Product? Share It!
SPECS

Stalling this gear motor could cause gear damage.

*At Nominal Voltage

Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load)* 3 rpm
Current (No Load)* 45mA
Current (Stall)* 0.5A
Torque (Stall)* 1,102 oz-in
Gear Ratio 1,000:1
Gearbox Style Straight Cut Spur
Motor Type DC
Output Shaft Diameter 6mm (0.240")
Output Shaft Style D-shaft
Output Shaft Support Bushing
Electrical Connection Male Spade Terminal
Mounting Screw Size M3 x 0.5mm
Product Weight 0.30 lbs. (4.4 oz.)
