32mm Bore Bottom Tapped Clamping Mount

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.


Currently Sold Out

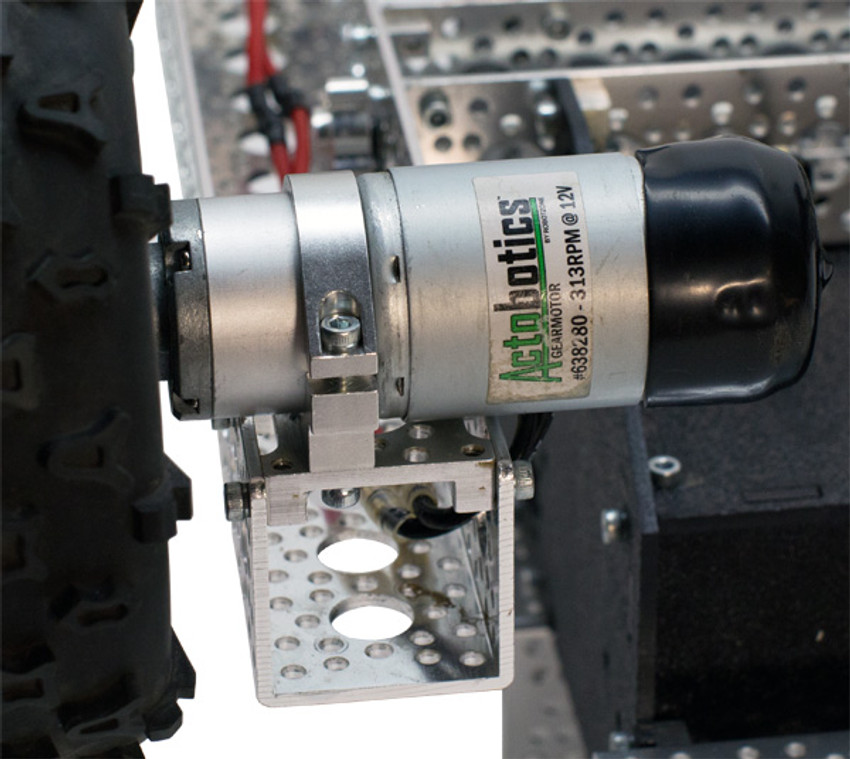

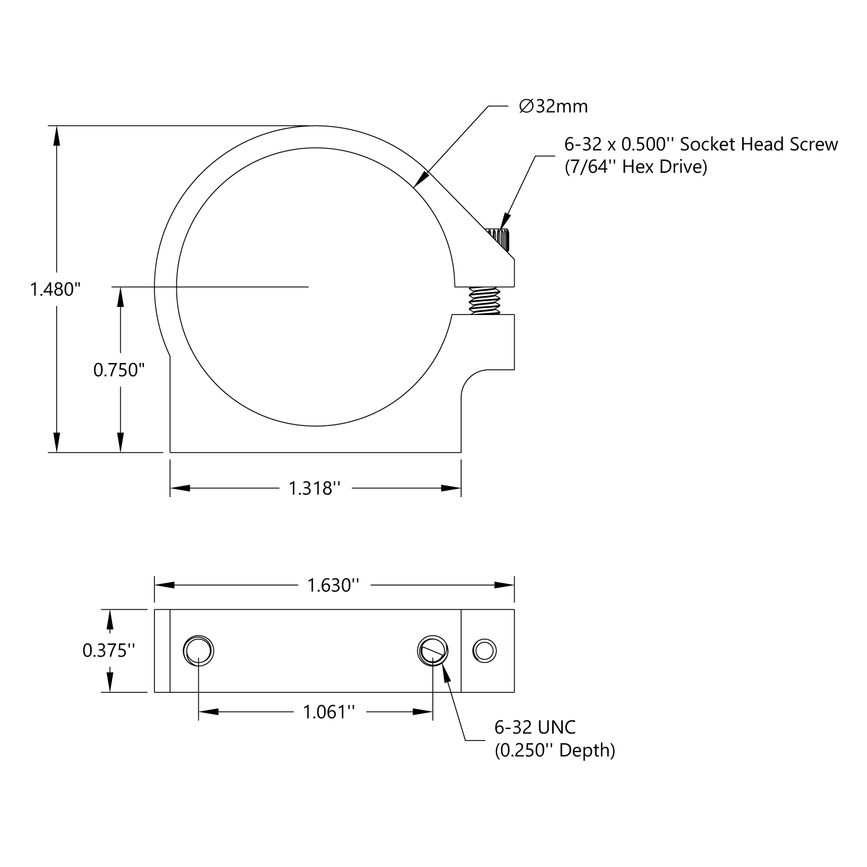

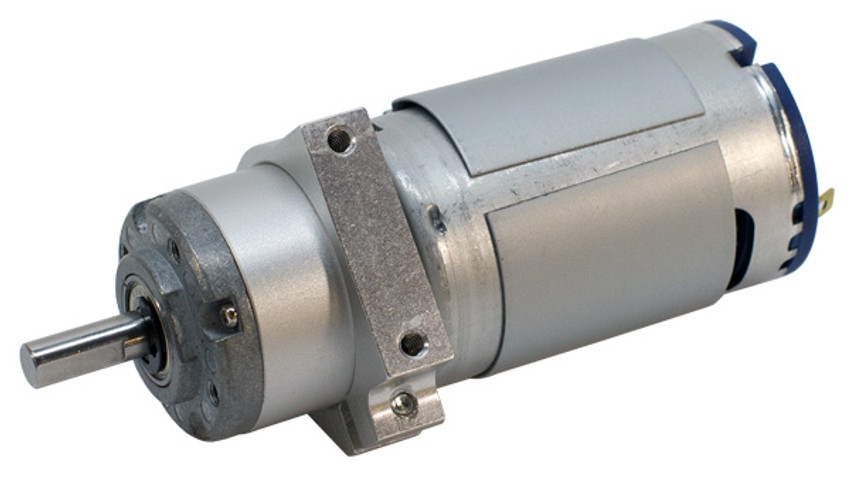

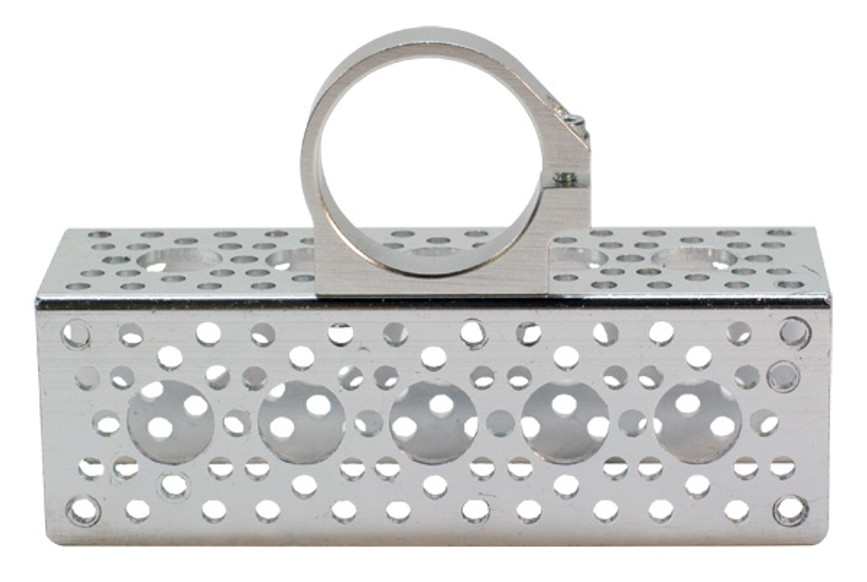

This bottom tapped clamping mount has a 32mm bore compatible with our HD Premium Planetary Motors and goBILDA 5202 Series Motors.  The base-to-center height is 0.75" so that, when attached to channel, the motor shaft and nearest ½" hole on the channel are precisely 1.5" apart.  This allows 32 pitch gears to mesh properly so long as the sum of the teeth between the two gears adds up to 96.  On the bottom of this mount, you’ll find two 6-32 holes that are on the 1.5" pattern (measuring 1.061" apart as it’s the side of the 1.5" pattern).


Material Aluminum
Finish Clear Anodized
Weight 0.43 oz (12g)
