4-Channel RC Servo Multiplexer

shown assembled
shown assembled
  • shown assembled
  • shown un-assembled
1 of 3

Details

The Pololu 4-Channel RC Servo Multiplexer can be used with standard hobby radio control systems and servo controller  to allow easy switching of servo control between two independent sources using a separate auxiliary channel as the input selector. This makes it ideal for applications in which you have two possible control sources and want to be able to switch between them on the fly. For example, you could connect two RC receivers to the same set of servos or electronic speed controls (ESCs) and allow the master transmitter to decide whether the master or slave transmitter is in control, thereby setting up your own buddy-system training setup. Another possible application would involve multiplexing between an RC receiver and a servo controller, which would allow you to switch between autonomous and manual control of a set of servos.

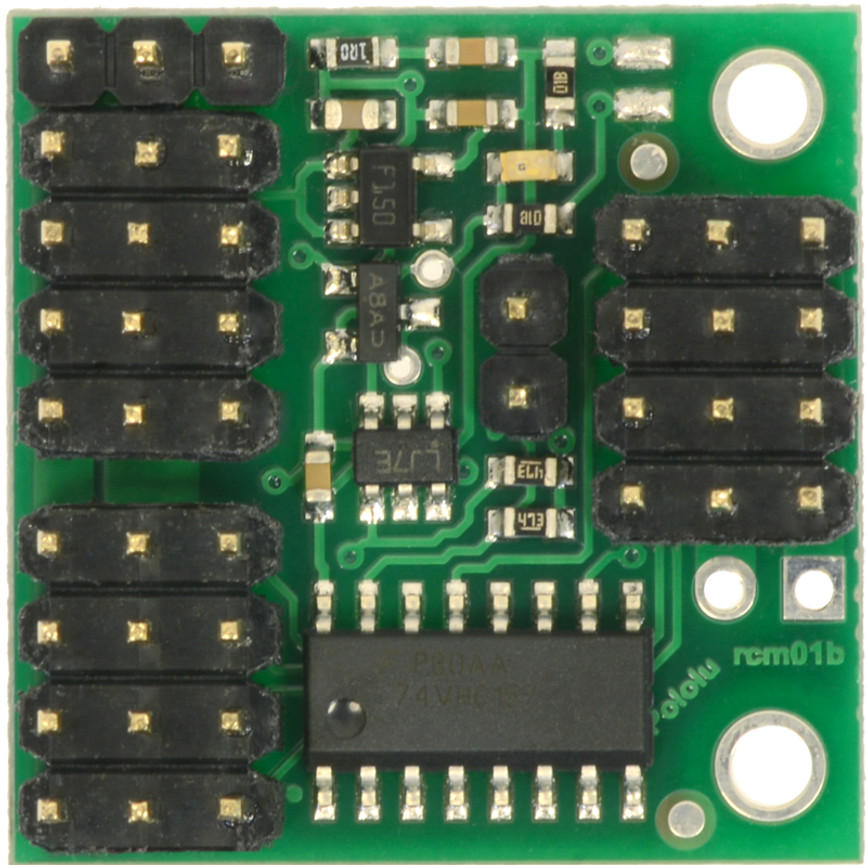

This board ships with the headers pins soldered in to every through-hole except the extra slave power connection pins, as shown in the main picture below. A shorting block is included for optional use with the FAILMODE jumper pins. The assembled version can be incorporated into an existing RC system without the need for any additional soldering. The header pin spacing is the same as on standard RC receivers, so the board works directly with standard hobby servos and cables.

This item ships pre-assembled - no soldering required

Detailed Specifications

Dimensions: 0.97” x 0.97”
Weight: 4.3g
Minimum Operating Voltage: 2.5V
Maximum Operating Voltage: 16V



SPECS

605074 scale

Product Weight 4.3 g
Interface Styles radio control systems and servo controller
Servo Compatibility standard sized servos
Input Supply Voltage Range 2.5V
TECH TIPS

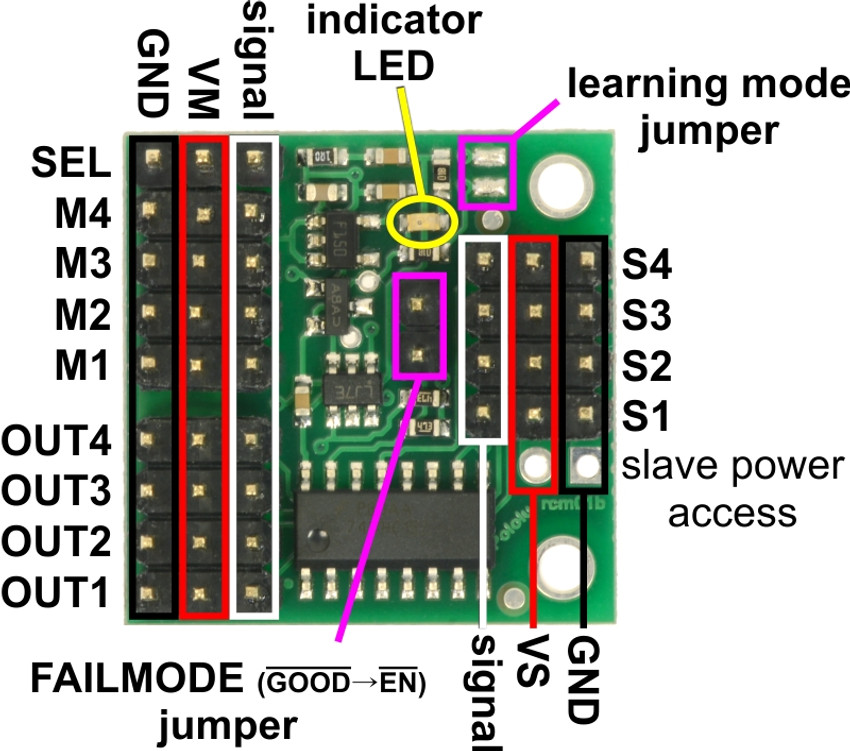

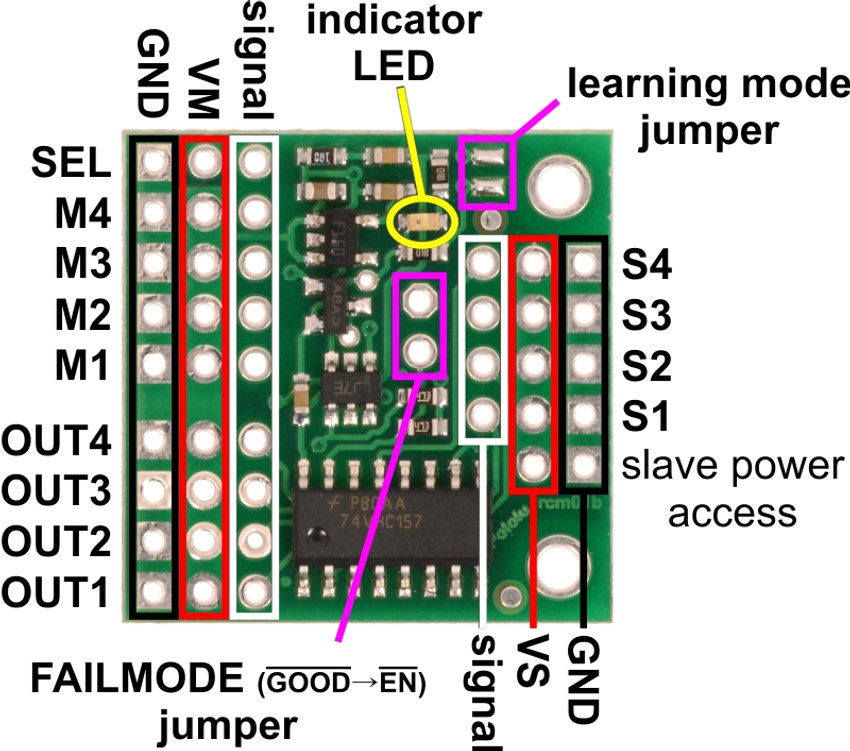

605074 diagram 1605074 diagram 2

How does it work

The RC multiplexer measures the width of incoming RC pulses on the channel labeled SEL and compares it to a user-configurable threshold to decide whether the master (M1-M4) or slave (S1-S4) inputs to the mux should show up on the output channels (OUT1-OUT4). By default, the threshold is approximately 1700µs and the slave inputs are only selected when the pulses on SEL are above this threshold. The multiplexer has a learning mode that allows you to change the threshold and activation direction. A yellow indicator LED provides feedback about the state of the RC mux.- When the RC signal on the SEL channel is lost or invalid, the optional FAILMODE jumper determines the output behavior. If the jumper is left off, the master inputs will be in control. If the jumper is connected, the output channels go low and stay low for as long as the signal on the SEL channel remains invalid. For many servos and ESCs, a constant low on the signal line will turn them off, which might be desirable if the control signals are known to be bad.
- The multiplexer considers the RC signal on the SEL channel to be valid if it has a 10-330Hz pulse rate and
0.5-2.5 ms pulse width. The other inputs (S1-S4 and M1-M4) are unrestricted.

Click here to view switch user manual

Click here to view Mul User manual
