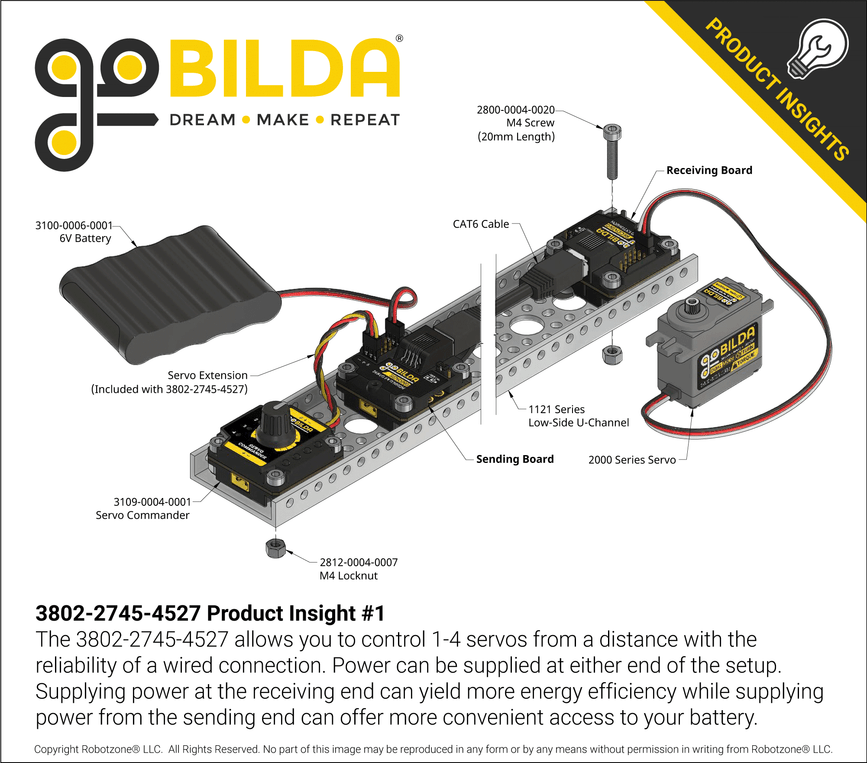

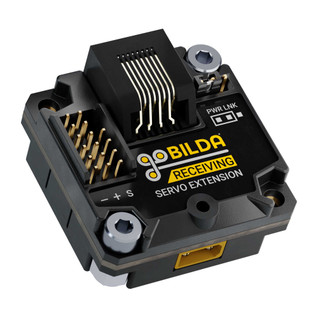

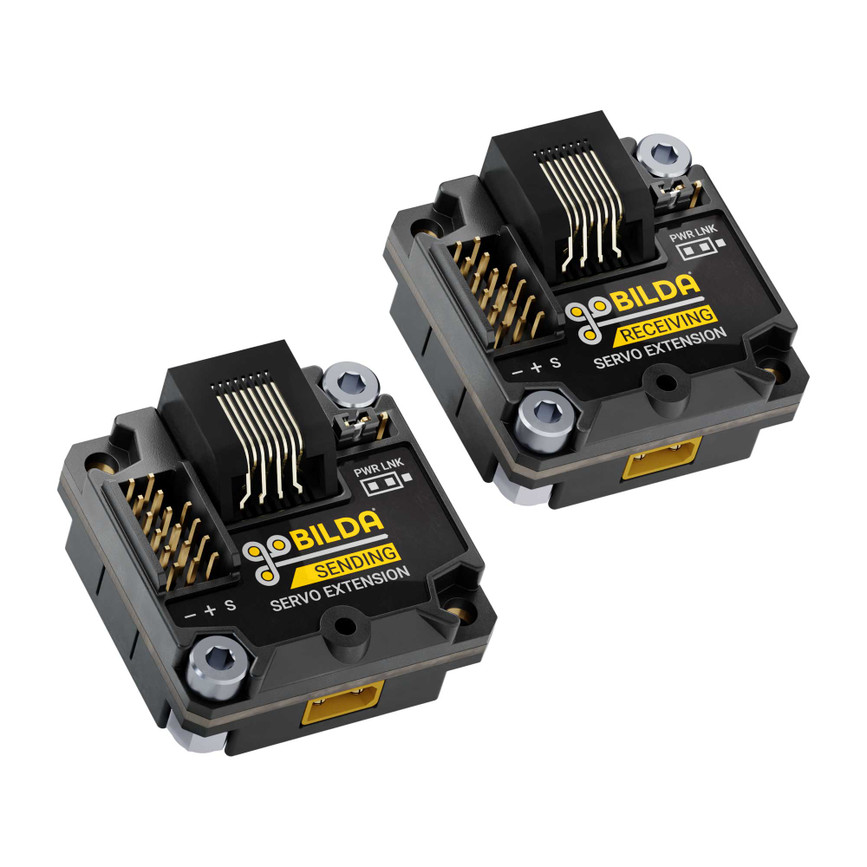

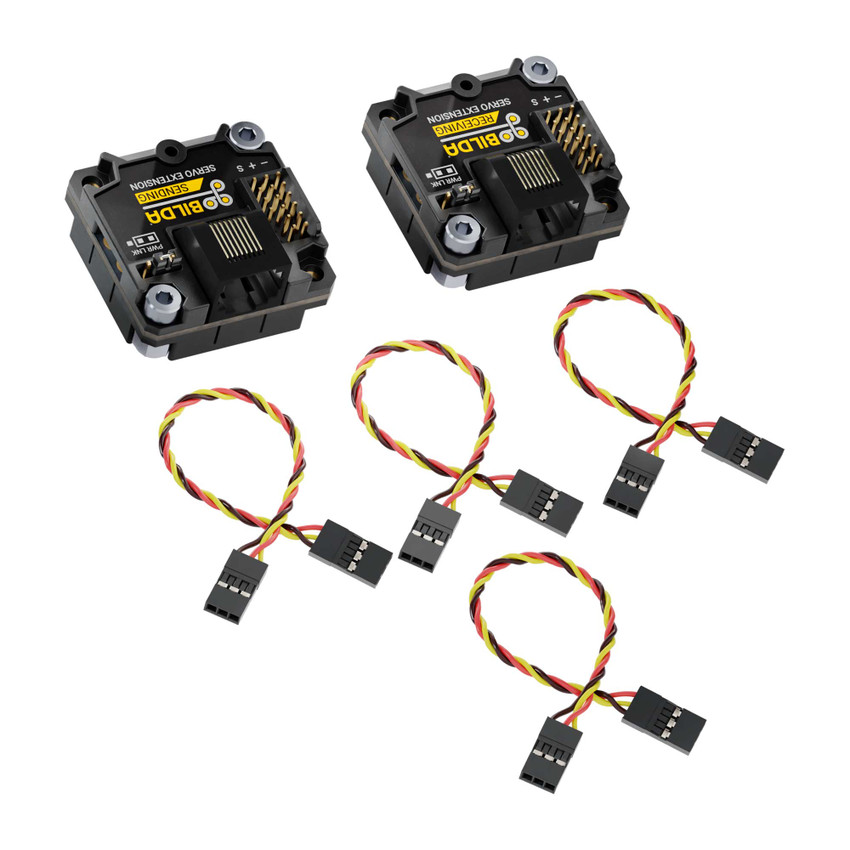

This 4 Channel Servo Extension via CAT6 lets you control up to four servos over a CAT6 cable. It boosts servo signals to allow for long-distance installations with jitter-free servo-motion and the rock-solid connectivity of a wired setup. It can control up to four servos at once, making it useful if you need to tidy up the wiring on your project. This product includes 1 Sending Board, 1 Receiving Board, and 4 servo extensions.
Ethernet Cables: While CAT6 is the recommended cable, the RJ45 connector this 4 Channel Servo Extension uses is also compatible with CAT5, CAT5e, CAT6a, and CAT8 cables.
RC Receivers: This 4 Channel Servo Extension is compatible with any receiver which uses a PWM signal. That's just about any receiver in the hobby or small-medium robotics industries.
Servos: This 4 Channel Servo Extension is compatible with any servo which uses a PWM signal. That's just about any servo in the hobby or small-medium robotics industries.
Actobotics Electronics: While this 4 Channel Servo Extension uses CAT6, it utilizes a newer protocol than Actobotics CAT6 boards (605102, 605103, and 902MSD), making them incompatible with each other.
Both our Boosted Servo-Extension and 4 Channel Servo Extension via CAT6 offer a way to control your servos at longer distances while addressing any signal issues. Take your pick based on your projects’ needs!
|Recommended Voltage Range||6V - 15V|
|Max Voltage Range||3.3V - 18V|
|Max Current (When powered at Receiving Board)||16A Total (4A per Channel)|
|Max Current over CAT6 (When powered at Sending Board)||4A Total|
|Servo Compatibility||Analog & Digital|
|Maximum Recommended Ethernet Cable Length||100ft (30M)|
|Power Compatibility||TJC8, XT30, 3mm Solder Holes|
