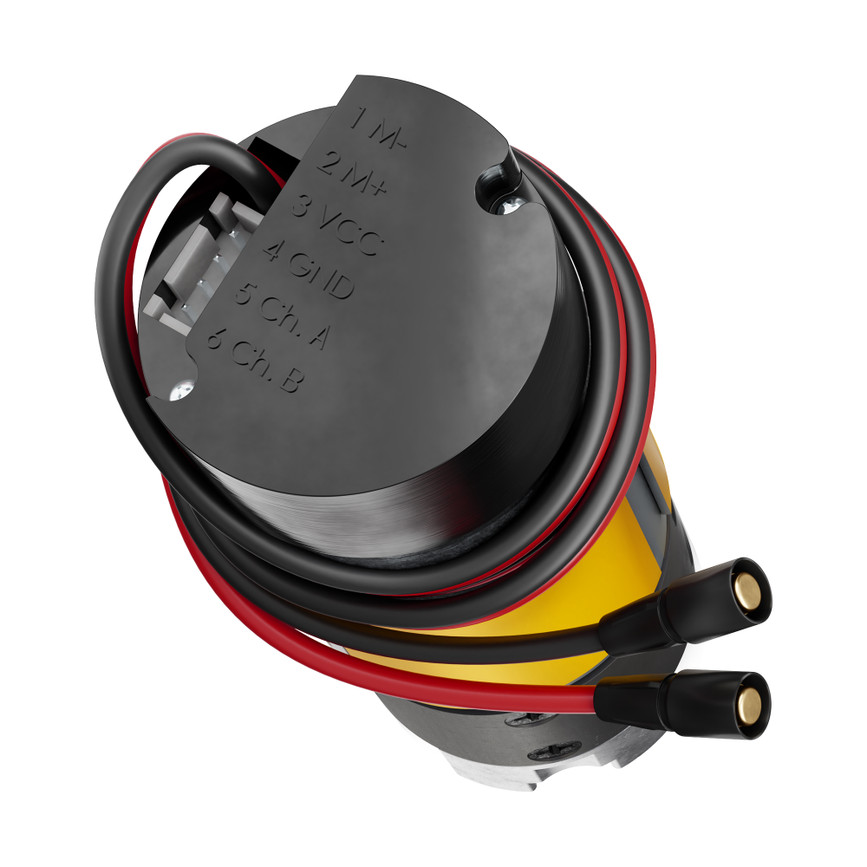

5203 Series Yellow Jacket Motor (1:1 Ratio, 24mm Length 8mm REX™ Shaft, 6000 RPM, 3.3 - 5V Encoder)
SKU:
Build System: goBILDA
$42.99
Downloads
Specs
| Motor Size | RS-555 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |
| Output Shaft | 8mm REX™, 24mm Length |
| Gearbox Style | Planetary |
| Gear Ratio | 1:1 |
| No-Load Speed @ 12VDC | 6,000 RPM |
| No-Load Current @12VDC | 0.25A |
| Stall Current @12VDC | 9.2A |
| Stall Torque @12VDC | 1.47 kg.cm (20 oz-in) |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 - 5VDC |
| Encoder Resolution | 28 PPR at Output Shaft |
| Weight | 391g |
| IP | Patented |
