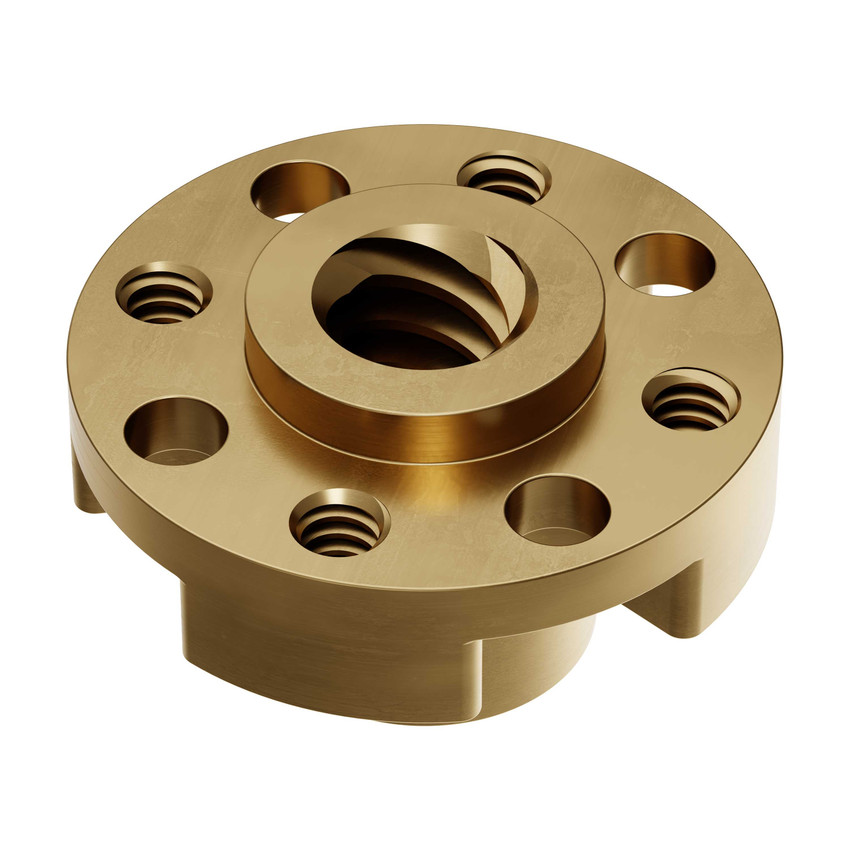

8mm Lead Screw Nut, 0.770" Pattern

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.

Consider This Alternative:

While its mounting holes are goBILDA® (metric) instead of Actobotics® (imperial), please consider this otherwise similar alternative.

3505 Series Lead Screw Pattern Nut (8mm Lead, 4 Start, 32mm OD, 16mm Length)


Lead Screw Nut

Currently Sold Out

Discontinued - Consider This Alternative:

A Barrel Nut (SKU: 545314), in conjunction with a Clamping Hub (SKU: 545600), provides a similar function to this lead screw nut. The clamping hub allows for easy adjustment via its pinch bolt, which you can loosen to fine-tune your assembly's axial location relative to the barrel nut.

The 8mm lead screw nut with the .770" pattern is intended to be used with our 8mm lead screw.  The threads are precisely cut to provide minimal backlash or side to side rock while retaining a low coefficient of friction between the bronze nut and the stainless lead screw.  The .770" pattern provides a simple way to attach Actobotics components to your linear drive system, or if you want a clamping solution to easily index the nut you can use a 1" clamping hub around the outer diameter of the lead screw nut.



Length 0.50"
Material Bronze
ID 8mm
OD 1"
Weight 0.87 oz (24.6g)
Lead Pitch 2mm
Number of Starts 4
