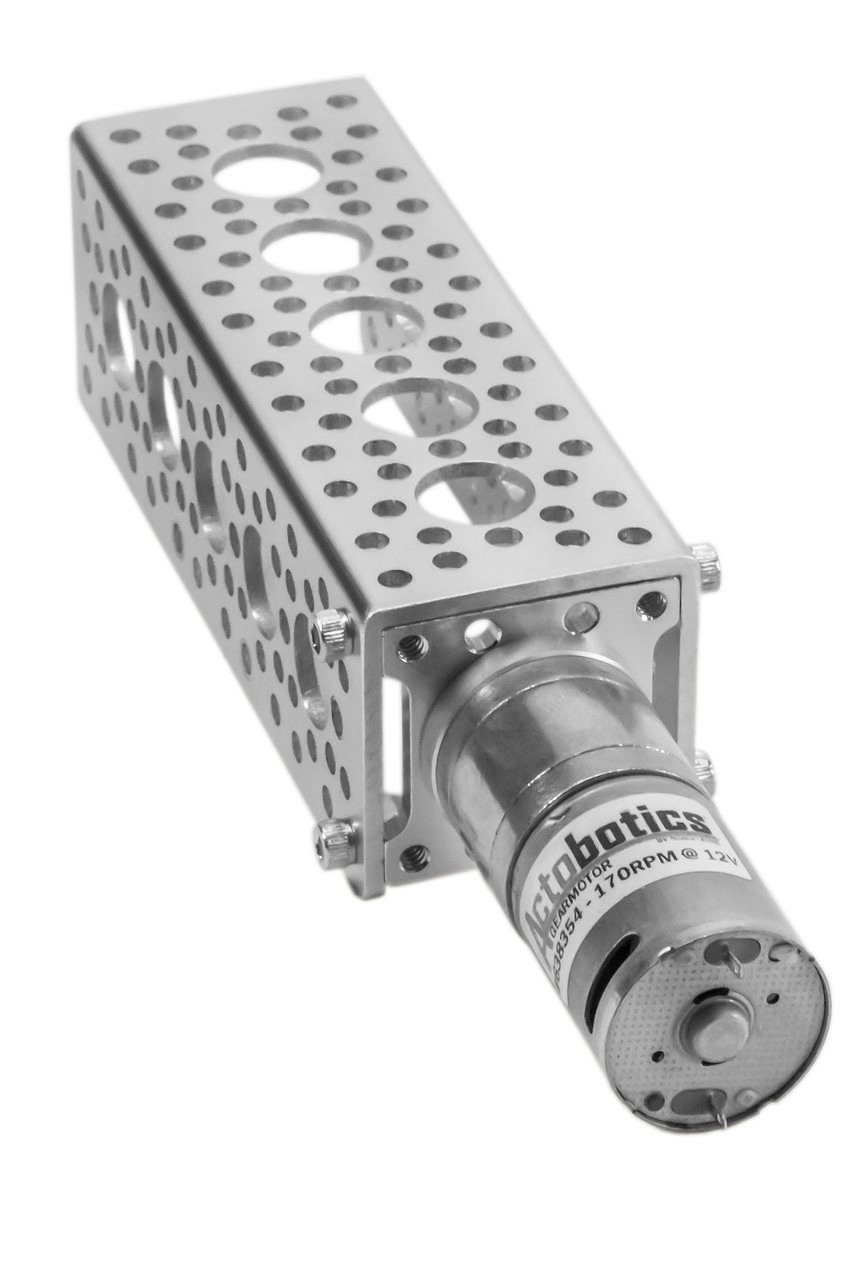

Aluminum Motor Mount F

SKU: Build System: Actobotics
$4.99

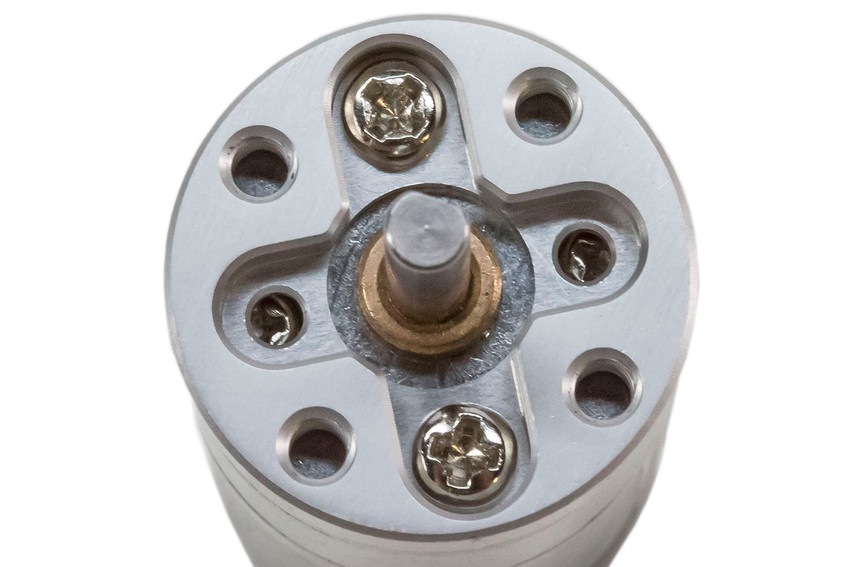

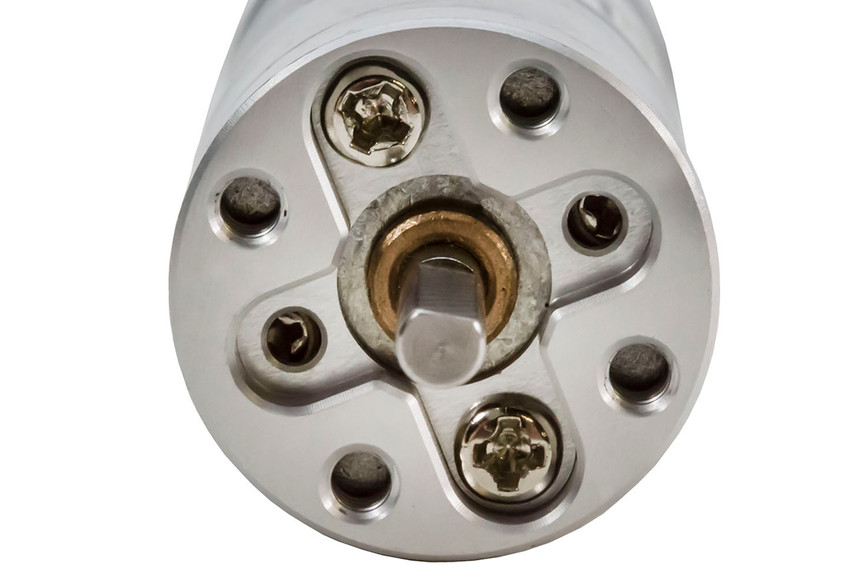

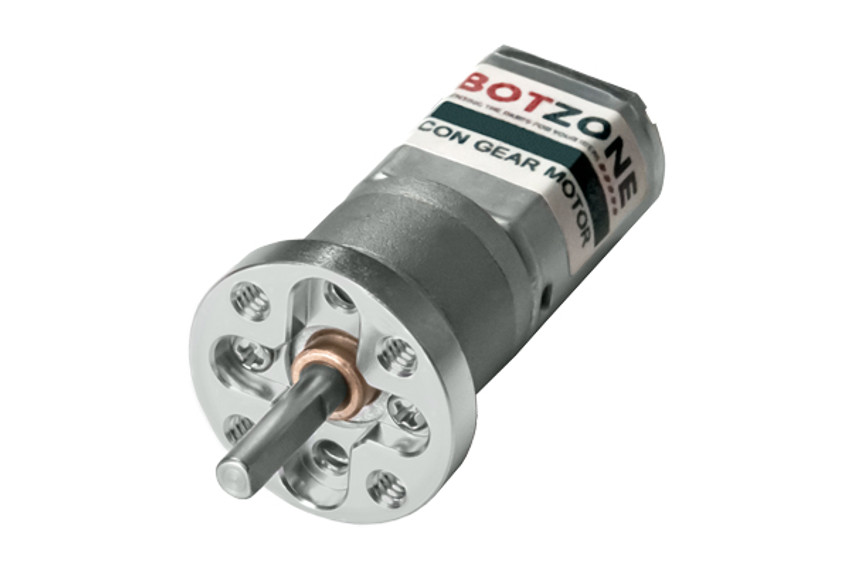

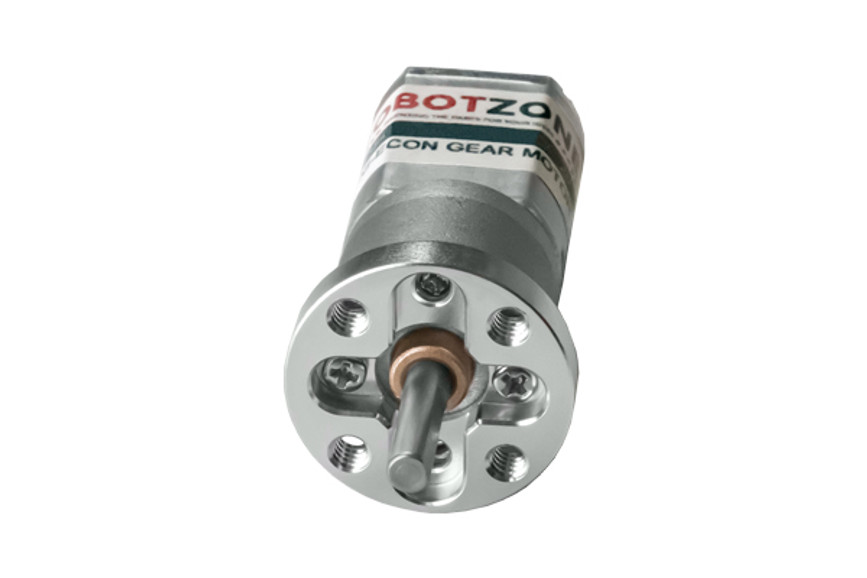

This motor mount is compatible with two different motor mounting patterns:

  1. M2.5 x 15mm bolt circle: The Mini Econ Spur Gear Motors have M2.5 threads 15mm across center. This mount comes with (2) M2.5 pan head screws to attach the motor to the mount.
  2. M3 x 17mm bolt circle: The Econ Spur Gear Motors have M3 threads 17mm across center. This mount comes with (2) M3 pan head screws to attach the motor to the mount.

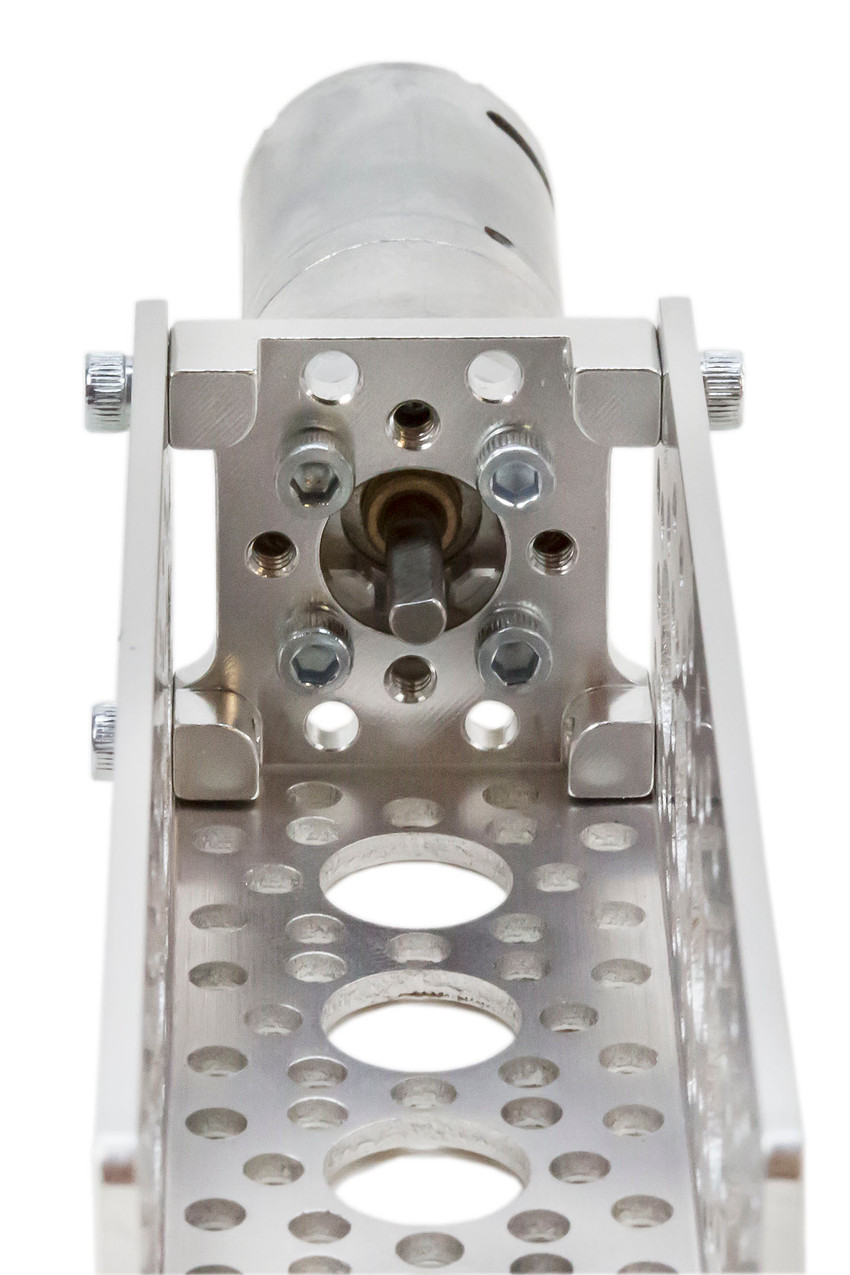

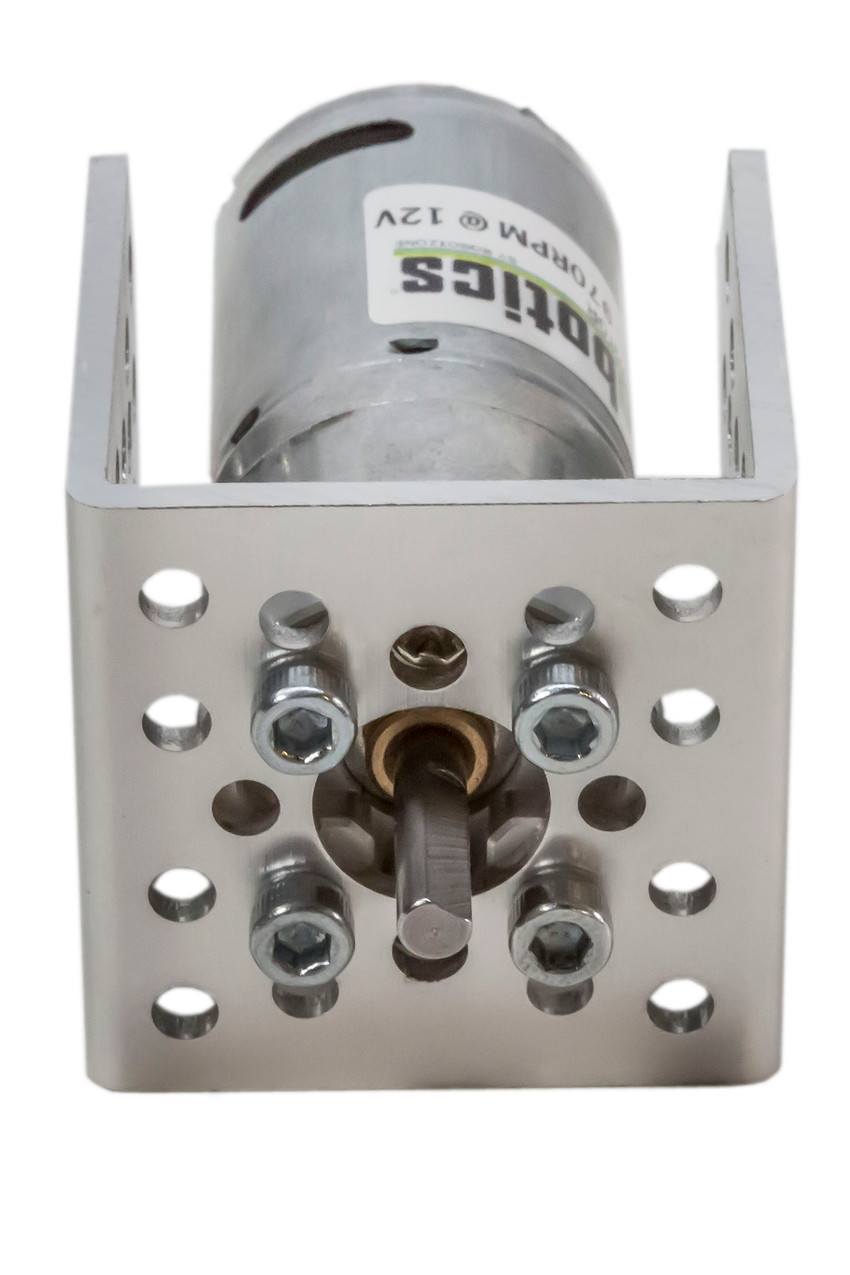

Once the motor mount is fastened to the face of the motor (either of the motor options listed above), you can use 6-32 screws to fasten the mount to any 0.77" pattern component.

Specs

Material Aluminum
Weight 0.15 oz (4.3g)
