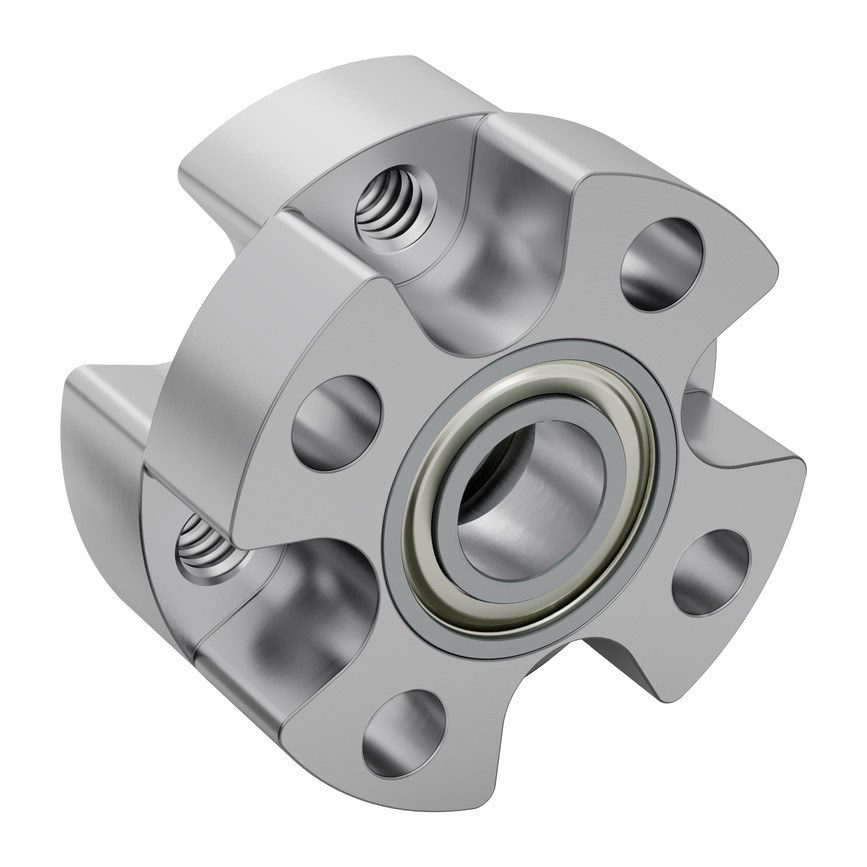

Dual Ball Bearing Hub

  • shown with 1/4" shafting
  • shown with 6-32, 1/4" standoff # 633119 mounted inside of aluminum channel
  • shown in-line with a 1/4" pinion pulley and secured by a 1/4" set screw collar # 6432K12

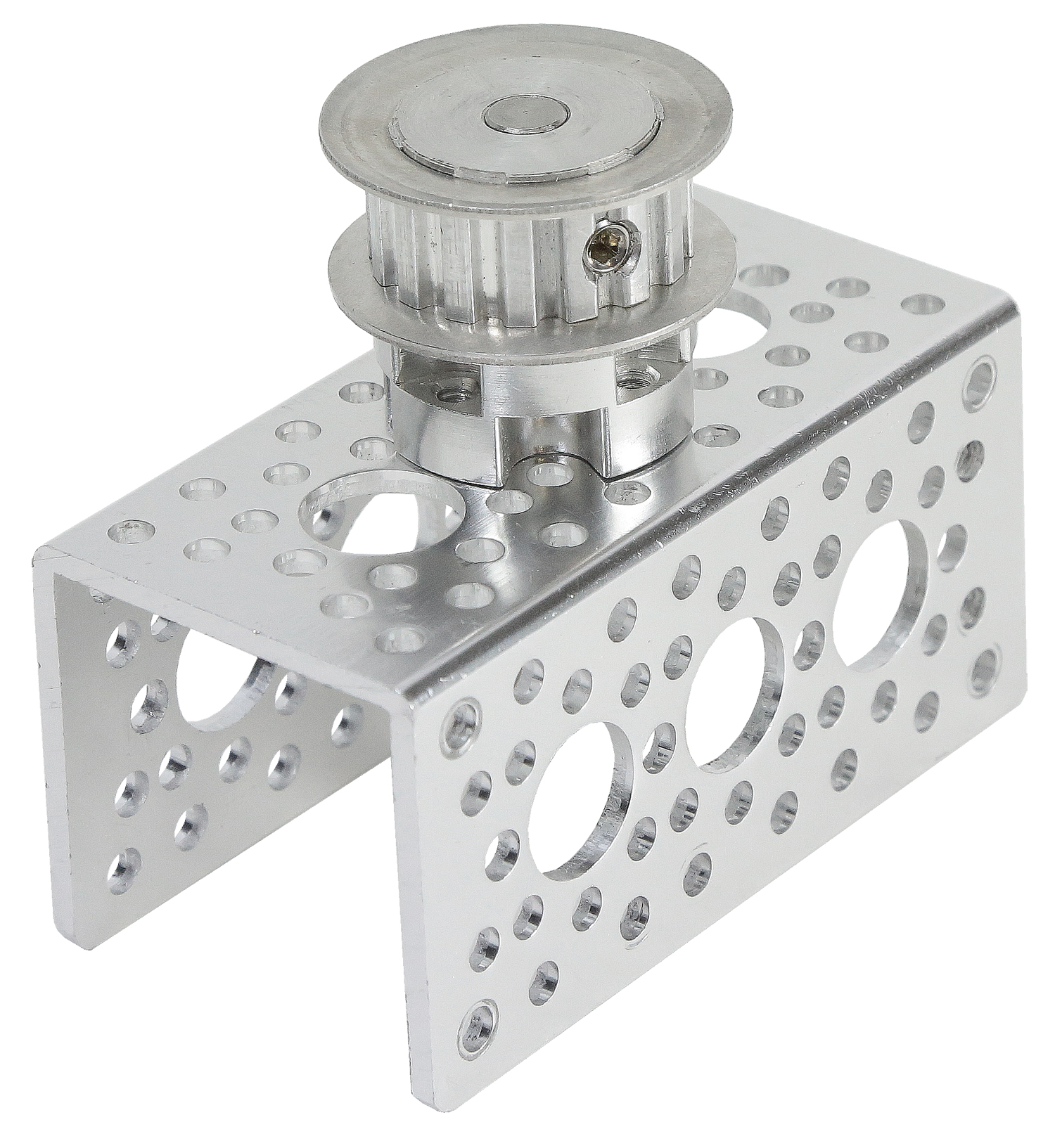

  • additional option with 1/4" pinon pulley mounted on top of aluminum channel
1 of 6

Be the first to review this product

Part
545444
545444
Status
In stock
This Product? Share It!

Details

This hub uses 6-32 socket head machine screws ( sold separately)

SPECS

545444-Schematic

Product Weight 0.45 oz
Material Aluminum - Stainless Steel Ball Bearing
Hole Pattern 0.770"
RESOURCES



Download Attachment
zip545444 assembly STEP(274.72 KB )Download
TECH TIPS

TECH TIP: When designing a mechanism that involves a rotating shaft, our Dual Ball Bearing Hub can be a very useful part. Since the hub has two bearings (one pressed into each side of the aluminum housing) it eliminates the need to mount two bearings separately. By simply bolting this hub to your structure, the bearings are sure to be in-line with one-another and they can handle a cantilever load on the shaft. The Dual Ball Bearing Hub has both tapped and thru-holes to increase its mounting options. The thru-holes have counter-bored holes to allow socket head screws to set below the surface and out of the way of moving parts.
