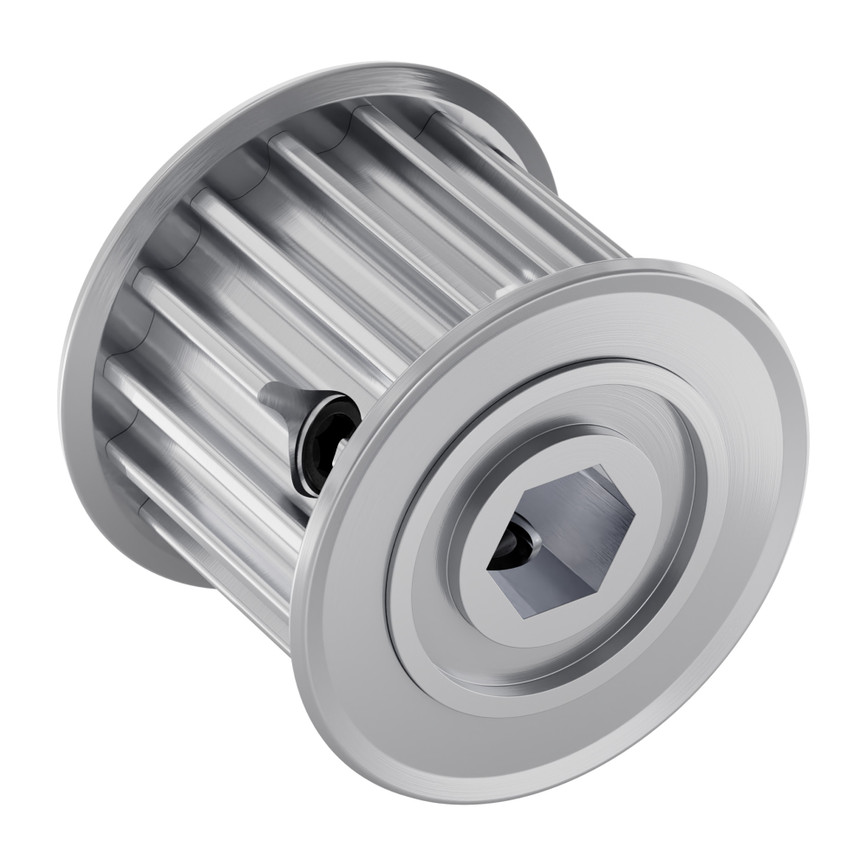

Dual Belt, 5mm HTD Pitch, Set-Screw Pinion Timing Belt Pulley (8mm REX Bore, 16 Tooth)

SKU:
$14.99

With a doubled width that multiplies motion possibilities, this 16 tooth, 8mm REX™ bore pinion pulley can drive up to two 5mm pitch HTD belts of widths of 9mm or less. It’s a fantastic solution in a skid-steer drivetrain where two centrally-located motors power the chassis via belts extending to the front and back wheels on each side.

The pair of set-screws prevent the pulley from moving axially on the 8mm REX™ shaft. Built-in shims on each side allow the pulley to rest against a bearing while providing clearance between the pulley and the bearing’s outer race.

Downloads

Specs

Weight 21g (0.7oz)
Material Aluminum
Finish Clear Anodized
Tooth Count 16
Pitch 5mm (HTD)
