Flush Perpendicular X-Rail Mount

1 of 5

Be the first to review this product

Part
585073
585073
Status
In stock
This Product? Share It!

Details

The Flush Perpendicular X-Rail Mount provides a low-profile way to attach two X-Rails together perpendicular to one-another.  The four counterbored holes allow 6-32 socket head screws to pass through and thread into the end of an X-Rail while leaving the heads below the surface so that the joining part can rest flush on the mount.  The joining piece is then able to fasten to the mount using two Single X-Rail Mounts or one Dual X-Rail Mount, along with two 6-32 x 3/8" socket head screws.

SPECS

585073

Product Weight 0.20 oz
Material Aluminum

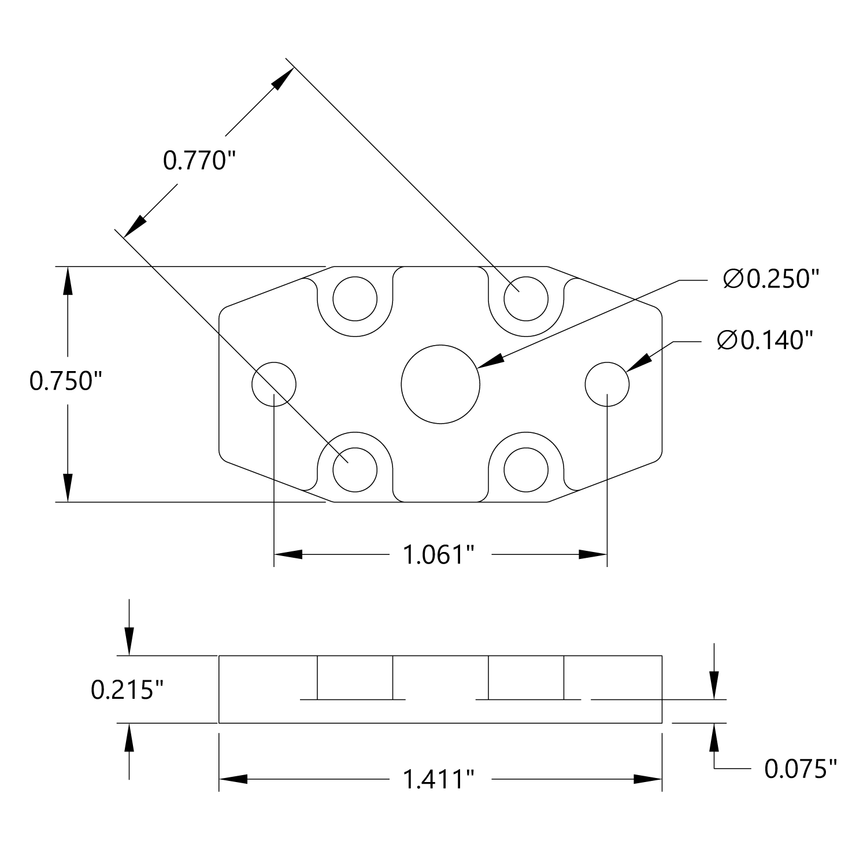

Hole Pattern 0.770" and 1.50"
