HS-430BH Servo

  • HS-430BH in box

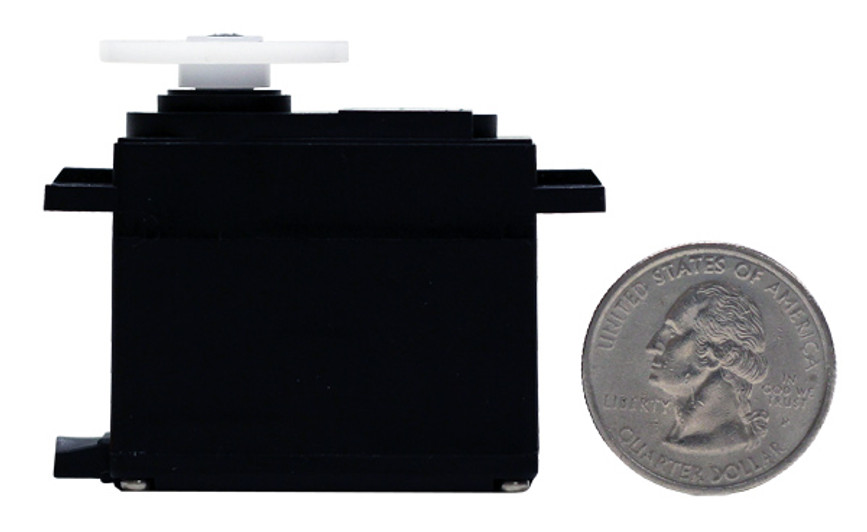

  • HS-430BH with quarter for scale

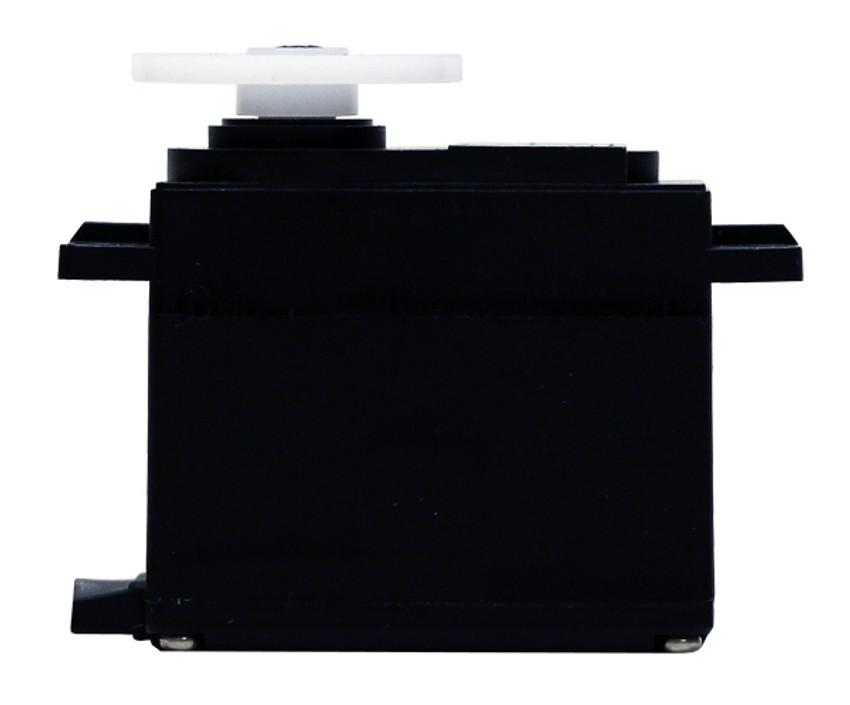

  • HS-430BH side view
  • HS-430BH top view
  • HS-430BH back view

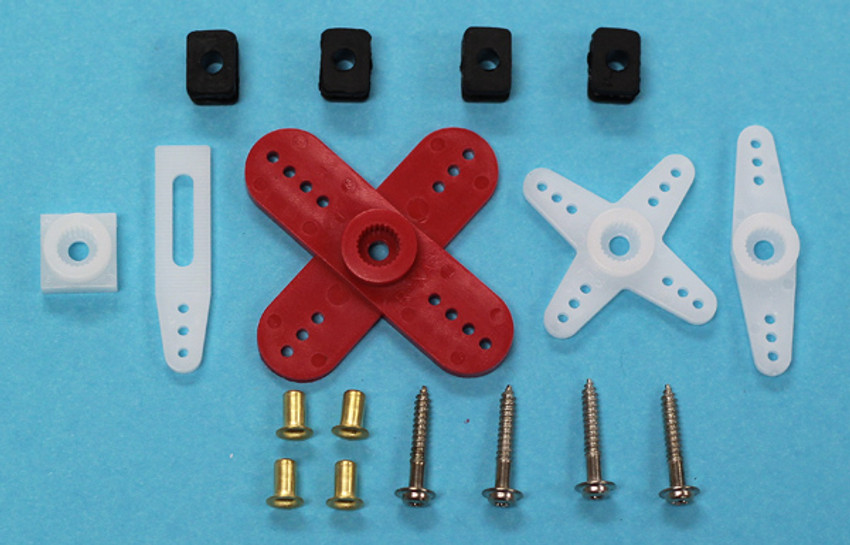

  • HS-430BH included hardware
1 of 7

Be the first to review this product

$16.99 - $44.99
Sign up for Price Alert
In stock

* Required Fields

$16.99 - $44.99
Sign up for Price Alert
This Product? Share It!


Based on the popular HS-425BB, Hitec's deluxe ball bearing HS-430BH is our budget-minded analog servo capable of 6.0 to 7.4 volt operation. Designed with the novice hobbyist in mind, this low cost servo can be used for control surfaces on beginner airplanes and as a throttle or replacement servo for many ready-to-fly models. Its excellent durability and dependability make it a solid choice for beginner pilots.

Standard Servo Schematic 2 A = .780” (19.82mm)
B = .530” (13.47mm)
C = 1.33” (33.79mm)
D = .400” (10.17mm)
E = .380” (9.66mm)
F = 1.19” (30.22mm)
G = .460” (11.68mm)
H = 1.05” (26.67mm)
J = 2.08” (52.84mm)
K = .368” (9.35mm)
L = .172” (4.38mm)
M = 1.57” (39.88mm)
X = .120” (3.05mm)
Dimensions 1.59” x 0.77” x 1.44” (40.6 x 19.8 x 36.6mm)
Product Weight 1.6oz (45.5g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 6.0V - 7.4V
No-Load Speed (6.0V) 0.16sec/60°
No-Load Speed (7.4V) 0.14sec/60°
Stall Torque (6.0V) 57 oz/in. (
Stall Torque (7.4V) 69 oz/in. (
Max PWM Signal Range (Standard) 553-2520μsec
Travel per µs (out of box) .096°/μsec
Max Travel (out of box) 189°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 8µs
Motor Type 3 Pole Ferrite
Potentiometer Drive Indirect Drive
Internal Feedback Style 5KΩ Potentiometer
Output Shaft Support Top Ball Bearing
Gear Type Straight Cut Spur
Gear Material Nylon
Wire Length 11.81" (300mm)
Wire Gauge 25AWG

This servo can rotate up to 189° when given a PWM signal ranging from 553 to 2520 microseconds. Since most R/C controllers cannot generate this wide of a signal range, you can purchase our servo stretcher for extended rotation operation.
