HSR-2645CRH Servo

  • HSR-2645CR with quarter for scale

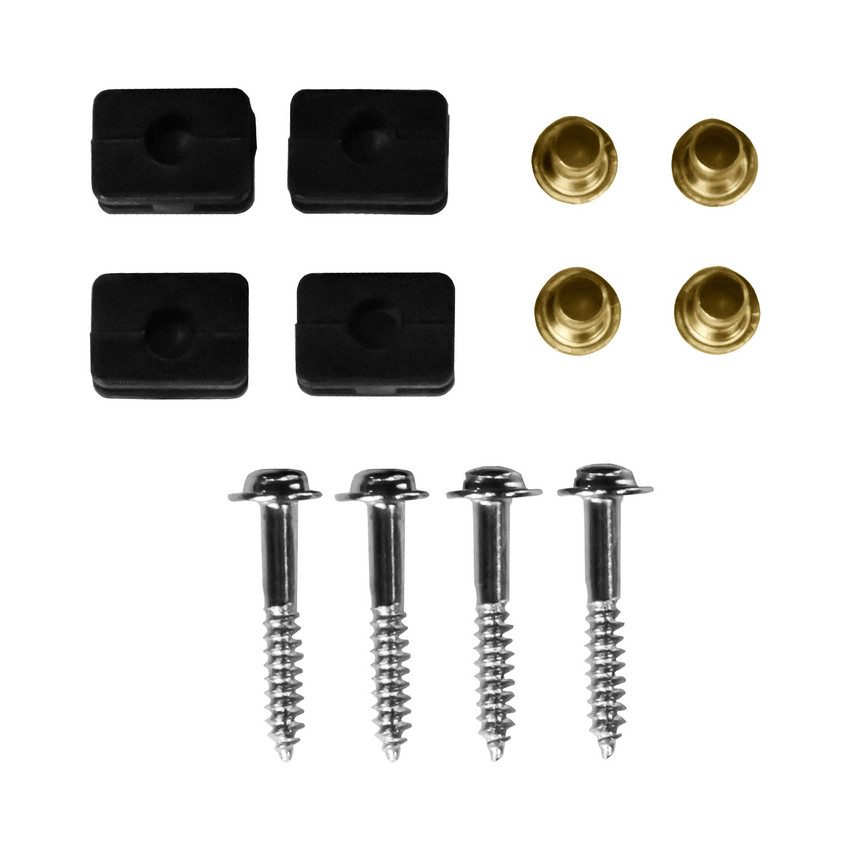

  • HSR-2645CR included hardware
  • HSR-2645CR side view
  • HSR-2645CR back view
  • HSR-2645CRH top view
1 of 6

Be the first to review this product

Part
32645H
32645H
Status
In stock
This Product? Share It!

Details

The HSR-2645CRH servo is a fully proportional, high torque digital servo that is like no other servo on the market.  While most servos go to a specific location based on the signal received, the HSR-2645CRH servo rotates at a specific speed based on that signal.  Its speed is fully proportional meaning that the further the signal deviates from the center (1500usec), the faster the servo will rotate.  While regular servos that get modified to continuous rotation tend to be difficult to control the speed on, the HSR-2645CRH circuit was designed from the factory to drive the servo smoothly and with fine-control over the speed.  Since the HSR-2645CRH servo is digital, it's able to be tuned using a Hitec servo programmer.  The programmable parameters allow you to tailor the servo to best-fit your application.  Excellent for compact sliders, winch mechanisms, small panning devices and wheel-drives on robots.

SPECS
Dimensions 1.59" x 0.77" x 1.48" (40.6 x 19.8 x 37.8 mm)
Product Weight 1.87 oz (53 g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 4.8 - 7.4 V
No-Load Speed (4.8V) 46 RPM
No-Load Speed (6.0V) 58 RPM
No-Load Speed (7.4V) 72 RPM
Stall Torque (4.8V) 111.09 oz-in (8 kg-cm)
Stall Torque (6.0V) 138.87 oz-in (10 kg-cm)
Stall Torque (7.4V) 166.64 oz-in (12 kg-cm)
Pulse Amplitude 3-5 V
Operating Temperature -20°C to +60°C
Direction w/ Increasing PWM Signal Clockwise
Motor Type Carbon Brushed Cored Motor
Potentiometer Drive No Potentiometer
Feedback Style This servo does not have position feedback
Output Shaft Support Dual Ball Bearings

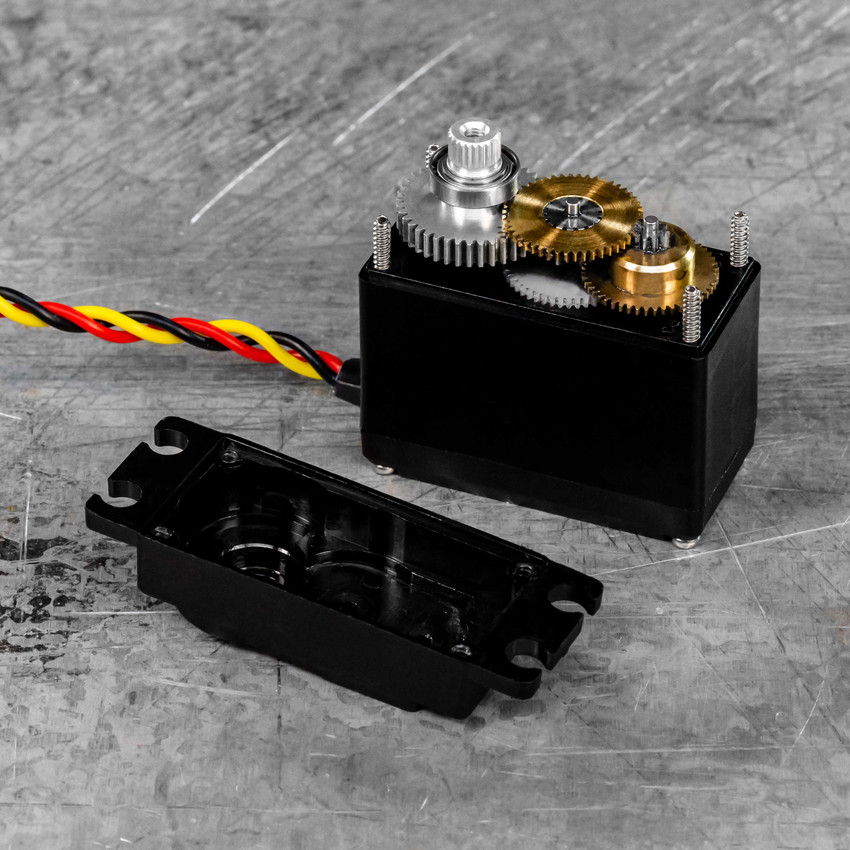

Gear Type Straight Cut Spur
Gear Material Metal
Wire Length 25 AWG
