Linear Actuator Kit A (7.4" Stroke X-Rail Piston)

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.


Currently Sold Out

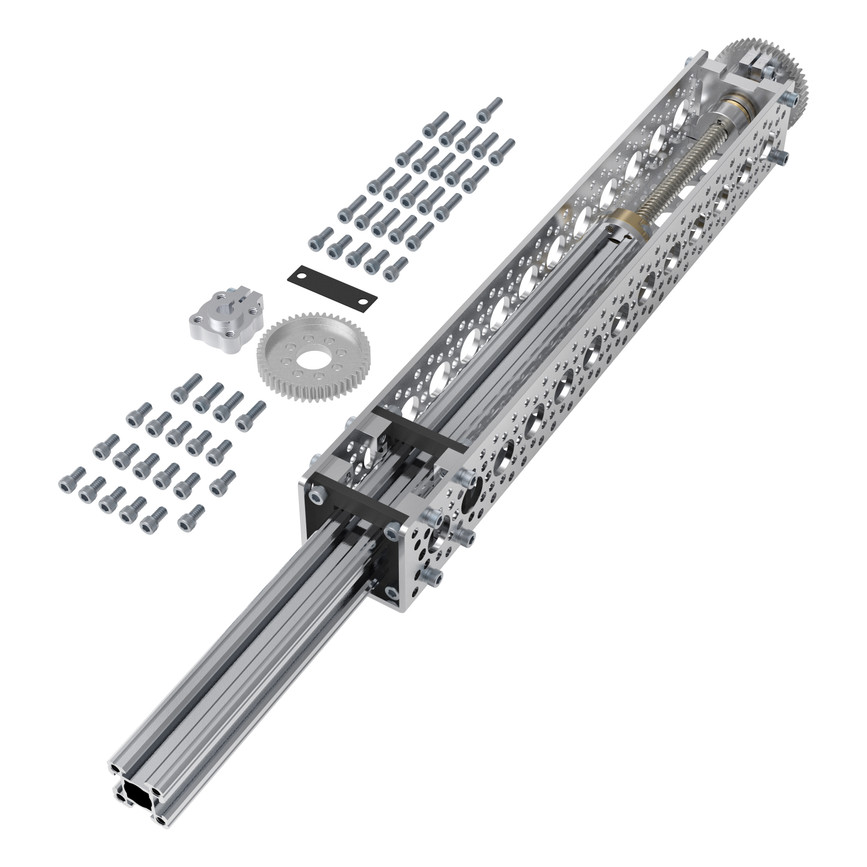

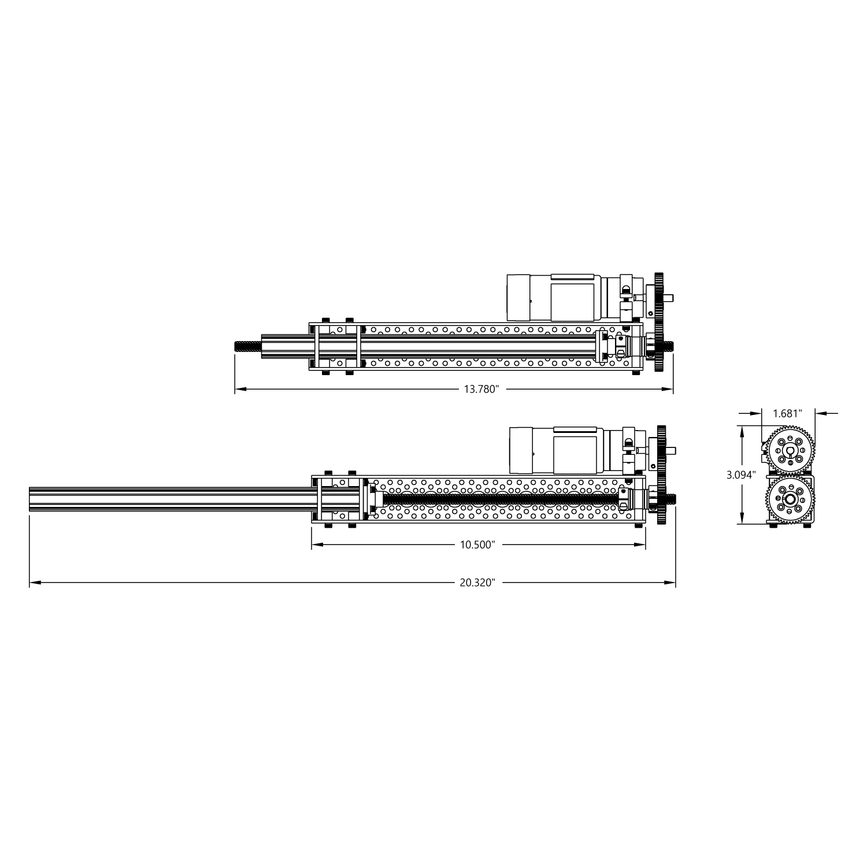

This kit comes with all mechanical pieces to create a linear actuator with a 7.4" overall stroke length.  The U-Channel serves as the outside framework and the X-Rail as the extension tube.  The X-Rail is supported by a pair of acetal plates able to be mounted anywhere along the channel, changing the overall extension length and amount of lateral support they provide.  The 48 tooth gear, which mounts to a motor, drives the 48 tooth gear mounted to the lead screw to create a compact 1:1 ratio.  All you need to complete the actuator is a motor and a motor mount.  The kit comes complete with a step-by-step assembly guide and breaks the build down into nine simple steps.

We recommend the 5.2:1 ratio goBILDA 5202 Series Yellow Jacket Planetary Gear Motor (mounted with a 555176). This motor provides enough torque to lift 50lbs at a swift 6"/sec!

Kit Includes:

Qty SKU Product Description
1 535094 8mm Bore Side Tapped Pillow Block
1 545315 8mm Lead Screw Nut, 0.770" Pattern
1 545372 0.125" Hub Spacer
1 545618 6mm (0.770 inch) Clamping D-Hub
1 545624 8mm (0.770") Clamping Hub
1 565042 10.50" Long X-Rail
1 585452 10.50" Aluminum Channel
2 585470 90° Dual Side Mount A (2 pack)
1 585690 X-Rail Slide Plate A (2 pack)
1 585692 Plastic Spacer for 555176
2 615190 48T, 32P, 1/2" Bore Aluminum Gear
1 632106 .250 in L x 6-32 Zinc-Plated Alloy Steel Socket Head Cap Screw (25 pk)
1 632108 .3125 in L x 6-32 Zinc-Plated Alloy Steel Socket Head Cap Screw (25 pk)
1 632112 .4375 in L x 6-32 Zinc-Plated Alloy Steel Socket Head Cap Screw (25 pk)
2 1613-0516-0008 8mm Thrust Ball Bearing
1 3504-0804-2109 3504 Series Lead Screw Clamping Collar (8mm Lead, 4 Start, 21mm OD, 9mm Length)
1 3501-0804-0300  3501 Series Lead Screw (8mm Lead, 4 Start, 300mm Length)


Weight 1.84 lbs
