TT Right Angle Gear Motor Mount

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.

Consider This Alternative:

While its mounting holes are goBILDA® (metric) instead of Actobotics® (imperial), please consider this otherwise similar alternative.

Acetal Plastic Mount for TT Right Angle Gear Motor (1-1)

goBILDA

1704-0001-0001
Acetal Plastic Mount for TT Right Angle Gear Motor (1-1)
$1.99
$1.49
Discontinued

Currently Sold Out

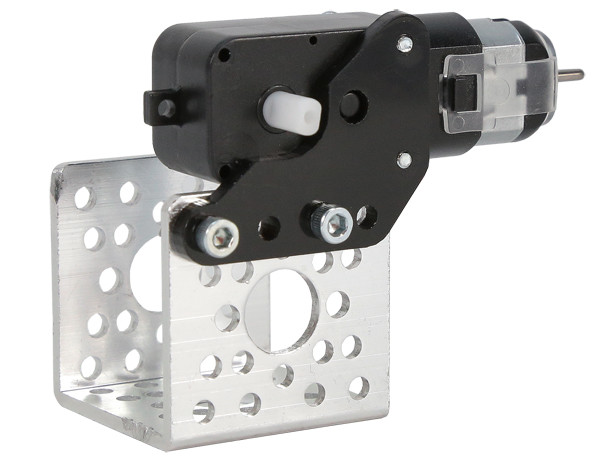

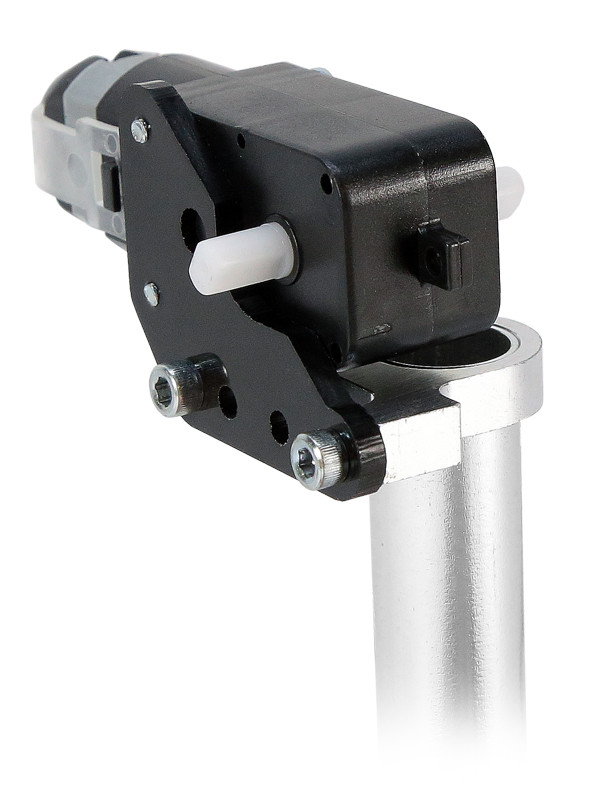

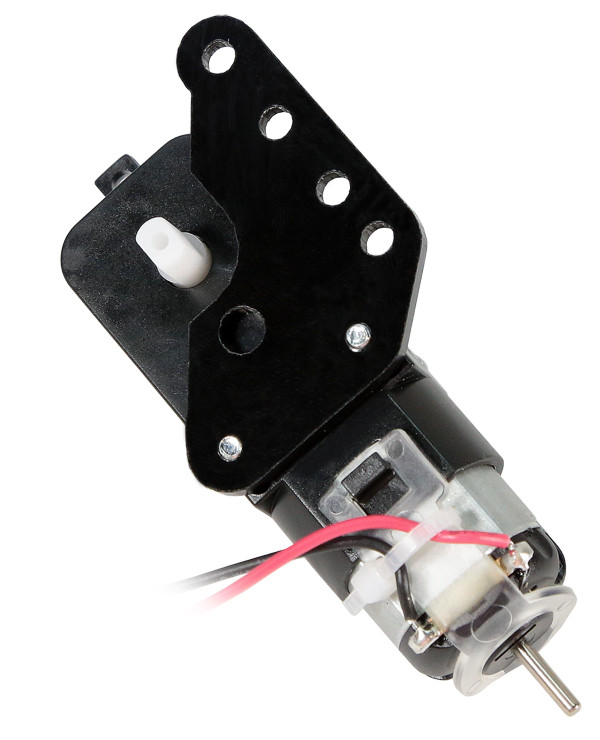

This handy little bracket provides a simple way to fasten a TT Gear Motor to an Actobotics part.  Three of the four holes are on the 0.77" pattern (measuring 0.385" between the holes) while the fourth hole is placed 1.061" from the first hole to be on the 1.5" pattern.  The included 4-40 screws will pass through the holes in the motor housing and thread into the acetal plate for a good solid hold.

Downloads

Specs

Material Acetal
Weight 0.20 oz (5.6g)
