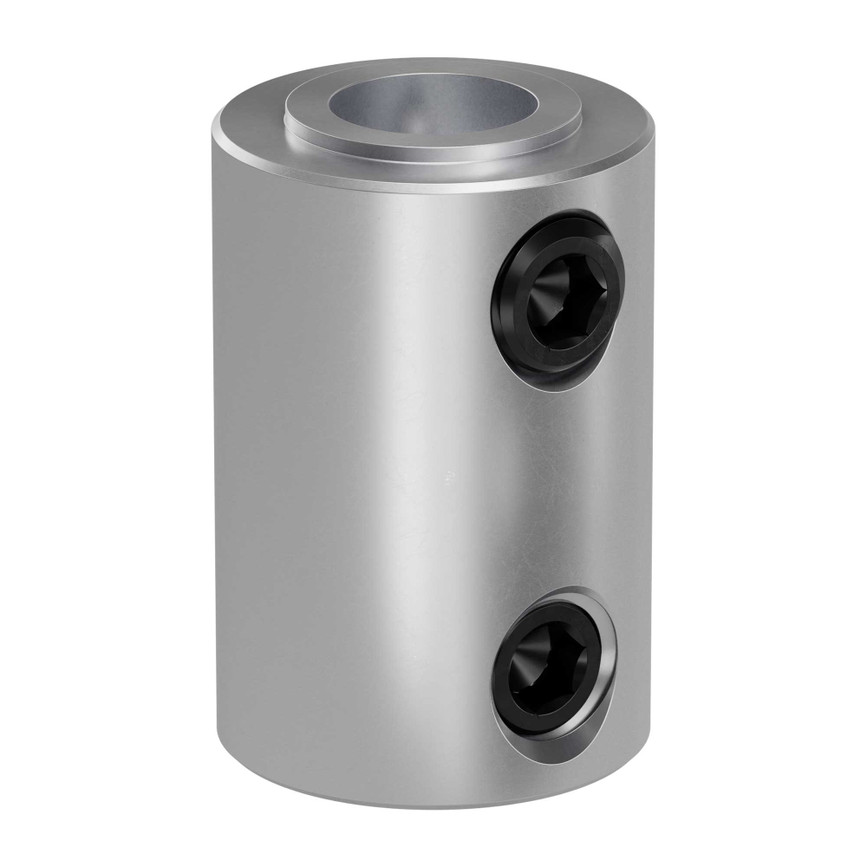

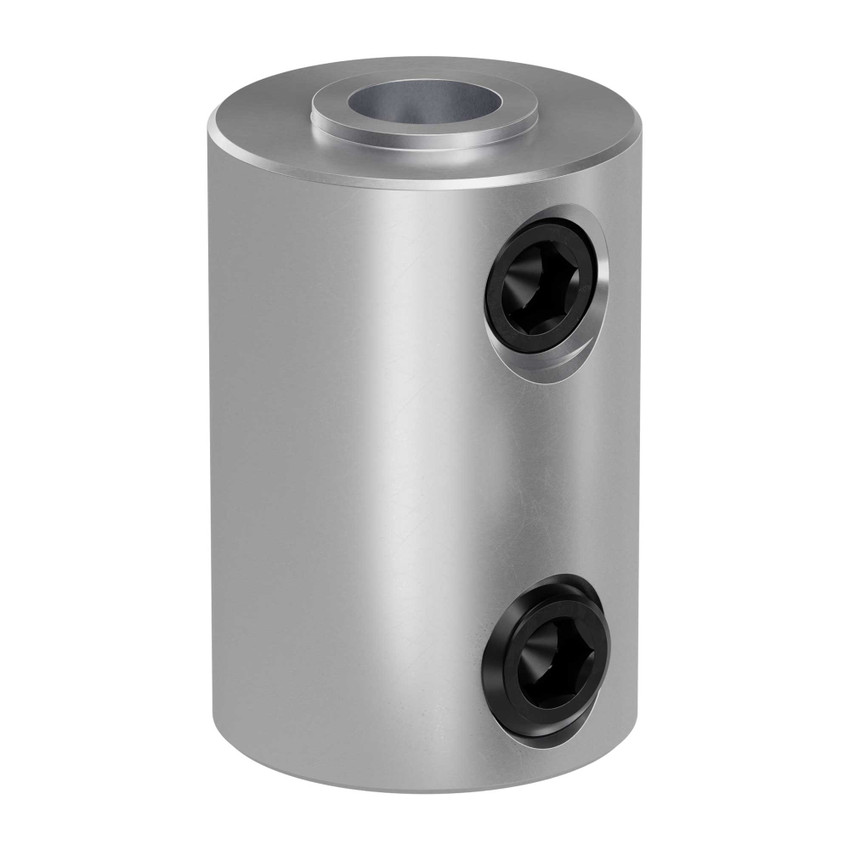

Set-Screw Shaft Coupler (3/16" Round Bore to 1/4" Round Bore)

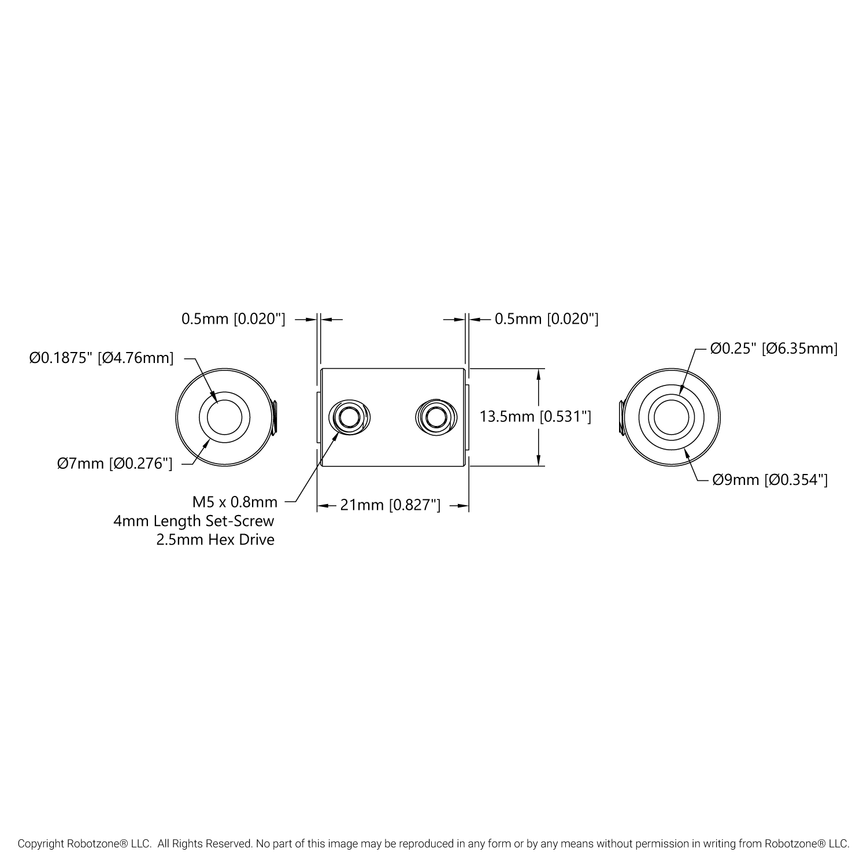

This set-screw coupler allows you to connect 3/16” diameter shafting to 1/4” diameter shafting. Each end of the coupler has an M5 set-screw to secure the shaft in place. Set-screw couplers are excellent in low-clearance applications.

As an added feature, this coupler has a built-in shim at each end. This allows the coupler to run against a bearing without contacting the outside race.



Weight 18g
Material Steel
Finish Zinc-Plated
